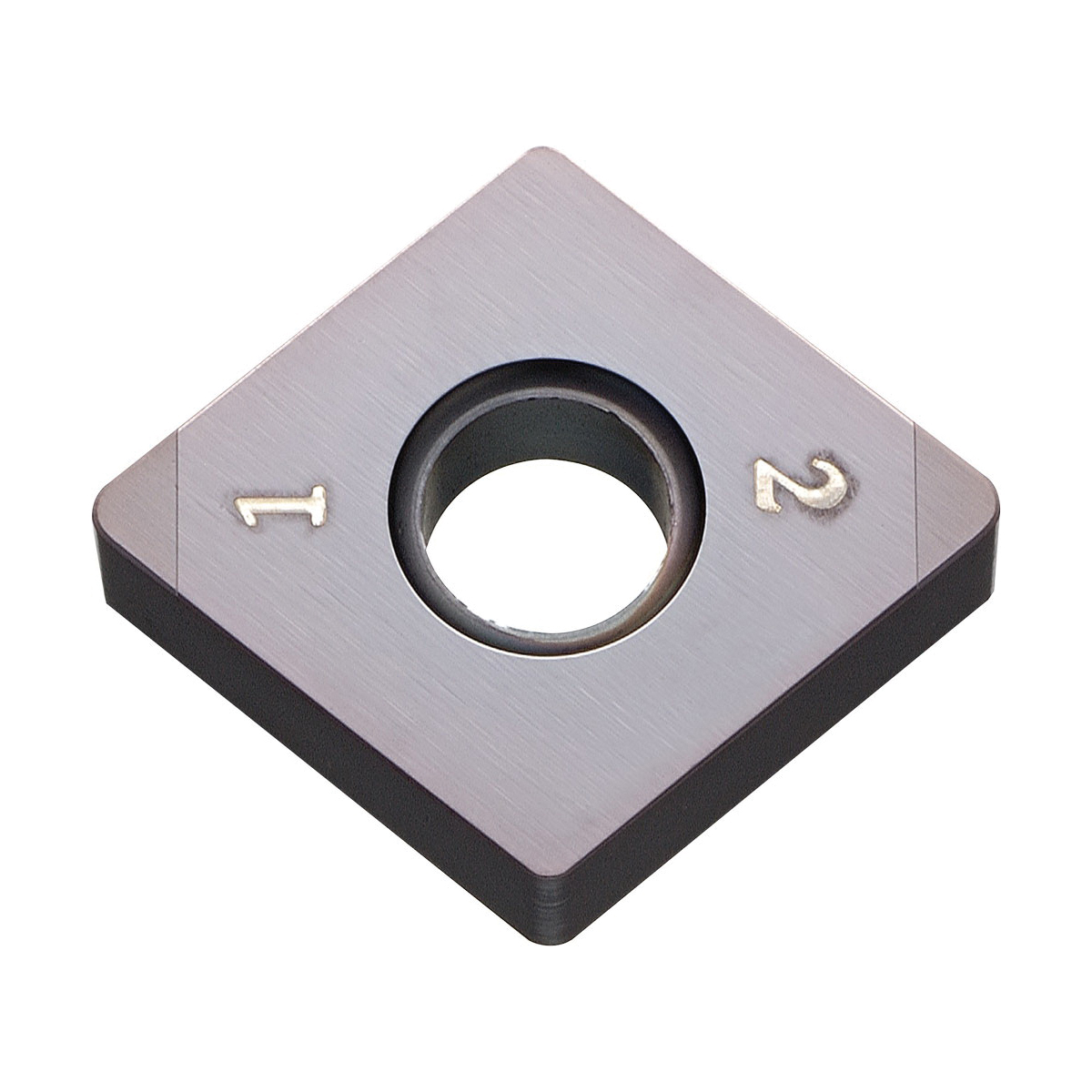

CNGA434S00245MEPKBN05M TURNING INSERT

CNGA434S00245MEPKBN05M TURNING INSERT

KYOCTBN01473 TBN01473
67.09 / EA
http://schema.org/OutOfStock
CNGA434S00245MEPKBN05M TURNING INSERT
  • Applicable Materials: Hardened Material
  • Corner Radius: 1/16in
  • Hand Direction: Neutral
  • Hole Diameter: 0.2031in
  • Included Angle: 80°
  • Inscribed Circle: 1/2in
  • Insert Size: #434
  • Insert Style: CNGA
  • ISO Code: CNGA120416S00545MEP
  • Material: CBN
  • Material Grade: H
  • Rake: Negative
  • Relief Angle: 0°
  • Seat Size: 12
  • Shape: Rhombic
  • Surface Treatment: PVD-MEGACOAT
  • Thickness: 3/16in
  • Type: 2-Cutting Edge
  • ANSI Code: CNGA434S00245MEPKBN05M
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: KBN05M
  • Manufacturer Name: KYOCERA Precision Tools
QTY
Add to List
  • Application
  • Item Features
  • Standards
External Turning, Facing, Boring and Internal Facing Applications
  • Heat-resistant MEGACOAT on highly heat-resistant CBN substrate
  • High speed finishing of hardened steel
  • Without chipbreaker
  • Multi-edge with 2 cutting edges
ECCN: EAR99
