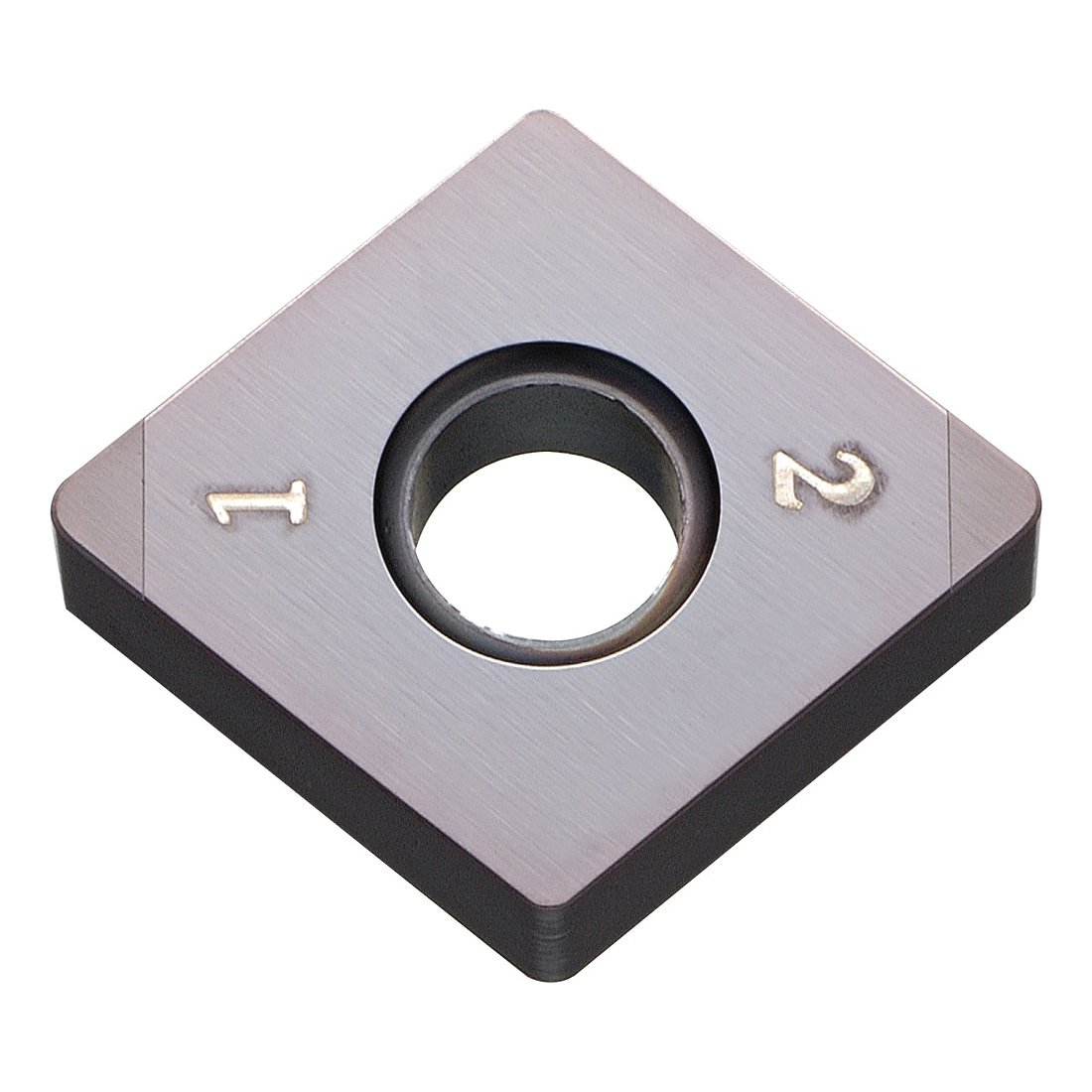

CNGA431S00245MEPKBN05M TURNING INSERT
CNGA431S00245MEPKBN05M TURNING INSERT
KYOCTBN01470
TBN01470
67.09
/ EA
http://schema.org/OutOfStock
/Product/KYOCTBN01470
- Applicable Materials: Hardened Materials
- Chipbreaker: MEP
- Corner Radius: 1/64in
- Hand Direction: Neutral
- Hole Diameter: 0.203in
- Included Angle: 80°
- Inscribed Circle: 1/2in
- Insert Size: 431
- Insert Style: CNGA
- ISO Code: CNGA120404S00545MEP KBN05M
- Material: CBN
- Material Grade: H
- Rake: Negative
- Relief Angle: 0°
- Seat Size: 12
- Shape: Diamond
- Surface Treatment: MEGACOAT
- Thickness: 3/16in
- Type: Multi-Edge
- ANSI Code: CNGA431S00245MEP KBN05M
- Country of Origin: JP
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Grade: KBN05M
- Manufacturer Name: KYOCERA Precision Tools
- Application
- Item Features
Finishing and General Turning
- Wide range of applications for hardened steel cutting
- New technology to achieve superior wear and fracture resistance
- First choice for carburizing hardened materials
- MEP chipbreaker - sharp cutting
- Prevents crater wear
- High speed and continuous machining
- Chamfered and honed cutting edge
- KBN05M grade heat resistant MEGACOAT on highly heat resistant CBN substrate
- High speed finishing of hardened steel
