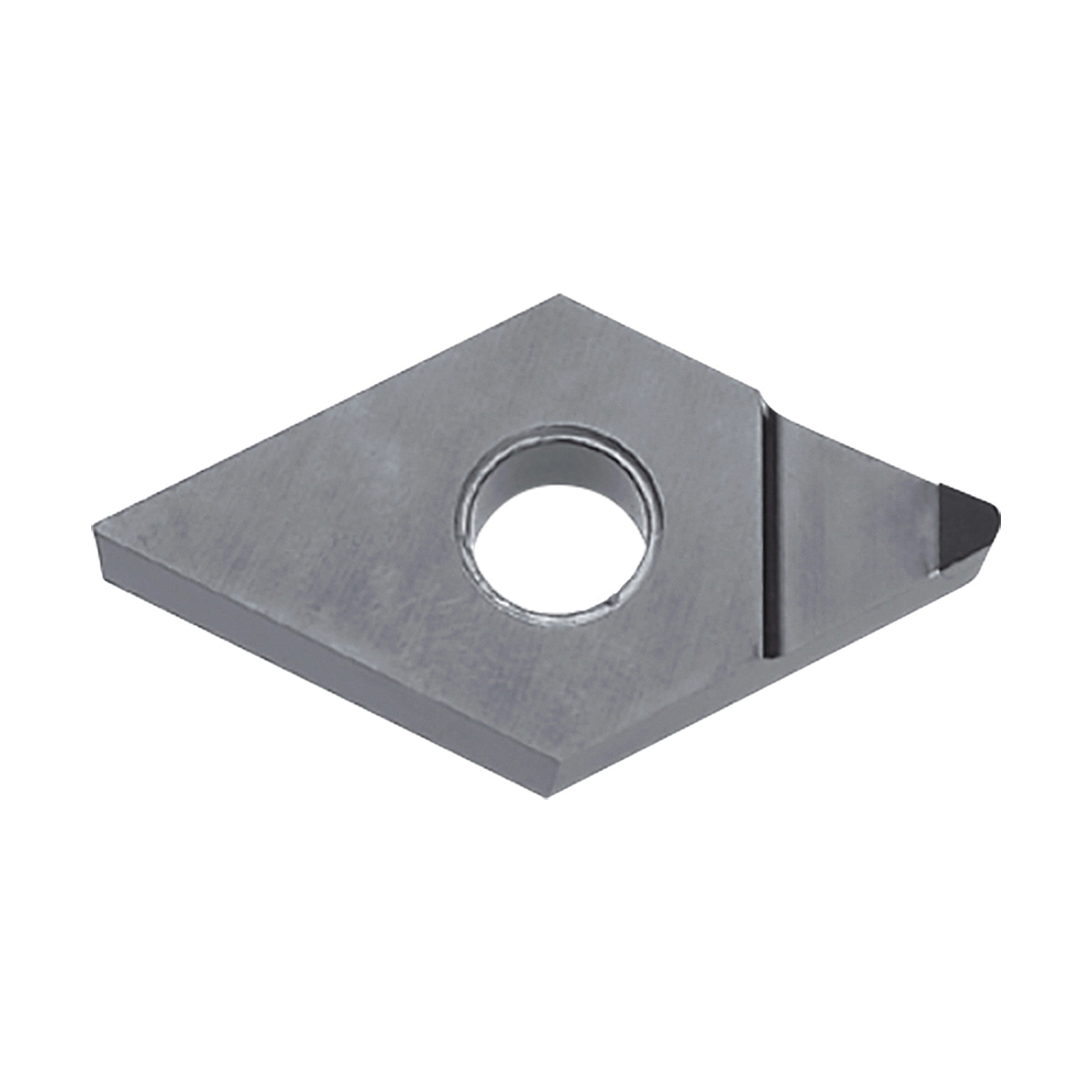

DNMM432MSEKPD010 TURNING INSERT

DNMM432MSEKPD010 TURNING INSERT

KYOCTBE02412 TBE02412
53.29 / EA
http://schema.org/OutOfStock
DNMM432MSEKPD010 TURNING INSERT
  • Applicable Materials: Non-Ferrous Materials and Titanium Alloy
  • Corner Radius: 0.0315in
  • Hand Direction: Neutral
  • Hole Diameter: 0.2031in
  • Included Angle: 55°
  • Inscribed Circle: 1/2in
  • Insert Size: #432
  • Insert Style: DNMM
  • ISO Code: DNMM150408M-SE
  • Material: PCD
  • Material Grade: N, S
  • Rake: Negative
  • Relief Angle: 0°
  • Seat Size: 15
  • Shape: Diamond
  • Surface Treatment: UNCOATED
  • Thickness: 0.1874in
  • Type: 1-Cutting Edge
  • ANSI Code: DNMM432MSEKPD010
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: KPD010
  • Manufacturer Name: KYOCERA Precision Tools
  • Series: ISOI
QTY
Add to List
  • Application
  • Item Features
  • Standards
Boring, Copying and External Turning Applications
  • Small edge with 1-cutting edges
  • Good wear resistance and toughness, good grind ability
  • General purpose, high speed cutting of aluminum alloy, non-ferrous metals and non-metals including plastics, fiberglass, carbide and ceramics
