KYOCERA PRECISION TOOLS

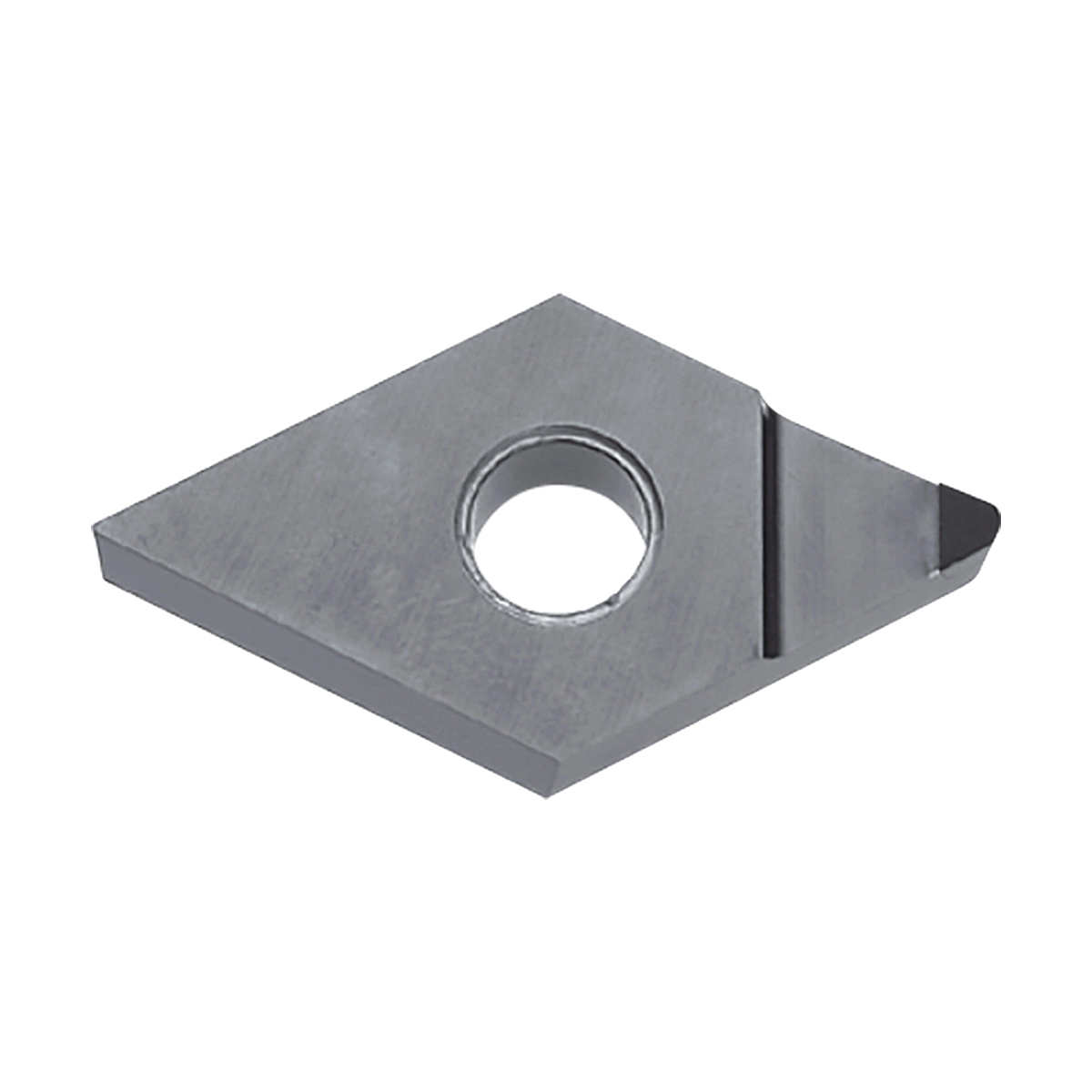

DNMM431MSEKPD010 TURNING INSERT

DNMM431MSEKPD010 TURNING INSERT

KYOCTBE02411 TBE02411
53.29 / EA
http://schema.org/OutOfStock
DNMM431MSEKPD010 TURNING INSERT
  • Applicable Materials: Non-Ferrous Metals and Titanium Alloy
  • Corner Radius: 1/64in
  • Hand Direction: Neutral
  • Hole Diameter: 0.2031in
  • Included Angle: 55°
  • Inscribed Circle: 1/2in
  • Insert Size: #431
  • Insert Style: DNMM
  • ISO Code: DNMM150404M-SE
  • Material: PCD
  • Material Grade: N, S
  • Rake: Negative
  • Relief Angle: 0°
  • Seat Size: 15
  • Shape: Rhombic
  • Thickness: 3/16in
  • Type: 1-Cutting Edge
  • ANSI Code: DNMM431MSEKPD010
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: KPD010
  • Manufacturer Name: KYOCERA Precision Tools
QTY
Add to List
  • Application
  • Item Features
  • Standards
External Turning, Copying and Boring Applications
  • Good wear resistance and toughness, good grindability
  • General purpose, high speed cutting of aluminum alloys, non-ferrous metals and non-metals including plastics, fiberglass, carbide and ceramics
  • Small edge with 1 cutting edges
ECCN: EAR99
