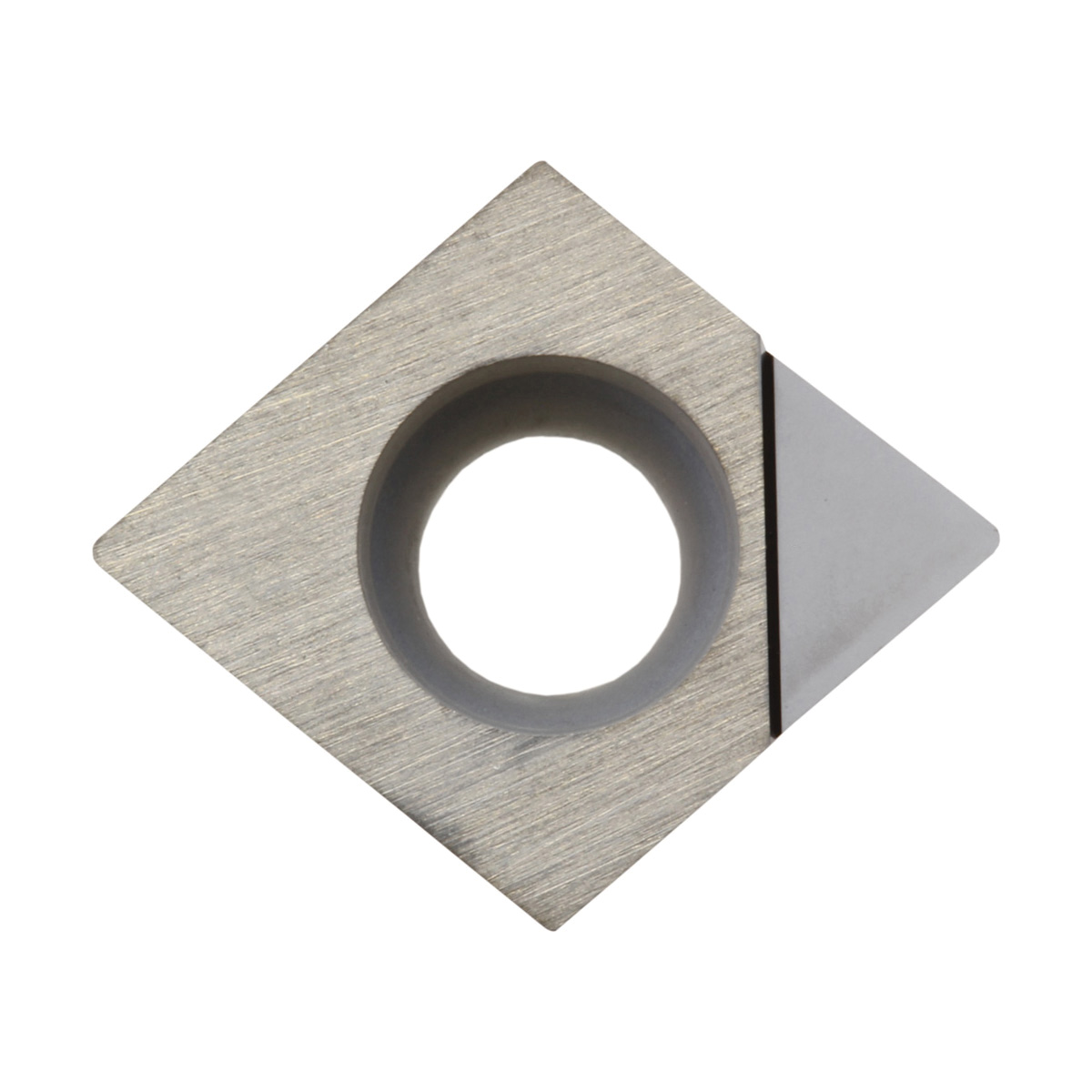

CCMT3251KPD010 TURNING INSERT

CCMT3251KPD010 TURNING INSERT

KYOCTBE00202 TBE00202
163.19 / EA
http://schema.org/OutOfStock
CCMT3251KPD010 TURNING INSERT
  • Applicable Materials: Non-Ferrous Materials and Titanium Alloy
  • Corner Radius: 0.0157in
  • Hand Direction: Neutral
  • Hole Diameter: 0.1732in
  • Included Angle: 80°
  • Inscribed Circle: 3/8in
  • Insert Size: #3251
  • Insert Style: CCMT
  • ISO Code: CCMT09T304
  • Material: PCD
  • Material Grade: N, S
  • Rake: Positive
  • Relief Angle: 7°
  • Seat Size: 9
  • Shape: Diamond
  • Surface Treatment: UNCOATED
  • Thickness: 0.1563in
  • Type: 1-Cutting Edge
  • ANSI Code: CCMT3251KPD010
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: KPD010
  • Manufacturer Name: KYOCERA Precision Tools
  • Series: ISOI
QTY
Add to List
  • Application
  • Item Features
  • Standards
Boring, External Turning, Facing and Internal Facing Applications
  • Good wear resistance and toughness, good grind ability
  • General purpose, high speed cutting of aluminum alloy, non-ferrous metals and non-metals including plastics, fiberglass, carbide and ceramics
