KYOCERA PRECISION TOOLS

CPMH3202KPD010 TURNING INSERT

CPMH3202KPD010 TURNING INSERT

KYOCTBE00145 TBE00145
179.51 / EA
http://schema.org/OutOfStock

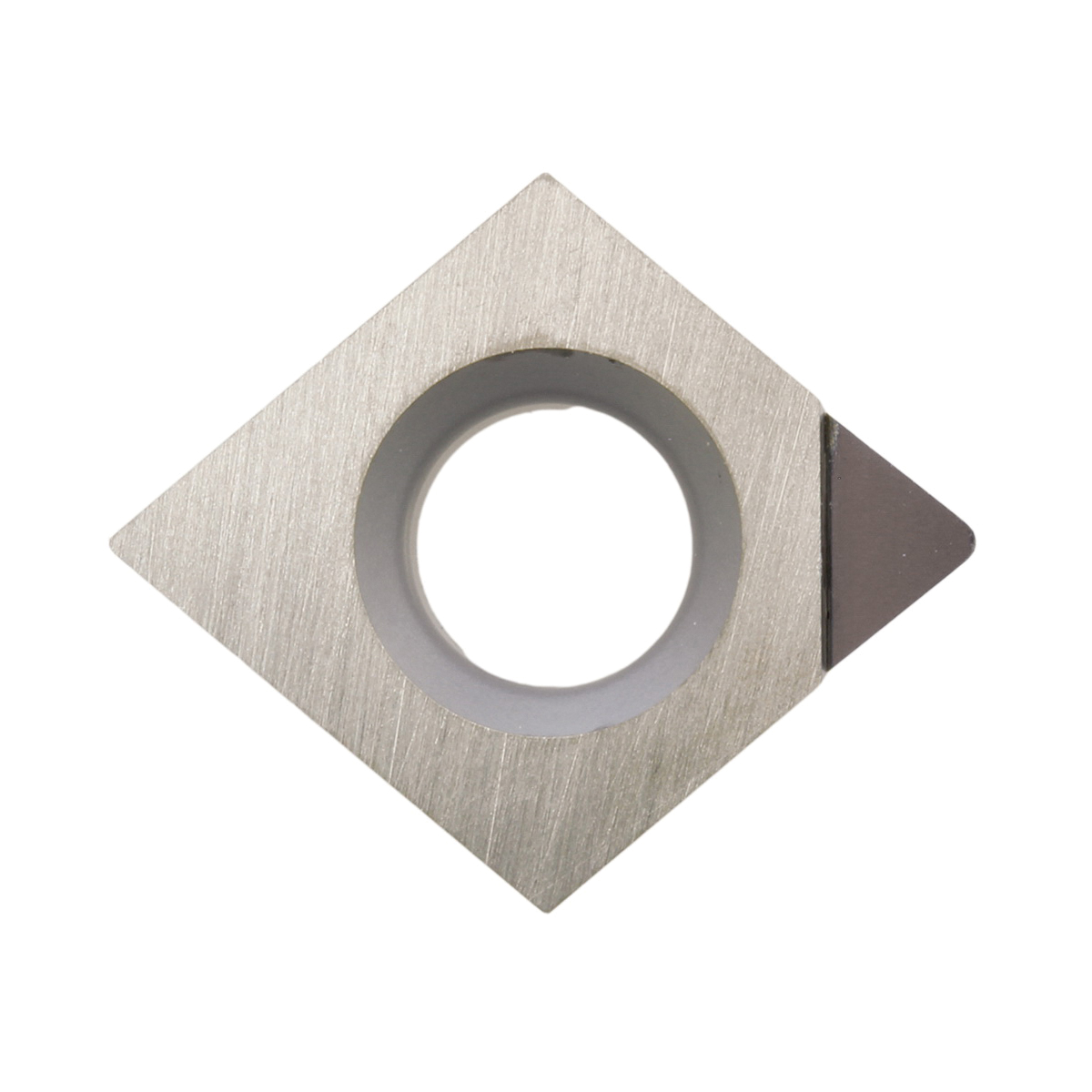

CPMH3202KPD010 TURNING INSERT
  • Applicable Materials: Non-Ferrous Metals and Titanium Alloy
  • Corner Radius: 0.0039in
  • Hand Direction: Neutral
  • Hole Diameter: 0.1772in
  • Included Angle: 80°
  • Inscribed Circle: 3/8in
  • Insert Size: #3202
  • Insert Style: CPMH
  • ISO Code: CPMH090301
  • Material: PCD
  • Material Grade: N, S
  • Rake: Positive
  • Relief Angle: 11°
  • Seat Size: 9
  • Shape: Rhombic
  • Thickness: 1/8in
  • Type: 1-Cutting Edge
  • ANSI Code: CPMH3202KPD010
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: KPD010
  • Manufacturer Name: KYOCERA Precision Tools
QTY
Add to List
  • Application
  • Item Features
  • Standards
Boring and Internal Facing Applications
  • Good wear resistance and toughness, good grindability
  • General purpose, high speed cutting of aluminum alloys, non-ferrous metals and non-metals including plastics, fiberglass, carbide and ceramics
ECCN: EAR99
