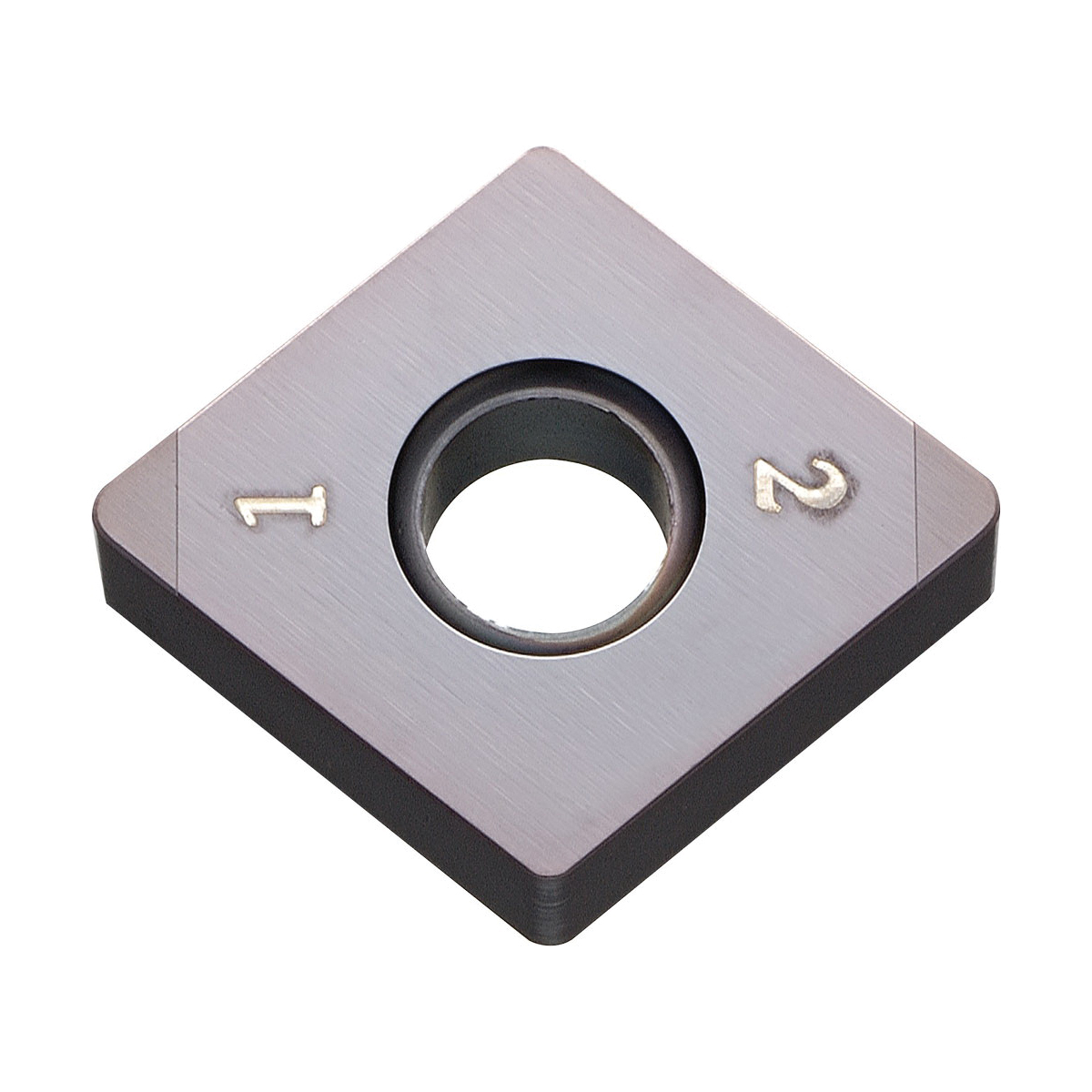

CNGA431S00525MEKBN35M TURNING INSERT
CNGA431S00525MEKBN35M TURNING INSERT
KYOCTBA01456
TBA01456
67.09
/ EA
http://schema.org/OutOfStock
/Product/KYOCTBA01456
- Applicable Materials: Hardened Material
- Corner Radius: 1/64in
- Hand Direction: Neutral
- Hole Diameter: 0.2031in
- Included Angle: 80°
- Inscribed Circle: 1/2in
- Insert Size: #431
- Insert Style: CNGA
- ISO Code: CNGA120404S01225ME
- Material: Honeycomb CBN
- Material Grade: H
- Rake: Negative
- Relief Angle: 0°
- Seat Size: 12
- Shape: Rhombic
- Surface Treatment: PVD-MEGACOAT
- Thickness: 3/16in
- Type: 2-Cutting Edge
- ANSI Code: CNGA431S00525MEKBN35M
- Country of Origin: US|JP|CN|KR
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Grade: KBN35M
- Manufacturer Name: KYOCERA Precision Tools
- Application
- Item Features
- Standards
External Turning, Facing, Boring and Internal Facing Applications
- Honeycomb structure CBN composite material consisting of wear-resistant CBN (core) and tough CBN (shell)
- Heat-resistant MEGACOAT on tough honeycomb structure CBN
- Stable machining of hardened steel at interrupted machining
- Without chipbreaker
- Multi-edge with 2 cutting edges
ECCN: EAR99
