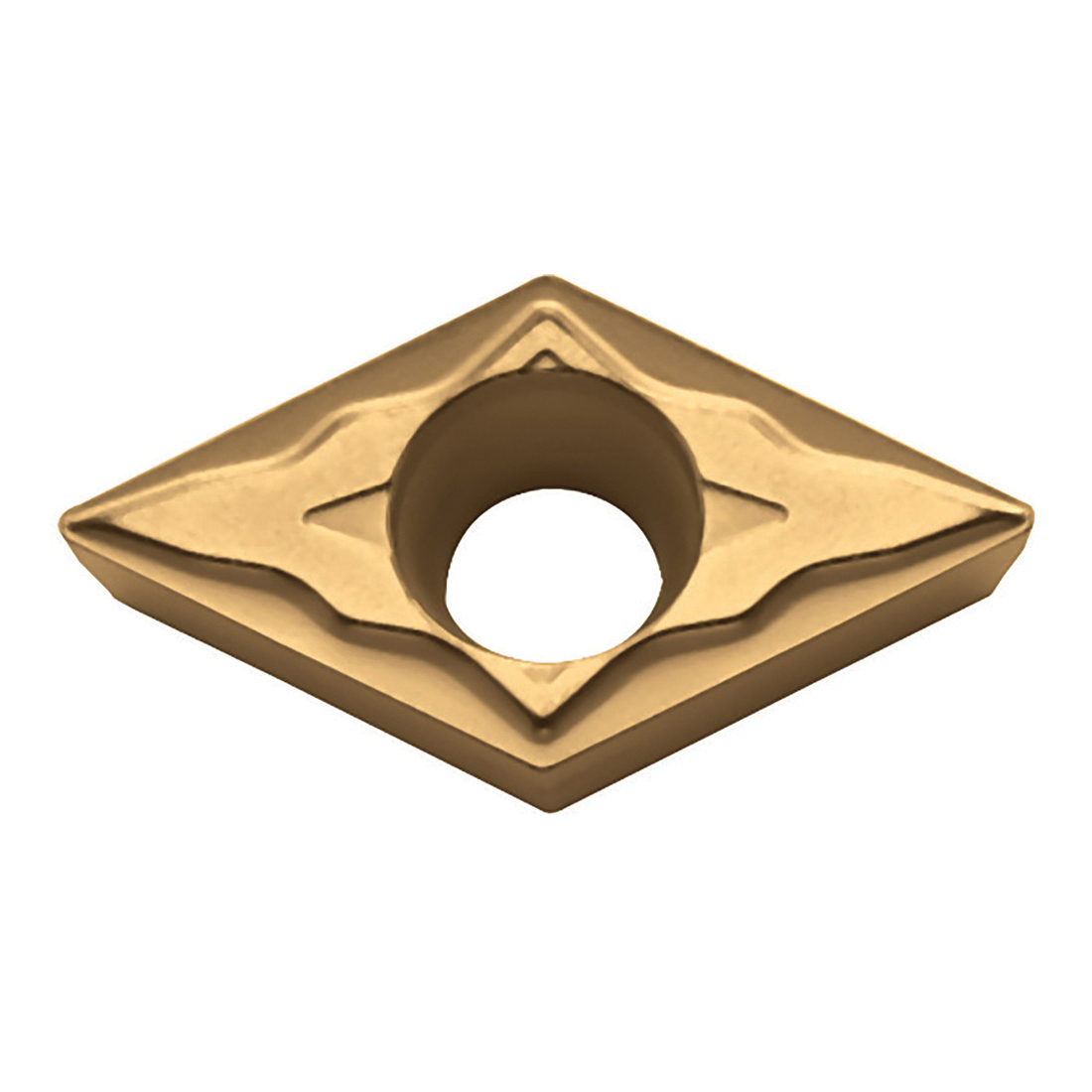

DCMT3251XQCA530 TURNING INSERT
DCMT3251XQCA530 TURNING INSERT
KYOCTAD01890
TAD01890
17.46
/ EA
http://schema.org/OutOfStock
/Product/KYOCTAD01890
- Applicable Materials: Steel
- Chipbreaker: XQ
- Corner Radius: 1/64in
- Hand Direction: Neutral
- Hole Diameter: 0.173in
- Included Angle: 55°
- Inscribed Circle: 3/8in
- Insert Size: 3251
- Insert Style: DCMT
- ISO Code: DCMT11T304XQ CA530
- Material: Carbide
- Material Grade: P
- Rake: Positive
- Relief Angle: 7°
- Seat Size: 11
- Shape: Rhombic
- Surface Treatment: CVD-TiCN/Al2O3/TiN Coated
- Thickness: 5/32in
- Type: 1-Sided
- ANSI Code: DCMT3251XQ CA530
- Country of Origin: JP
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Grade: CA530
- Manufacturer Name: KYOCERA Precision Tools
- Application
- Item Features
Medium Finishing and General Turning
- Longer tool life - excellent wear and fracture resistance
- Prevents layer peeling - strong intra coating adhesion
- Higher adhesion between each layer with improved crystal structure
- Control chipping - higher layer strength
- XQ chipbreaker - wide chip control range and sharp cutting performance
- Suitable for low carbon steel and sticky material
- CA530 grade special tough substrate and tough coating film provides high stability and wear resistance
- General to heavy interrupted machining (stability oriented)
