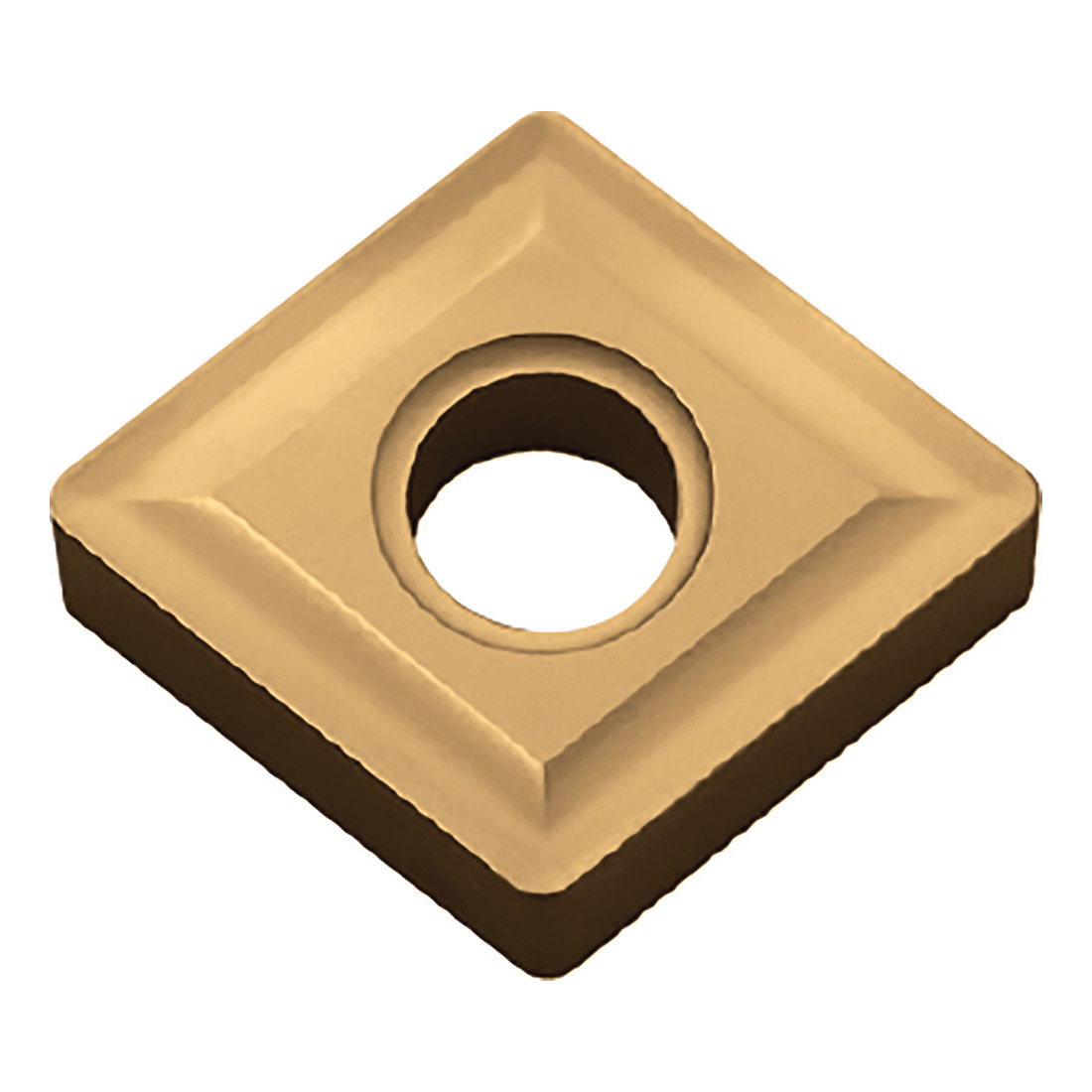

CNMG431CA530 TURNING INSERT

CNMG431CA530 TURNING INSERT

KYOCTAD00700 TAD00700
9.42 / EA
http://schema.org/OutOfStock
CNMG431CA530 TURNING INSERT
  • Applicable Materials: Steel
  • Corner Radius: 1/64in
  • Hand Direction: Neutral
  • Hole Diameter: 0.203in
  • Included Angle: 80°
  • Inscribed Circle: 1/2in
  • Insert Size: 431
  • Insert Style: CNMG
  • ISO Code: CNMG120404 CA530
  • Material: Carbide
  • Material Grade: P
  • Rake: Negative
  • Relief Angle: 0°
  • Seat Size: 12
  • Shape: Diamond
  • Surface Treatment: CVD-TiCN/Al2O3/TiN Coated
  • Thickness: 3/16in
  • Type: 2-Sided
  • ANSI Code: CNMG431 CA530
  • Country of Origin: JP
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: CA530
  • Manufacturer Name: KYOCERA Precision Tools
QTY
Add to List
  • Application
  • Item Features
General Turning Applications
  • Longer tool life - excellent wear and fracture resistance
  • Prevents layer peeling - strong intra coating adhesion
  • Higher adhesion between each layer with improved crystal structure
  • Control chipping - higher layer strength
  • CA530 grade special tough substrate and tough coating film provides high stability and wear resistance
  • General to heavy interrupted machining (stability oriented)
