CCMT 32505GK CA530 TURNING INSERT
CCMT 32505GK CA530 TURNING INSERT
KYOCTAD00485
TAD00485
11.45
/ EA
http://schema.org/OutOfStock
/Product/KYOCTAD00485

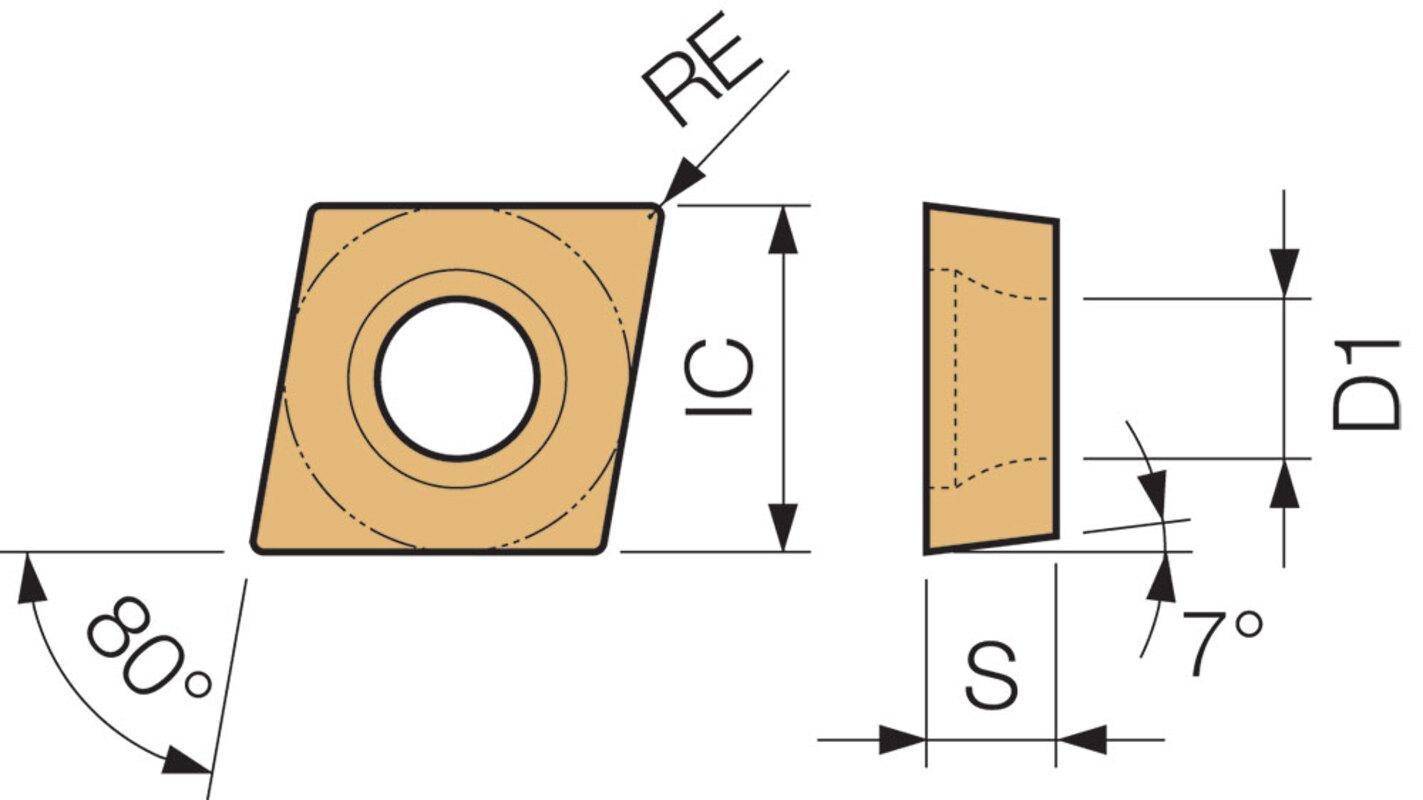

- Applicable Materials: Steel
- Chipbreaker: GK
- Corner Radius: 0.008 in
- Hand Direction: Neutral
- Hole Diameter: 0.173 in
- Included Angle: 80 deg
- Inscribed Circle: 3/8 in
- Insert Size: 32505
- Insert Style: CCMT
- ISO Code: CCMT09T302GK CA530
- Material: Carbide
- Material Grade: P
- Rake: Positive
- Relief Angle: 7 deg
- Shape: Diamond
- Surface Treatment: CVD-TiCN/Al2O3/TiN Coated
- Thickness: 5/32 in
- ANSI Code: CCMT32505GK CA530
- Country of Origin: JP
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Grade: CA530
- Manufacturer Name: KYOCERA Precision Tools
- Application
- Item Features
Medium Finishing and General Turning
- Longer tool life - excellent wear and fracture resistance
- Prevents layer peeling - strong intra coating adhesion
- Higher adhesion between each layer with improved crystal structure
- Control chipping - higher layer strength
- GK chipbreaker - good chip evacuation at wide range by breaker dot and wide chip pocket
- CA530 grade special tough substrate and tough coating film provides high stability and wear resistance
- General to heavy interrupted machining (stability oriented)
