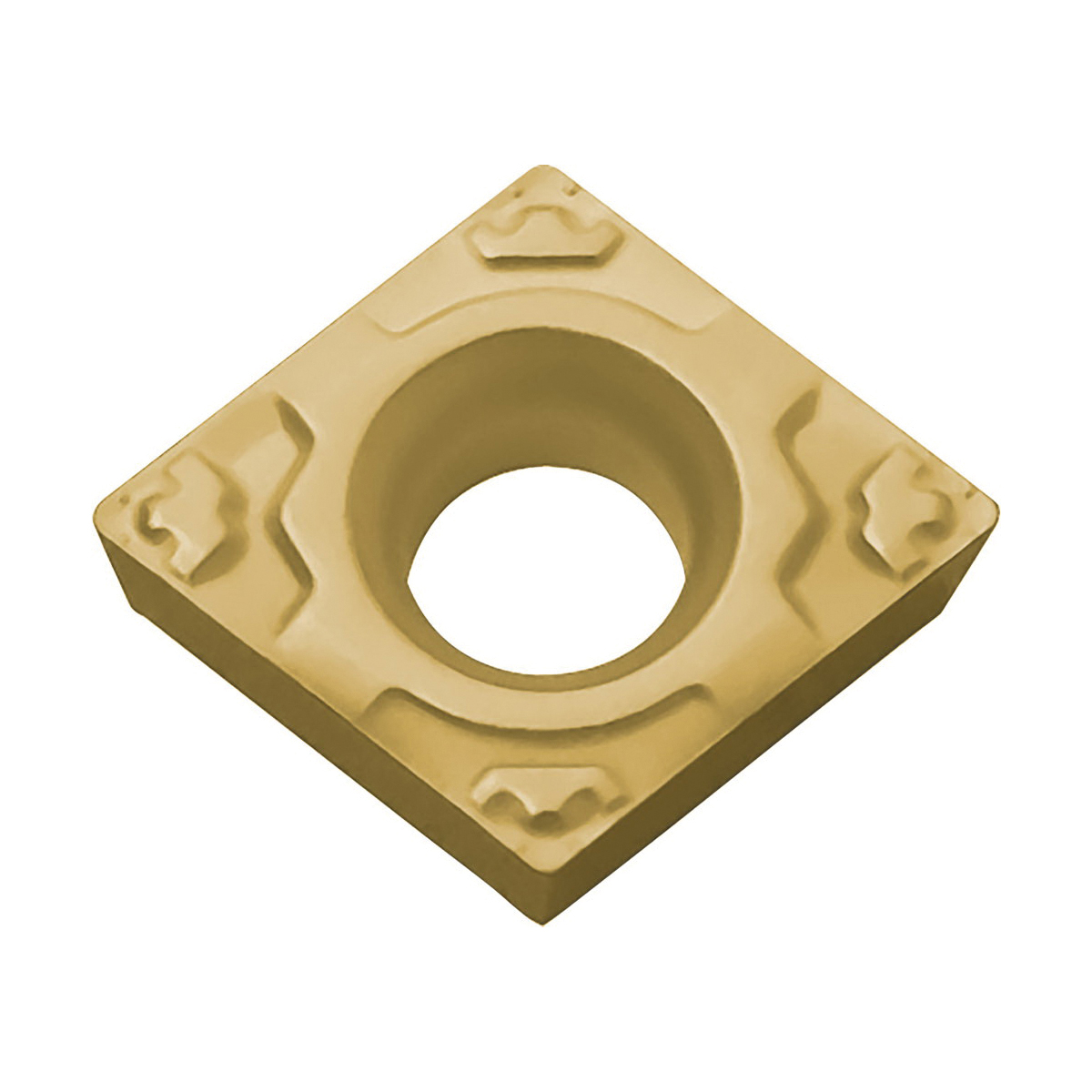

CPMT25151GPCA525 TURNING INSERT

CPMT25151GPCA525 TURNING INSERT

KYOCTAC01440 TAC01440
11.93 / EA
http://schema.org/OutOfStock
CPMT25151GPCA525 TURNING INSERT
  • Applicable Materials: Carbon/Alloy Steel
  • Chipbreaker: GP
  • Corner Radius: 1/64in
  • Hand Direction: Neutral
  • Hole Diameter: 0.1299in
  • Included Angle: 80°
  • Inscribed Circle: 5/16in
  • Insert Size: #25151
  • Insert Style: CPMT
  • ISO Code: CPMT080204GP
  • Material: Carbide
  • Material Grade: P
  • Rake: Positive
  • Relief Angle: 11°
  • Seat Size: 8
  • Shape: Rhombic
  • Surface Treatment: VDC-TiCN/Al2O3/TiN Coated
  • Thickness: 3/32in
  • Type: 2-Cutting Edge
  • ANSI Code: CPMT25151GPCA525
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: CA525
  • Manufacturer Name: KYOCERA Precision Tools
  • Series: CA5
QTY
Add to List
  • Application
  • Item Features
  • Standards
Boring and Internal Facing Applications
  • Special substrate and tough coating film provides high wear and fracture resistance
  • First choice for steel machining
  • Good chip control
ECCN: EAR99
