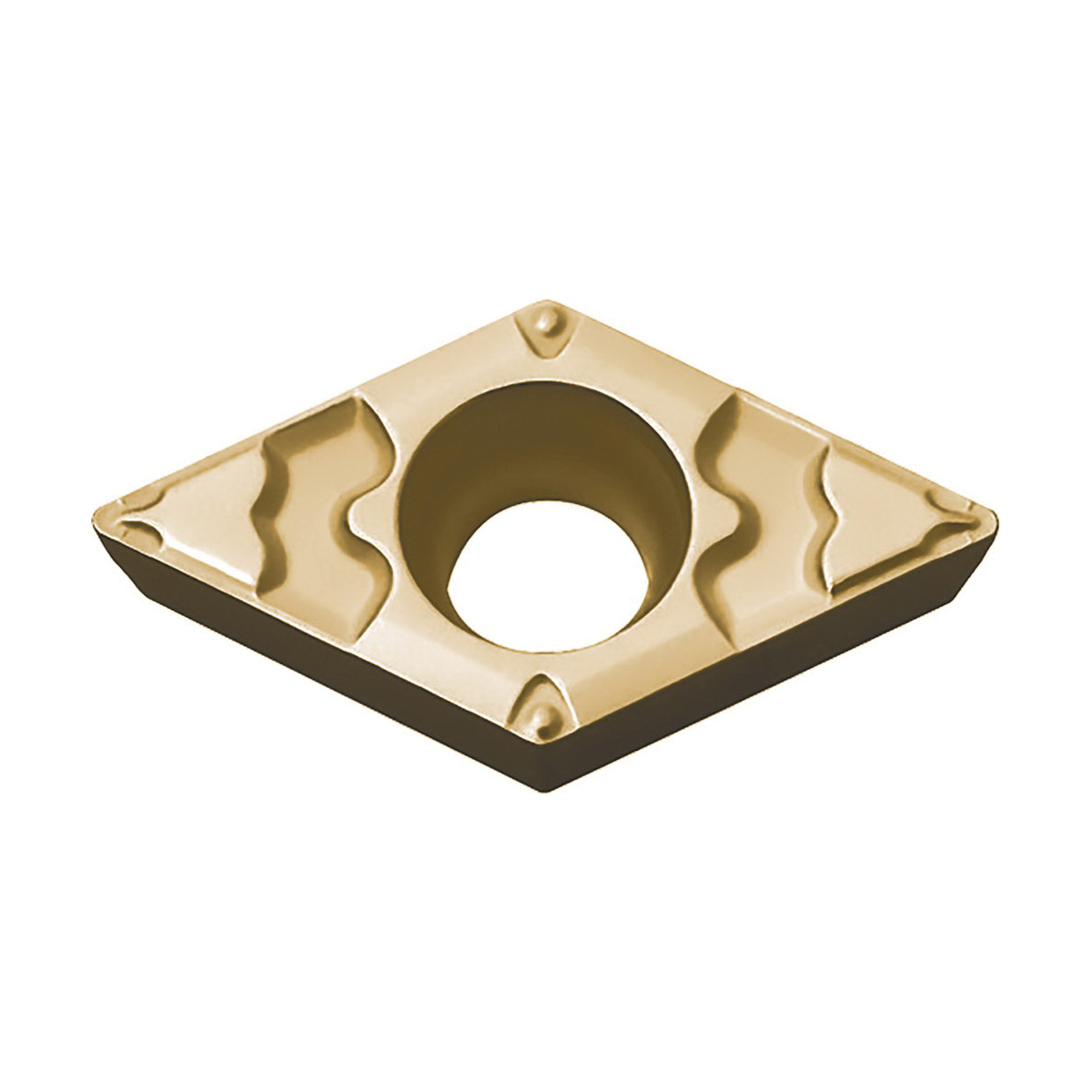

DCMT 3251GP CA515 TURNING INSERT

DCMT 3251GP CA515 TURNING INSERT

KYOCTAB01850 TAB01850
17.46 / EA
http://schema.org/OutOfStock
DCMT 3251GP CA515 TURNING INSERT
  • Applicable Materials: Carbon/Alloy Steel
  • Chipbreaker: GP
  • Corner Radius: 1/64 in
  • Hand Direction: Neutral
  • Hole Diameter: 0.1732 in
  • Included Angle: 55 deg
  • Inscribed Circle: 3/8 in
  • Insert Size: #3251
  • Insert Style: DCMT
  • ISO Code: DCMT11T304GP
  • Material: Carbide
  • Material Grade: P
  • Rake: Positive
  • Relief Angle: 7 deg
  • Seat Size: 11
  • Shape: Rhombic
  • Surface Treatment: VDC-TiCN/Al2O3/TiN Coated
  • Thickness: 5/32 in
  • Type: 2-Cutting Edge
  • ANSI Code: DCMT3251GPCA515
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: CA515
  • Manufacturer Name: KYOCERA Precision Tools
  • Series: CA5
QTY
Add to List
  • Application
  • Item Features
  • Standards
External Turning, Copying and Back Boring Applications
  • Special substrate and tough coating film provides thermal deformation and high wear resistance
  • Continuous to light interrupted steel machining (general use)
  • Good chip control
ECCN: EAR99
