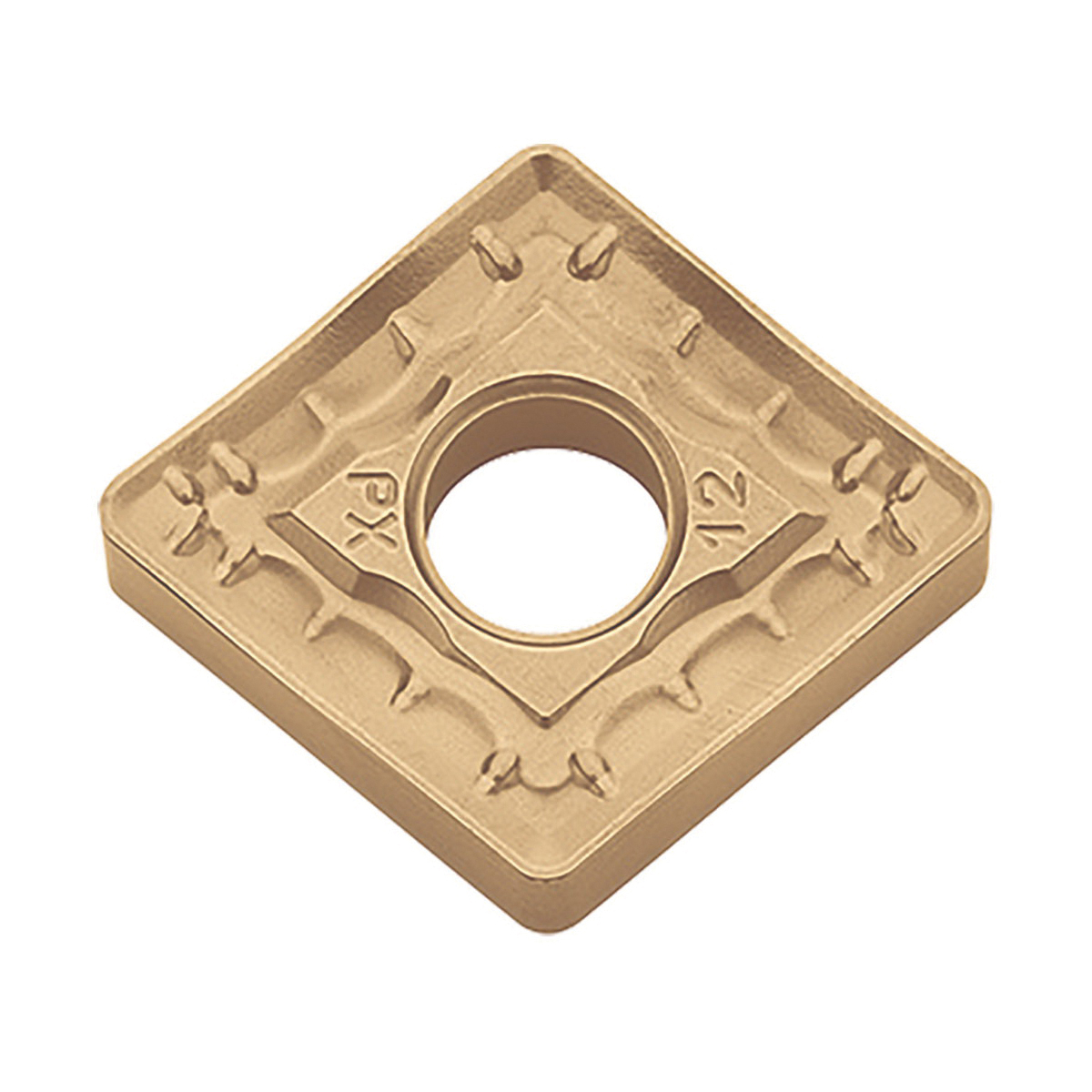

CNMM432PXCA515 TURNING INSERT

CNMM432PXCA515 TURNING INSERT

KYOCTAB01185 TAB01185
16.32 / EA
http://schema.org/OutOfStock
CNMM432PXCA515 TURNING INSERT
  • Applicable Materials: Carbon/Alloy Steel
  • Chipbreaker: PX
  • Corner Radius: 1/32in
  • Hand Direction: Neutral
  • Hole Diameter: 0.2031in
  • Included Angle: 80°
  • Inscribed Circle: 1/2in
  • Insert Size: #432
  • Insert Style: CNMM
  • ISO Code: CNMM120408PX
  • Material: Carbide
  • Material Grade: P
  • Rake: Negative
  • Relief Angle: 0°
  • Seat Size: 12
  • Shape: Rhombic
  • Surface Treatment: VDC-TiCN/Al2O3/TiN Coated
  • Thickness: 3/16in
  • Type: 2-Cutting Edge
  • ANSI Code: CNMM432PXCA515
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: CA515
  • Manufacturer Name: KYOCERA Precision Tools
  • Series: CA5
QTY
Add to List
  • Application
  • Item Features
  • Standards
External Turning, Facing, Boring and Internal Facing Applications
  • High feed rate/single sided with 2 cutting edges
  • Special substrate and tough coating film provides thermal deformation and high wear resistance
  • Continuous to light interrupted steel machining (general use)
  • Roughing and high feed rate operation
  • Low cutting force chipbreaker
ECCN: EAR99
