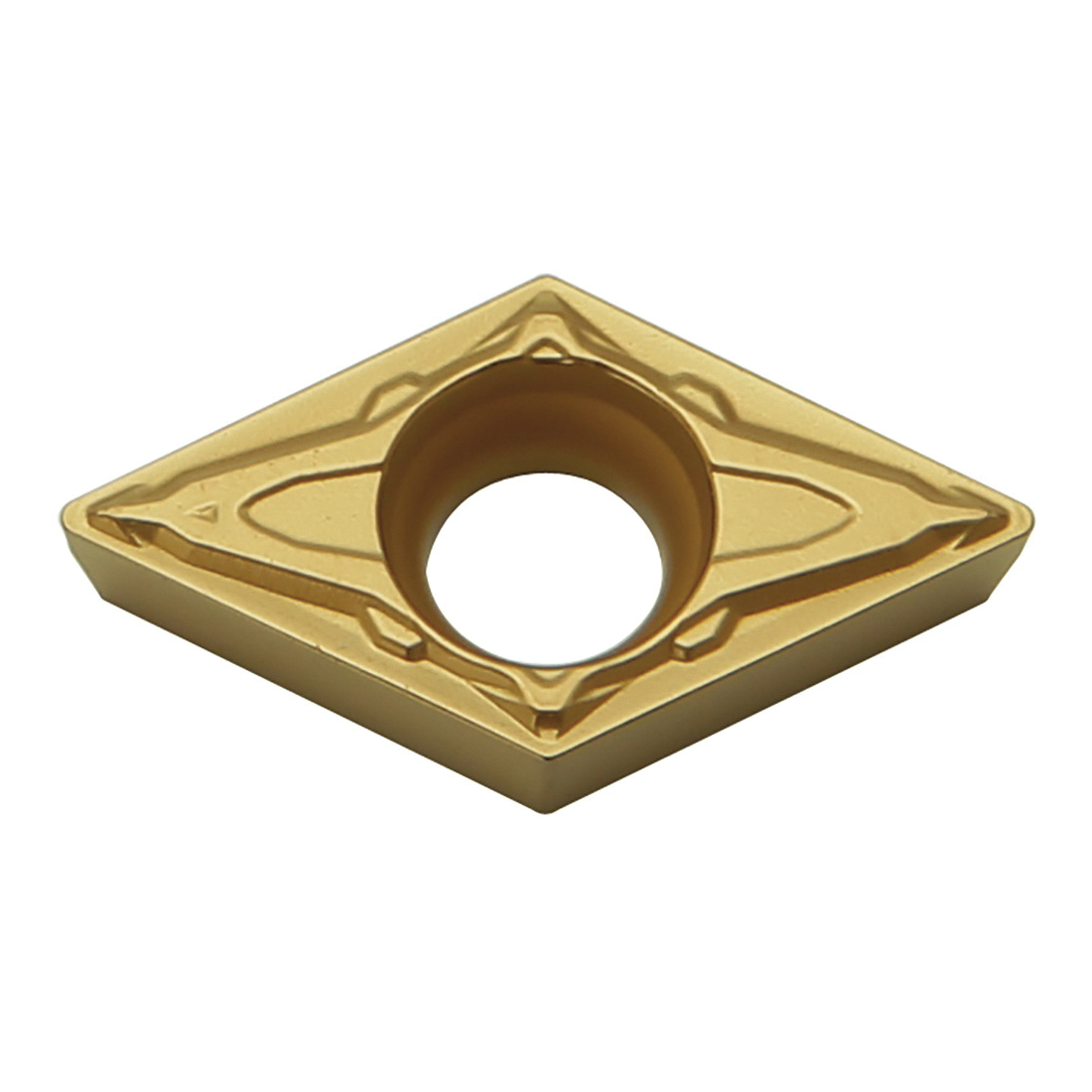

DCMT21505PPCA510 TURNING INSERT
DCMT21505PPCA510 TURNING INSERT
KYOCTAA01796
TAA01796
15.38
/ EA
http://schema.org/OutOfStock
/Product/KYOCTAA01796
- Applicable Materials: Steel
- Chipbreaker: PP
- Corner Radius: 0.008in
- Hand Direction: Neutral
- Hole Diameter: 0.11in
- Included Angle: 55°
- Inscribed Circle: 1/4in
- Insert Size: 21505
- Insert Style: DCMT
- ISO Code: DCMT070202PP CA510
- Material: Carbide
- Material Grade: P
- Rake: Positive
- Relief Angle: 7°
- Seat Size: 7
- Shape: Rhombic
- Surface Treatment: CVD-TiCN/Al2O3/TiN Coated
- Thickness: 3/32in
- Type: 1-Sided
- ANSI Code: DCMT21505PP CA510
- Country of Origin: JP
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Grade: CA510
- Manufacturer Name: KYOCERA Precision Tools
- Application
- Item Features
Finishing and General Turning
- Longer tool life - excellent wear and fracture resistance
- Prevents layer peeling - strong intra coating adhesion
- Higher adhesion between each layer with improved crystal structure
- Control chipping - higher layer strength
- PP chipbreaker - 3-step smart dot structure is applicable to a wide range of feed rates in steel finishing
- Smooth taper cutting edge reduces cutting forces
- CA510 grade special substrate with thermal deformation resistance along with a thick and tough film coating for wear resistance
- High speed and high efficiency steel machining
