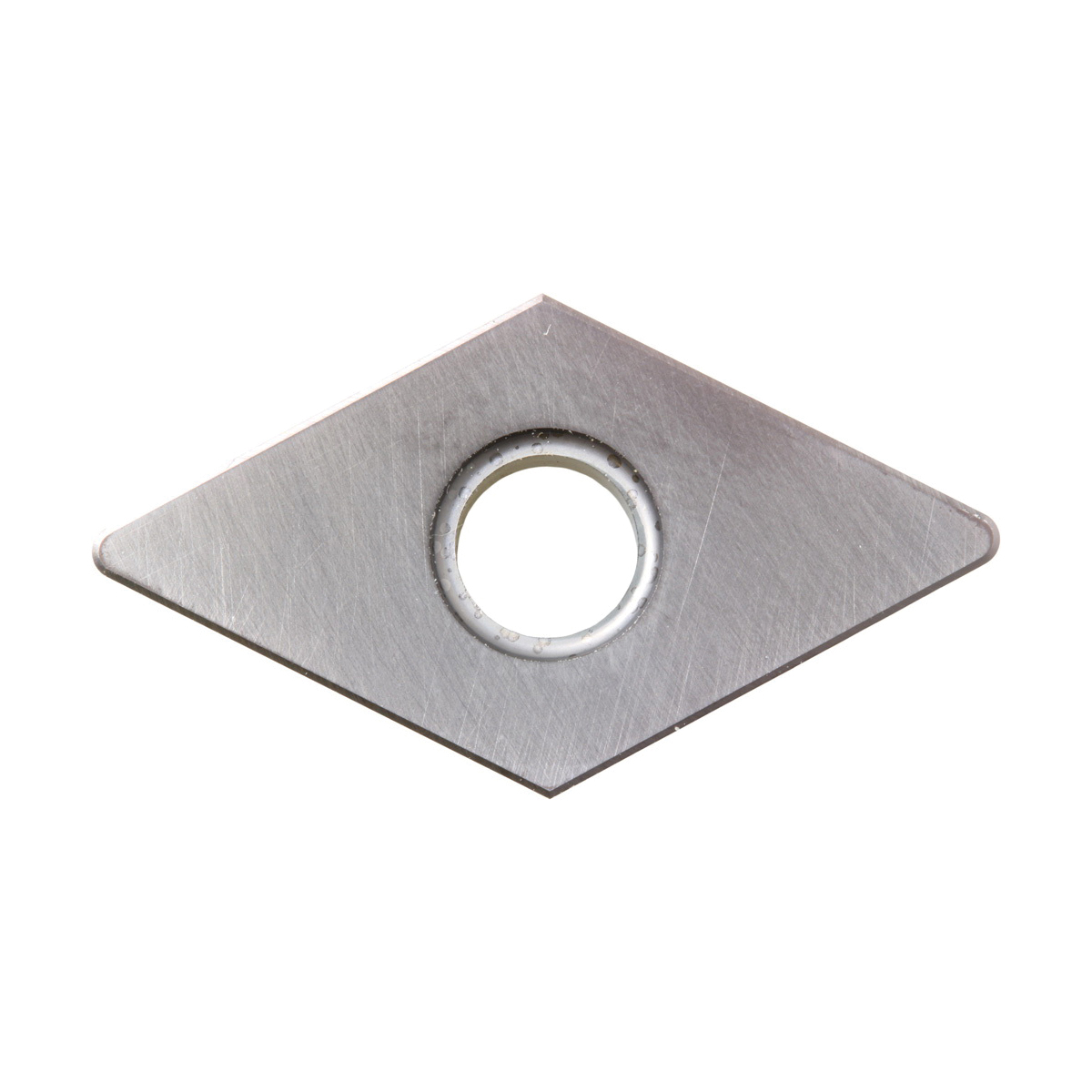

DNGA431TN610 TURNING INSERT

DNGA431TN610 TURNING INSERT

KYOC8864116 8864116
13.81 / EA
http://schema.org/OutOfStock
DNGA431TN610 TURNING INSERT
  • Applicable Materials: Carbon/Alloy Steel
  • Corner Radius: 1/64in
  • Hand Direction: Neutral
  • Hole Diameter: 0.2031in
  • Included Angle: 55°
  • Inscribed Circle: 1/2in
  • Insert Size: #431
  • Insert Style: DNGA
  • ISO Code: DNGA431
  • Material: Cermet
  • Material Grade: P
  • Rake: Negative
  • Relief Angle: 0°
  • Seat Size: 43
  • Shape: Rhombic
  • Surface Treatment: Uncoated/TiCN Coated
  • Thickness: 3/16in
  • Type: 4-Cutting Edge
  • ANSI Code: DNGA431TN610
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: TN610
  • Manufacturer Name: KYOCERA Precision Tools
QTY
Add to List
  • Application
  • Item Features
  • Standards
External Turning, Copying and Boring Applications
  • Three hybrid technology attributes maintain superior surface finish and machining stability
  • Stable machining of steel
  • Without chipbreaker
ECCN: EAR99
