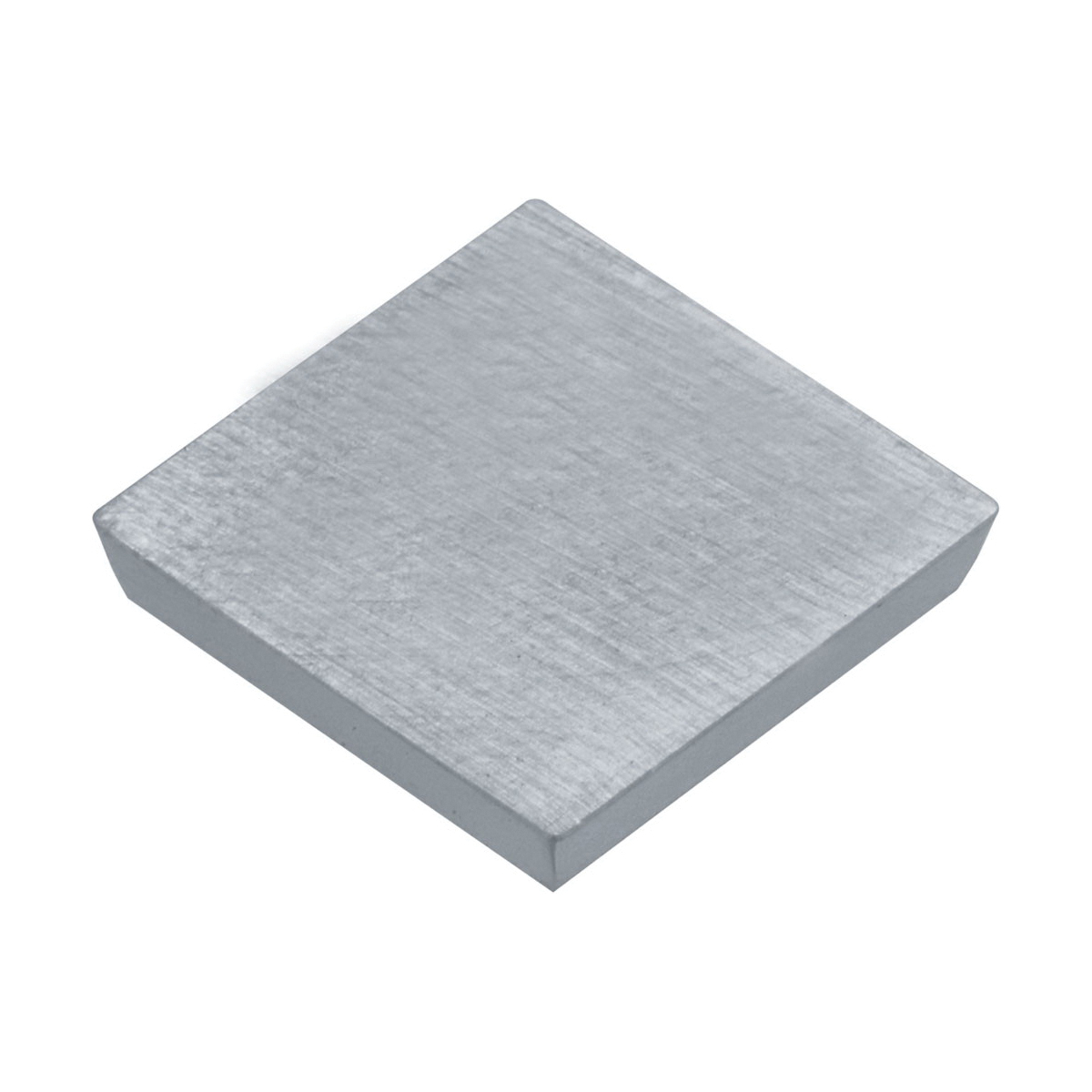

CPG422TN610 TURNING INSERT

CPG422TN610 TURNING INSERT

KYOC8864004 8864004
19.86 / EA
http://schema.org/OutOfStock
CPG422TN610 TURNING INSERT
  • Applicable Materials: Carbon/Alloy Steel
  • Corner Radius: 1/32in
  • Hand Direction: Neutral
  • Included Angle: 80°
  • Inscribed Circle: 1/2in
  • Insert Size: #422
  • Insert Style: CPG
  • ISO Code: CPG422
  • Material: Cermet
  • Material Grade: P
  • Rake: Positive
  • Relief Angle: 11°
  • Seat Size: 42
  • Shape: Rhombic
  • Surface Treatment: Uncoated/TiCN Coated
  • Thickness: 1/8in
  • Type: 2-Cutting Edge
  • ANSI Code: CPG422TN610
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: TN610
  • Manufacturer Name: KYOCERA Precision Tools
QTY
Add to List
  • Application
  • Item Features
  • Standards
External Turning and Facing Applications
  • Three hybrid technology attributes maintain superior surface finish and machining stability
  • Stable machining of steel
ECCN: EAR99
