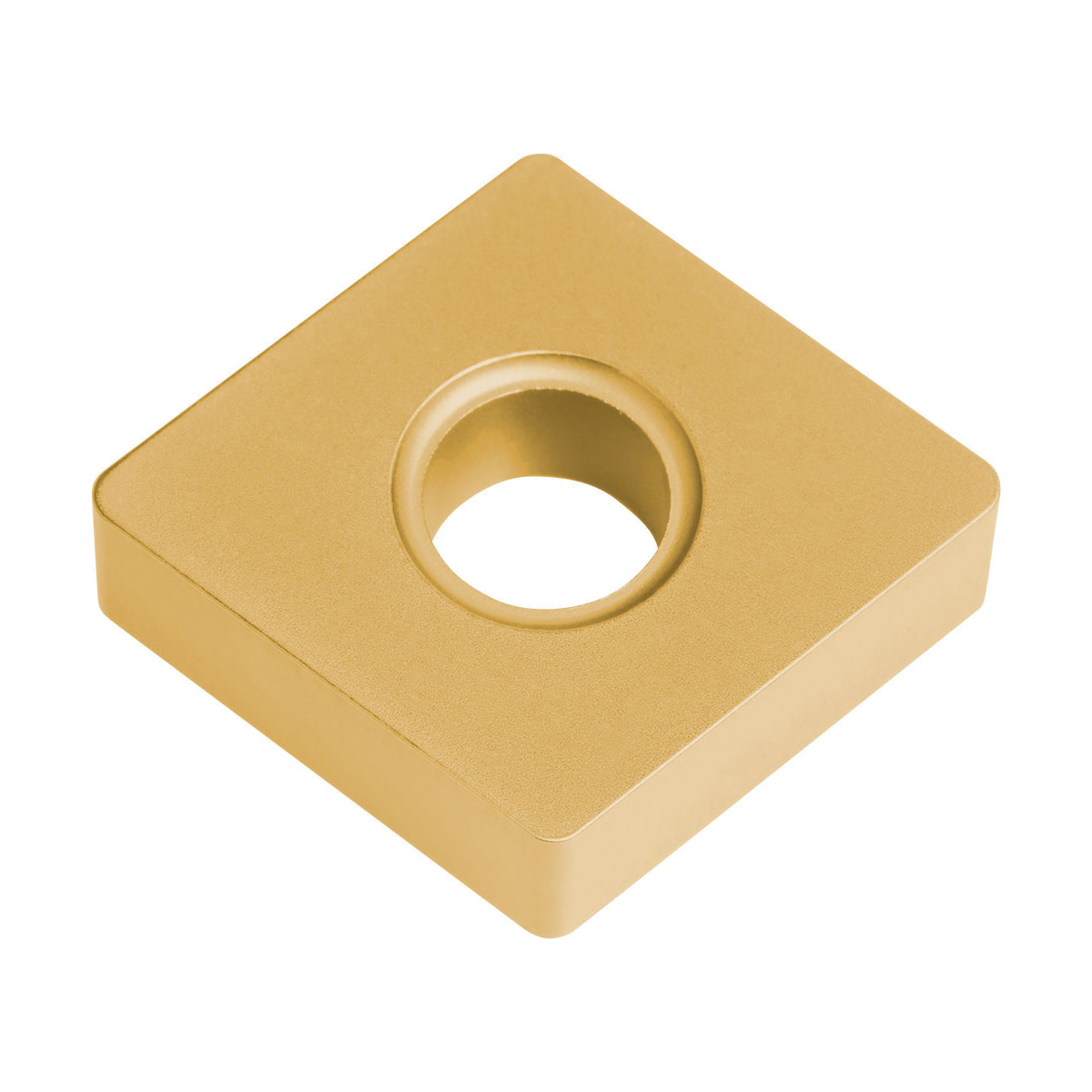

CNMA543CA5515 TURNING INSERT

CNMA543CA5515 TURNING INSERT

KYOC8821624 8821624
15.47 / EA
http://schema.org/OutOfStock
CNMA543CA5515 TURNING INSERT
  • Applicable Materials: Carbon/Alloy Steel
  • Corner Radius: 0.0472in
  • Hand Direction: Neutral
  • Hole Diameter: 1/4in
  • Included Angle: 80°
  • Inscribed Circle: 5/8in
  • Insert Size: #543
  • Insert Style: CNMA
  • ISO Code: CNMA160612-SP
  • Material: Carbide
  • Material Grade: P
  • Rake: Negative
  • Relief Angle: 0°
  • Seat Size: 16
  • Shape: Diamond
  • Surface Treatment: CVD-TiCN/Al2O3/TiN Coated
  • Thickness: 1/4in
  • Type: 4-Cutting Edge
  • ANSI Code: CNMA543CA5515
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: CA5515
  • Manufacturer Name: KYOCERA Precision Tools
  • Series: ISOI
QTY
Add to List
  • Application
  • Item Features
  • Standards
Boring, External Turning, Facing and Internal Facing Applications
  • Cast iron/without chipbreaker with 4-cutting edges
  • Improved wear resistance and longer tool life due to micro columnar structure of coating composition
  • High speed cutting of steel, continuous to light interruption
  • Without chipbreaker
