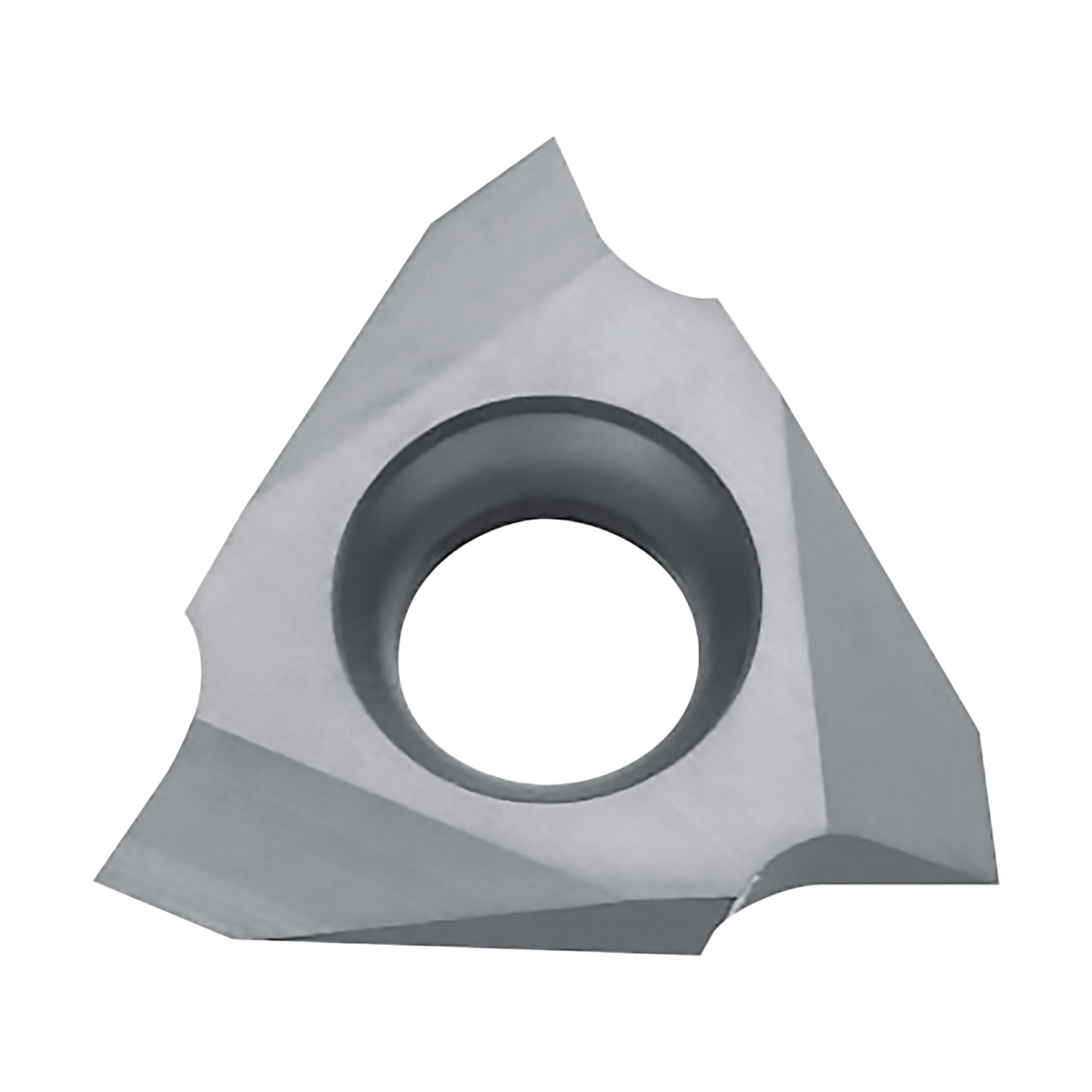

TT43R6002KW10 THREADING INSERT

TT43R6002KW10 THREADING INSERT

KYOCTWE02860 TWE02860
34.08 / EA
http://schema.org/OutOfStock
TT43R6002KW10 THREADING INSERT
  • ANSI Code: TT43R6002KW10
  • Country of Origin: US|JP|CN|KR
  • Hand Direction: Right Hand
  • Included Angle: 60°
  • Inscribed Circle: 1/2in
  • Insert Size: #43
  • Insert Style: TT
  • ISO Code: TT43R6002
  • Manufacturer Name: KYOCERA Precision Tools
  • Material: Carbide
  • Material Grade: K, N
  • Pitch: 1.5 to 3.5mm, 3mm
  • Surface Treatment: UNCOATED
  • Thickness: 3/16in
  • Thread Standard: Metric, Unified
  • Thread Type: Internal/External
  • Threads Per Inch: 16 to 8, 8
  • Type: 3-Cutting Edge
  • Manufacturer Grade: KW10
  • Corner Radius: 0.0079in
  • Has Attributes: Yes
  • Has Image: Yes
QTY
Add to List
  • Application
  • Item Features
  • Standards
For stable cutting of cast iron, non-ferrous materials, non-metals and titanium alloys, internal and external threading
  • 60 deg partial profile for metric, unified threads
ECCN: EAR99
