KYOCERA PRECISION TOOLS

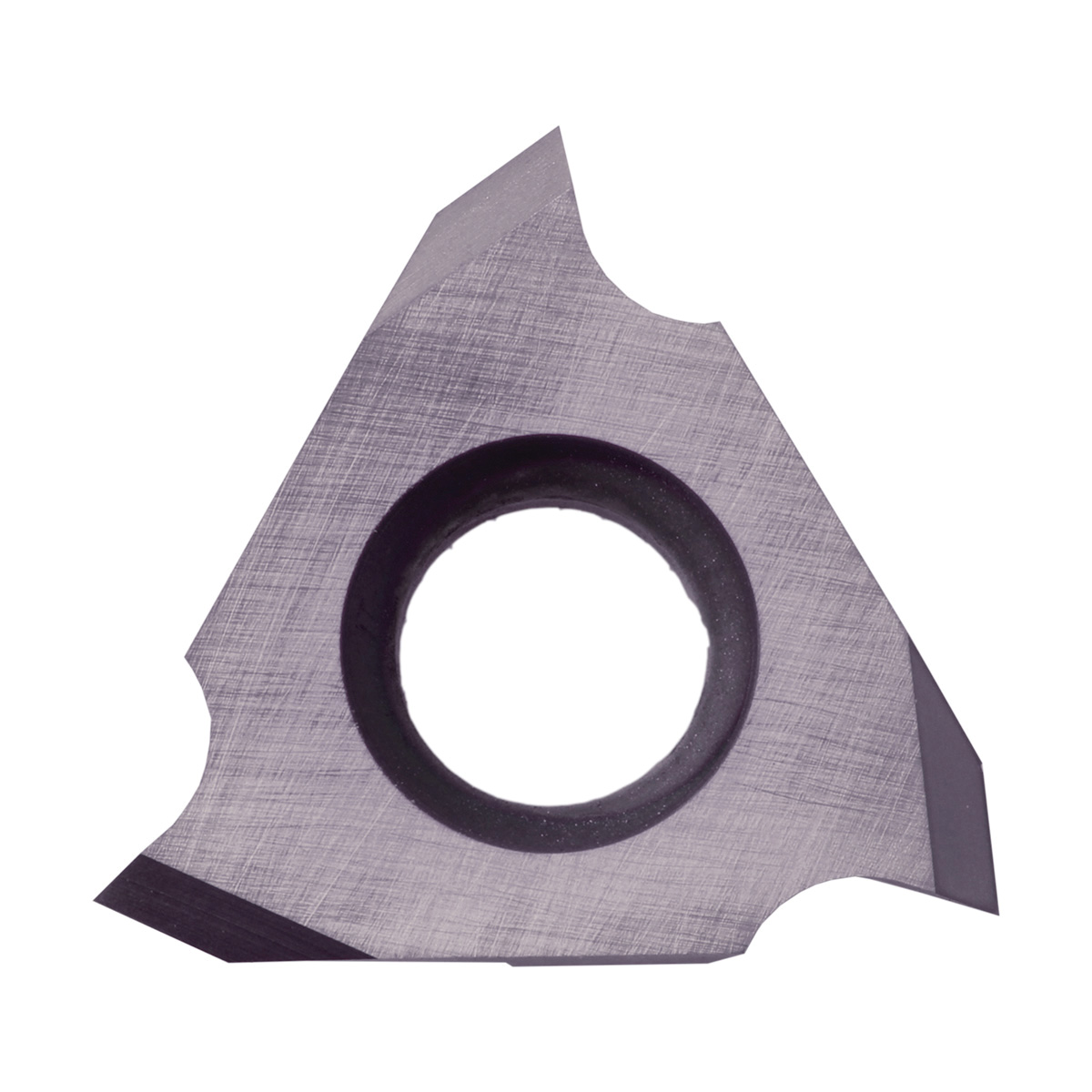

TTX32R55015PR930 THREADING INSERT

TTX32R55015PR930 THREADING INSERT

KYOCTKT64583 TKT64583
35.88 / EA
http://schema.org/OutOfStock
TTX32R55015PR930 THREADING INSERT
  • ANSI Code: TTX32R55015PR930
  • Country of Origin: US|JP|CN|KR
  • Hand Direction: Right Hand
  • Included Angle: 55°
  • Inscribed Circle: 3/8in
  • Insert Size: #32
  • Insert Style: TTX
  • ISO Code: TTX32R55015
  • Manufacturer Name: KYOCERA Precision Tools
  • Material: Carbide
  • Material Grade: P, M
  • Series: KTTX
  • Surface Treatment: PVD-TiCN Coated
  • Thickness: 1/8in
  • Thread Standard: Parallel Pipe, Tapered Pipe, Whitworth
  • Thread Type: External
  • Threads Per Inch: 19 to 11, 20 to 11
  • Type: 3-Cutting Edge
  • Manufacturer Grade: PR930
  • Corner Radius: 0.0059in
  • Has Attributes: Yes
  • Has Image: Yes
QTY
Add to List
  • Application
  • Item Features
  • Standards
External Threading Applications
  • Insert for external threading with 3-cutting edges
  • 55 deg partial profile for parallel pipe, tapered pipe, whitworth threads
  • Hard TiCN base PVD coated super micro-grain carbide
  • Low cutting speed, precise cutting with sharp edge
