KYOCERA PRECISION TOOLS

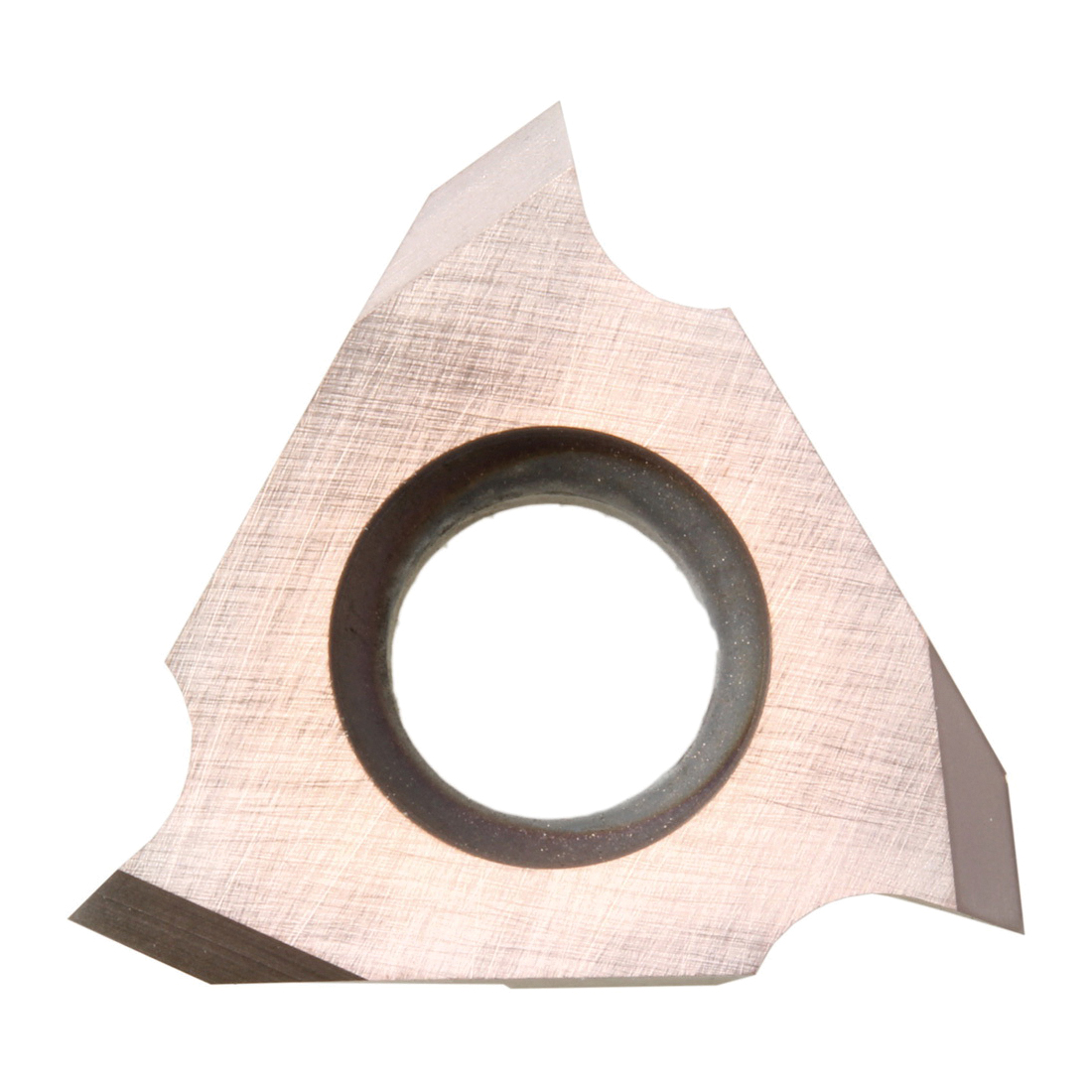

TTX32R60005PR930 THREADING INSERT

TTX32R60005PR930 THREADING INSERT

KYOCTKT05860 TKT05860
35.88 / EA
http://schema.org/OutOfStock
TTX32R60005PR930 THREADING INSERT
  • ANSI Code: TTX32R60005PR930
  • Country of Origin: JP
  • Hand Direction: Right Hand
  • Included Angle: 60°
  • Inscribed Circle: 3/8in
  • Insert Size: 32
  • Insert Style: TTX
  • ISO Code: TTX32R60005 PR930
  • Manufacturer Name: KYOCERA Precision Tools
  • Material: Carbide
  • Pitch: 0.5 to 1mm
  • Surface Treatment: PVD-TiCN Coated
  • Thickness: 1/8in
  • Thread Standard: Metric/UN
  • Thread Type: External
  • Threads Per Inch: 32 to 48
  • Type: Partial Profile
  • Manufacturer Grade: PR930
  • Corner Radius: 0.002in
  • Has Attributes: Yes
  • Has Image: Yes
QTY
Add to List
  • Application
  • Item Features
Low Cutting Speed, Precise Cutting with Sharp Edge
  • Insert for external threading with 3 cutting edges
  • 60 deg partial profile for metric (M), unified (UN) threads
  • Hard TiCN base PVD coated super micro-grain carbide
