TTX32R5501PR1115 THREADING INSERT

TTX32R5501PR1115 THREADING INSERT

KYOCTJY19580 TJY19580
33.00 / EA
http://schema.org/OutOfStock

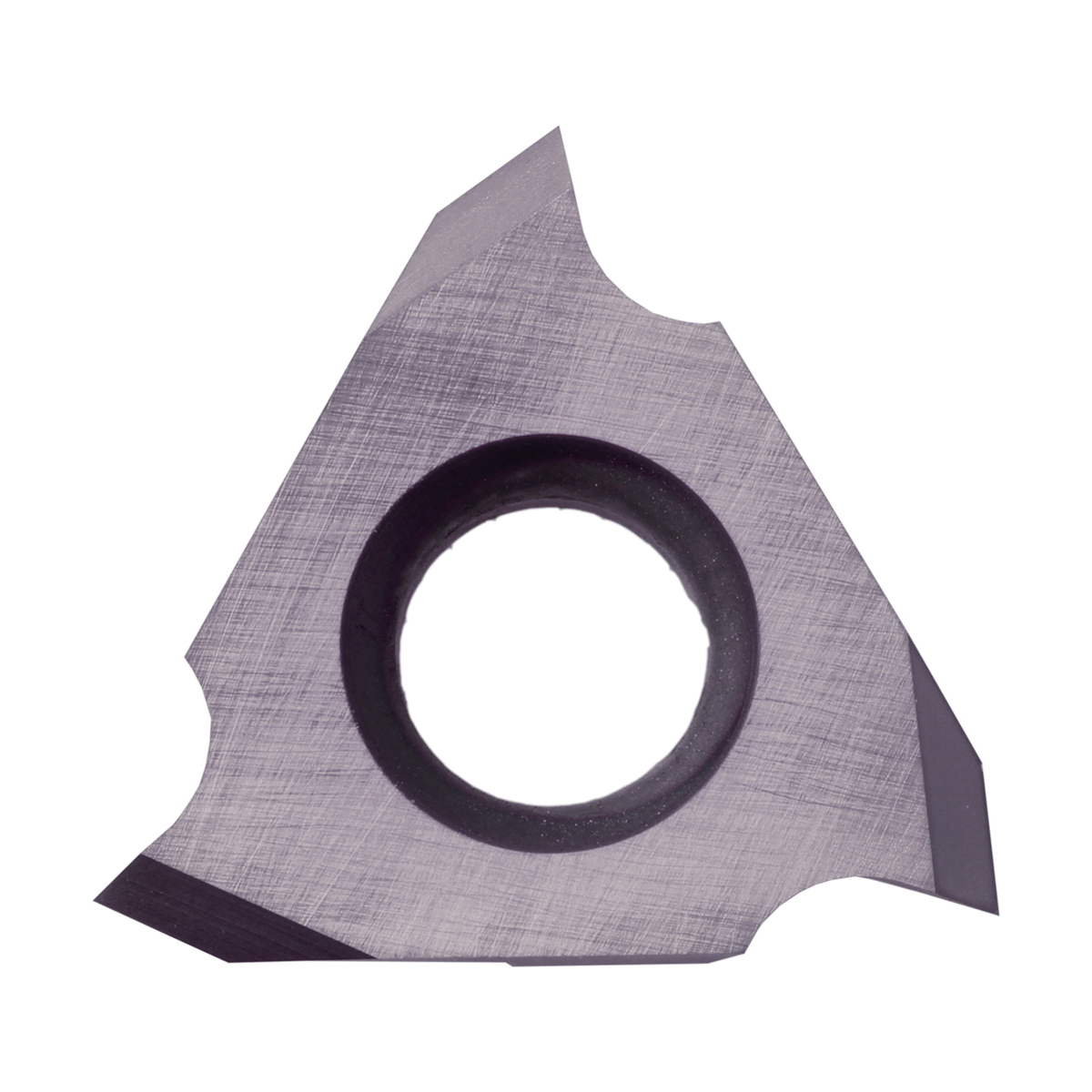

TTX32R5501PR1115 THREADING INSERT
  • ANSI Code: TTX32R5501PR1115
  • Country of Origin: US|JP|CN|KR
  • Hand Direction: Right Hand
  • Included Angle: 55°
  • Inscribed Circle: 3/8in
  • Insert Size: #32
  • Insert Style: TTX
  • ISO Code: TTX32R5501
  • Manufacturer Name: KYOCERA Precision Tools
  • Material: Carbide
  • Material Grade: P, M
  • Surface Treatment: PVD-TiAlN Coated
  • Thickness: 1/8in
  • Thread Standard: Parallel Pipe, Tapered Pipe, Whitworth
  • Thread Type: External
  • Threads Per Inch: 28 to 19, 24 to 20
  • Type: 3-Cutting Edge
  • Manufacturer Grade: PR1115
  • Corner Radius: 0.004in
  • Has Attributes: Yes
  • Has Image: Yes
QTY
Add to List
  • Application
  • Item Features
  • Standards
For superior anti-oxidation performance with well balanced wear resistance and toughness in steel and stainless steel and external threading
  • 55 deg partial profile for parallel pipe [g(pf)], tapered pipe [R(PT), (BSPT)], whitworth threads
  • Hard TiAlN base PVD coated super micro-grain carbide
ECCN: EAR99
