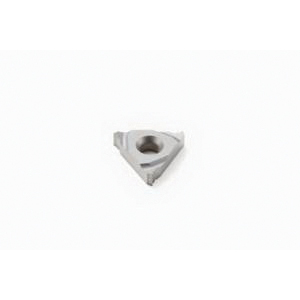

16NR 8UN H15 INSERT

16NR 8UN H15 INSERT

SEC74027586 74027586
36.23 / EA
http://schema.org/OutOfStock
16NR 8UN H15 INSERT
  • ANSI Code: 16NR8UN H15
  • Corner Radius: 0.25 mm, 0.25mm
  • Hand Direction: Right Hand
  • Included Angle: 60 deg, 60°
  • Inscribed Circle: 9.5 mm, 9.5mm
  • Insert Size: 16
  • Insert Style: 16NR
  • ISO Code: 16NR8UN H15
  • Length: 16.5 mm, 16.5mm
  • Manufacturer Name: Seco Tools
  • Material: Carbide
  • Material Grade: K
  • Series: Snap-Tap®
  • Surface Treatment: UNCOATED
  • Thread Standard: UN
  • Thread Type: Internal
  • Threads Per Inch: 8
  • Type: Laydown
  • Manufacturer Grade: H15
  • Thickness: 3.5 mm, 3.5mm
  • Has Attributes: Yes
  • Has Image: Yes
Pack: 2/PK
