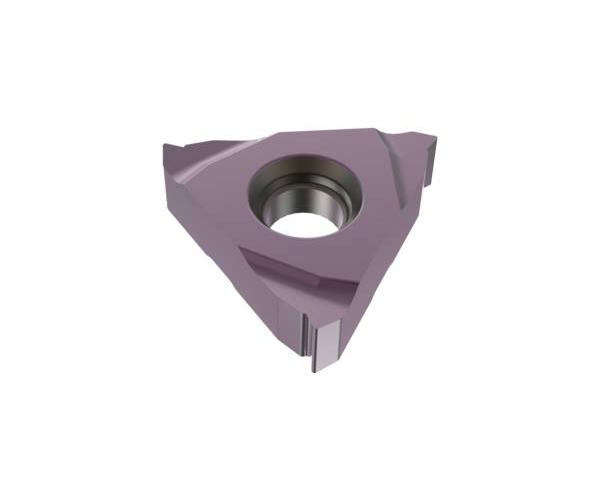

16ER20UN TTP2050 THREADING INSERT

16ER20UN TTP2050 THREADING INSERT

SEC10097656 10097656
39.09 / EA
http://schema.org/OutOfStock
16ER20UN TTP2050 THREADING INSERT
  • ANSI Code: 16ER20UN
  • Chipbreaker: Universal
  • Corner Radius: 0.006in
  • Country of Origin: IN
  • Hand Direction: Right
  • Included Angle: 60°
  • Inscribed Circle: 0.375in
  • Insert Style: 16ER
  • ISO Code: 16ER20UN
  • Length: 0.65in
  • Manufacturer Name: Seco Tools
  • Rake: Positive
  • Series: 16ER
  • Thread Standard: Metric ISO
  • Thread Type: External
  • Threads Per Inch: 20 TPI
  • Type: Laydown
  • Manufacturer Grade: TTP2050
  • Thickness: 0.137in
  • Has Attributes: Yes
  • Has Image: Yes
QTY
Add to List
  • Application
  • Item Features
  • Standards
For a large majority of common thread turning applications
  • Eliminates the need for secondary grinding or honing operations, which makes these tools a highly economical choice
  • Features the CP500 grade that features a highly wear resistant PVD coating to provide dependable machining for a large majority of common thread turning applications
