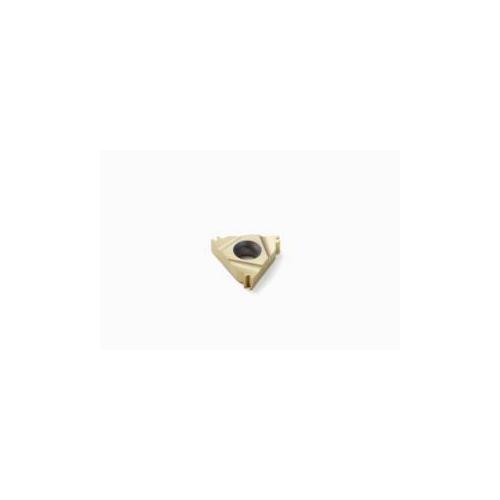

16ER12W-TT CP500 THREADING INSERT
16ER12W-TT CP500 THREADING INSERT
SEC02733435
02733435
44.91
/ EA
http://schema.org/OutOfStock
/Product/SEC02733435
- ANSI Code: 16ER12W-TT
- Chipbreaker: TT
- Corner Radius: 0.01 in, 0.01in
- Country of Origin: IN
- Hand Direction: Right
- Included Angle: 55 deg, 55°
- Inscribed Circle: 0.375 in, 0.375in
- Insert Style: 16ER
- ISO Code: 16ER12W-TT
- Length: 0.65 in, 0.65in
- Manufacturer Name: Seco Tools
- Material: Carbide
- Rake: Positive
- Series: 16ER
- Thread Standard: Whitworth
- Thread Type: External
- Threads Per Inch: 12 TPI
- Type: Laydown
- Manufacturer Grade: CP500
- Thickness: 0.137 in, 0.137in
- Has Attributes: Yes
- Has Image: Yes
- Application
- Item Features
- Standards
For a large majority of common thread turning applications
- Eliminates the need for secondary grinding or honing operations, which makes these tools a highly economical choice
- Features the CP500 grade that features a highly wear resistant PVD coating to provide dependable machining for a large majority of common thread turning applications
- Tough micrograin grade intended for finishing to medium-roughing of stainless steels but with wide applicability for example in steels and aluminium alloys
- Especially suitable in intermittent cuts
