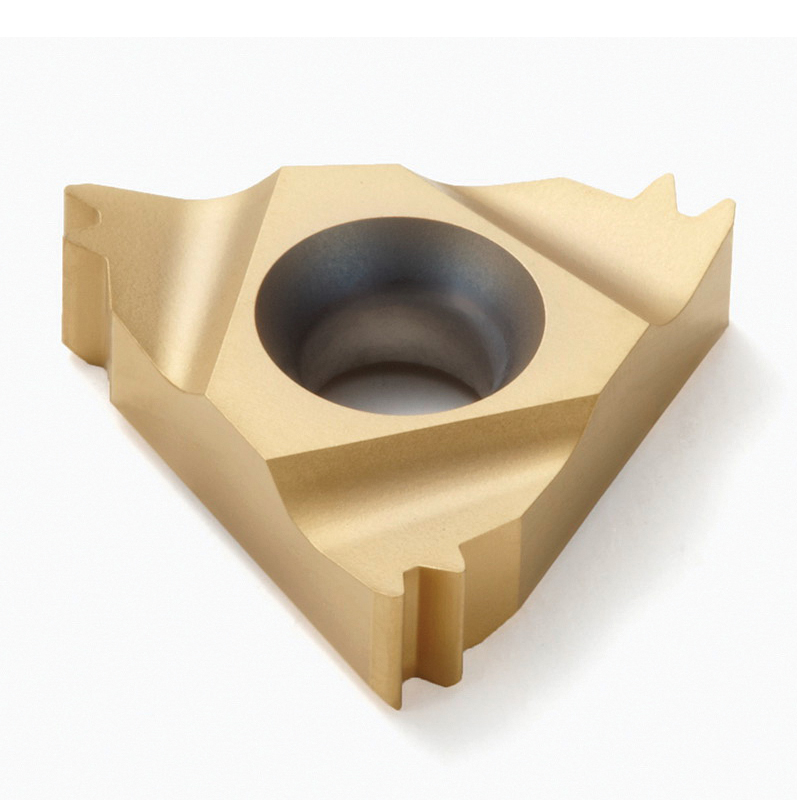

16NR12W-TT CP500 THREADING INSERT

16NR12W-TT CP500 THREADING INSERT

SEC02706915 02706915
49.90 / EA
http://schema.org/OutOfStock
  • ANSI Code: 16NR12W-TT
  • Corner Radius: 0.009 in, 0.009in
  • Country of Origin: IN
  • Included Angle: 90 deg, 90°
  • ISO Code: 16NR12W-TT
  • Length: 0.65 in, 0.65in
  • Manufacturer Name: Seco Tools
  • Material: Carbide
  • Surface Treatment: PVD Coated
  • Thread Type: Internal
  • Type: Right Hand Multi-Tooth
  • Width: 0.65 in, 0.65in
  • Manufacturer Grade: CP500
  • Thickness: 0.137 in, 0.137in
  • Has Attributes: Yes
  • Has Image: Yes
We use advanced manufacturing processes to produce the precision cutting edges on our Snap-Tap® thread turning tools. The process eliminates the need for secondary grinding or honing operations, which makes these tools a highly economical choice. Pair these tools with our anti-twist Toolholders and solid suggestions from our thread turning wizard software and there's no thread turning application you can't handle. Our popular range of Snap-Tap® thread turning tools are available in three insert chipbreaker geometries for the successful machining of steel and stainless steel. While each geometry serves a unique purpose, they all feature the CP500 grade that features a highly wear-resistant PVD coating to provide dependable machining for a large majority of common thread turning applications. The innovative Toolholders made for use with Snap-Tap® inserts offer the best possible holding power available for long tool life and high accuracy. They employ an anti-twist insert locking system that features a carbide pin in the back of the insert pocket that resists wear and prevents the insert from turning or twisting under pressure during machining. For added insert and toolholder rigidity, a D-style clamp securely pulls the insert down and into the pocket.
