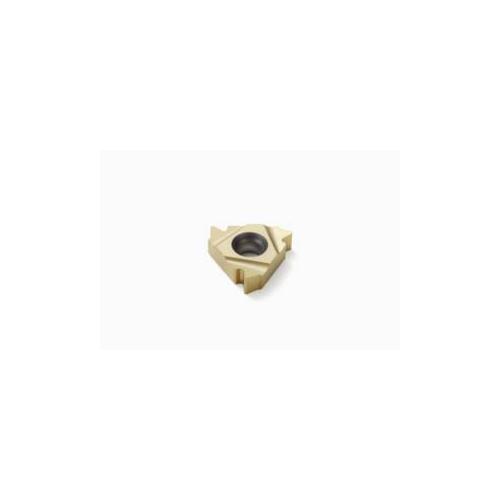

22ER 6HEF CP500 INSERT
22ER 6HEF CP500 INSERT
SEC02545363
02545363
80.18
/ EA
http://schema.org/OutOfStock
/Product/SEC02545363
- Corner Radius: 0.38 mm, 0.38mm
- Hand Direction: Right
- Included Angle: 60 deg, 60°
- Inscribed Circle: 12.7 mm, 12.7mm
- Insert Style: 22ER
- Length: 0.858 in, 0.858in
- Material: Carbide
- Series: 22ER
- Thread Type: External
- Threads Per Inch: 6 TPI
- Type: Laydown
- ANSI Code: 22ER6HEF
- Chipbreaker: A
- Country of Origin: IN
- Has Attributes: Yes
- Has Image: Yes
- ISO Code: 22ER6HEF
- Manufacturer Grade: CP500
- Manufacturer Name: Seco Tools
- Rake: Positive
- Thickness: 0.185 in, 0.185in
- Application
- Item Features
- Standards
For a large majority of common thread turning applications
- Eliminates the need for secondary grinding or honing operations, which makes these tools a highly economical choice
- Features the CP500 grade that features a highly wear resistant PVD coating to provide dependable machining for a large majority of common thread turning applications
- Tough micrograin grade intended for finishing to medium-roughing of stainless steels but with wide applicability for example in steels and aluminium alloys
- Especially suitable in intermittent cuts
