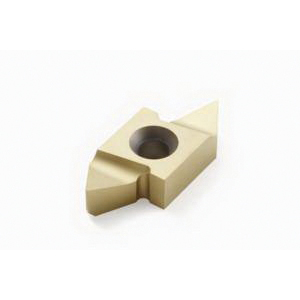

26NR K60 CP500 INSERT
26NR K60 CP500 INSERT
SEC00073164
00073164
191.05
/ EA
http://schema.org/OutOfStock
/Product/SEC00073164
- Corner Radius: 0.4 mm, 0.4mm
- Hand Direction: Right Hand
- Included Angle: 60 deg, 60°
- Inscribed Circle: 15.88 mm, 15.88mm
- Insert Size: 26
- Insert Style: 26NRK
- Length: 26 mm, 26mm
- Material: Carbide
- Material Grade: M
- Pitch: 5.5 to 10 mm
- Series: Snap-Tap®
- Surface Treatment: PVD-TiAlN+TiN Coated
- Teeth Per Inch: 5.5 to 10mm
- Thread Standard: 60 deg Partial Profile, 60° Partial Profile
- Thread Type: Internal
- Threads Per Inch: 4.5 to 2.5
- Type: Laydown
- ANSI Code: 26NRK60 CP500
- Country of Origin: IN
- Has Attributes: Yes
- Has Image: Yes
- ISO Code: 26NRK60 CP500
- Manufacturer Grade: CP500
- Manufacturer Name: Seco Tools
- Thickness: 7.9 mm, 7.9mm
