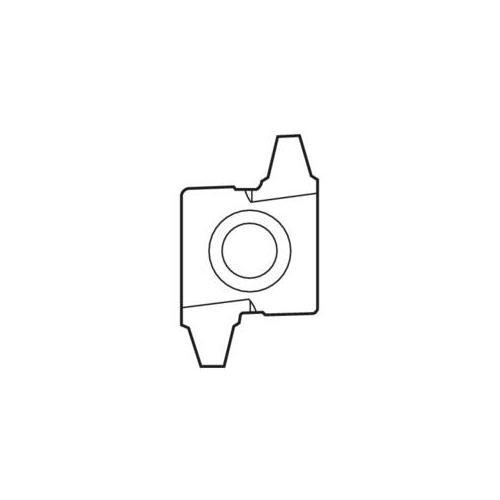

26NR 14.0TR CP500 INSERT
26NR 14.0TR CP500 INSERT
SEC00073137
00073137
191.05
/ EA
http://schema.org/OutOfStock
/Product/SEC00073137
- Hand Direction: Right
- Included Angle: 30 deg, 30°
- Inscribed Circle: 0.619 in, 0.619in
- Insert Style: 26NR
- Length: 1.024 in, 1.024in
- Material: Carbide
- Pitch: 0.551 in
- Series: 26NR
- Teeth Per Inch: 0.551in
- Thread Standard: Trapezoidal
- Thread Type: Internal
- Type: Laydown
- ANSI Code: 26NR14.0TR
- Chipbreaker: A
- Country of Origin: IN
- Has Attributes: Yes
- Has Image: Yes
- ISO Code: 26NR14.0TR
- Manufacturer Grade: CP500
- Manufacturer Name: Seco Tools
- Rake: Positive
- Thickness: 0.31 in, 0.31in
- Width: 0.619 in, 0.619in
- Application
- Item Features
- Standards
For a large majority of common thread turning applications
- Eliminates the need for secondary grinding or honing operations, which makes these tools a highly economical choice
- Features the CP500 grade that features a highly wear resistant PVD coating to provide dependable machining for a large majority of common thread turning applications
- Tough micrograin grade intended for finishing to medium-roughing of stainless steels but with wide applicability for example in steels and aluminium alloys
- Especially suitable in intermittent cuts
