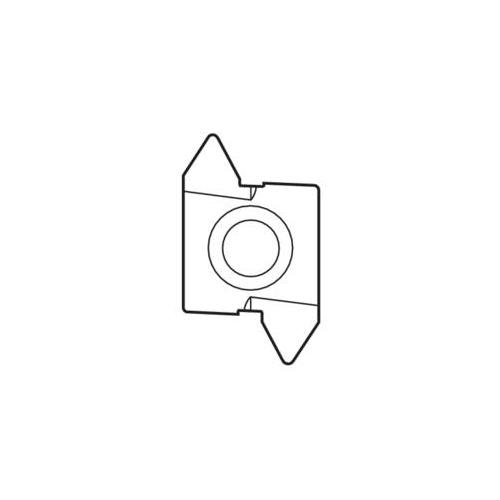

26ER K55 CP500 INSERT
26ER K55 CP500 INSERT
SEC00073128
00073128
191.05
/ EA
http://schema.org/OutOfStock
/Product/SEC00073128
- Corner Radius: 0.028 in, 0.028in
- Hand Direction: Right
- Included Angle: 55 deg, 55°
- Inscribed Circle: 0.619 in, 0.619in
- Insert Style: 26ER
- Length: 1.024 in, 1.024in
- Material: Carbide
- Pitch: 0.394 in
- Series: 26ER
- Teeth Per Inch: 0.394in
- Thread Standard: 55 deg Partial Profile, 55° Partial Profile
- Thread Type: Internal/External
- Threads Per Inch: 2.5 TPI
- Type: Laydown
- ANSI Code: 26ERK55
- Chipbreaker: A
- Country of Origin: IN
- Has Attributes: Yes
- Has Image: Yes
- ISO Code: 26ERK55
- Manufacturer Grade: CP500
- Manufacturer Name: Seco Tools
- Rake: Positive
- Thickness: 0.31 in, 0.31in
- Application
- Item Features
- Standards
For a large majority of common thread turning applications
- Eliminates the need for secondary grinding or honing operations, which makes these tools a highly economical choice
- Features the CP500 grade that features a highly wear resistant PVD coating to provide dependable machining for a large majority of common thread turning applications
- Tough micrograin grade intended for finishing to medium-roughing of stainless steels but with wide applicability for example in steels and aluminium alloys
- Especially suitable in intermittent cuts
