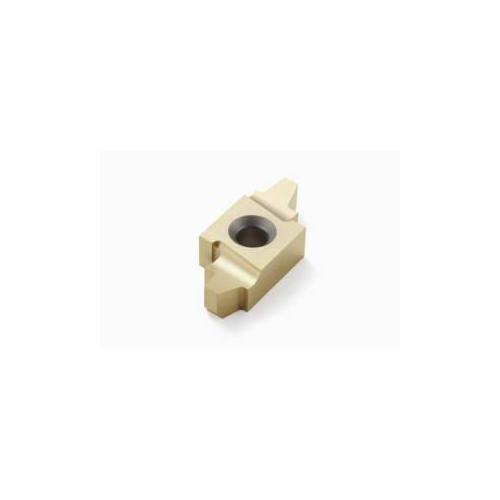

20ER 7.0TR CP500 INSERT
20ER 7.0TR CP500 INSERT
SEC00064799
00064799
149.29
/ EA
http://schema.org/OutOfStock
/Product/SEC00064799
- Hand Direction: Right
- Included Angle: 30 deg, 30°
- Inscribed Circle: 0.5 in, 0.5in
- Insert Style: 20ER
- Length: 0.787 in, 0.787in
- Material: Carbide
- Pitch: 0.276 in
- Series: 20ER
- Teeth Per Inch: 0.276in
- Thread Standard: Trapezoidal
- Thread Type: External
- Type: Laydown
- Country of Origin: IN
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Grade: CP500
- Manufacturer Name: Seco Tools
- Thickness: 0.248 in, 0.248in
- Width: 0.495 in, 0.495in
- Application
- Item Features
- Standards
For a large majority of common thread turning applications
- Eliminates the need for secondary grinding or honing operations, which makes these tools a highly economical choice
- Features the CP500 grade that features a highly wear resistant PVD coating to provide dependable machining for a large majority of common thread turning applications
- Tough micrograin grade intended for finishing to medium-roughing of stainless steels but with wide applicability for example in steels and aluminium alloys
- Especially suitable in intermittent cuts
