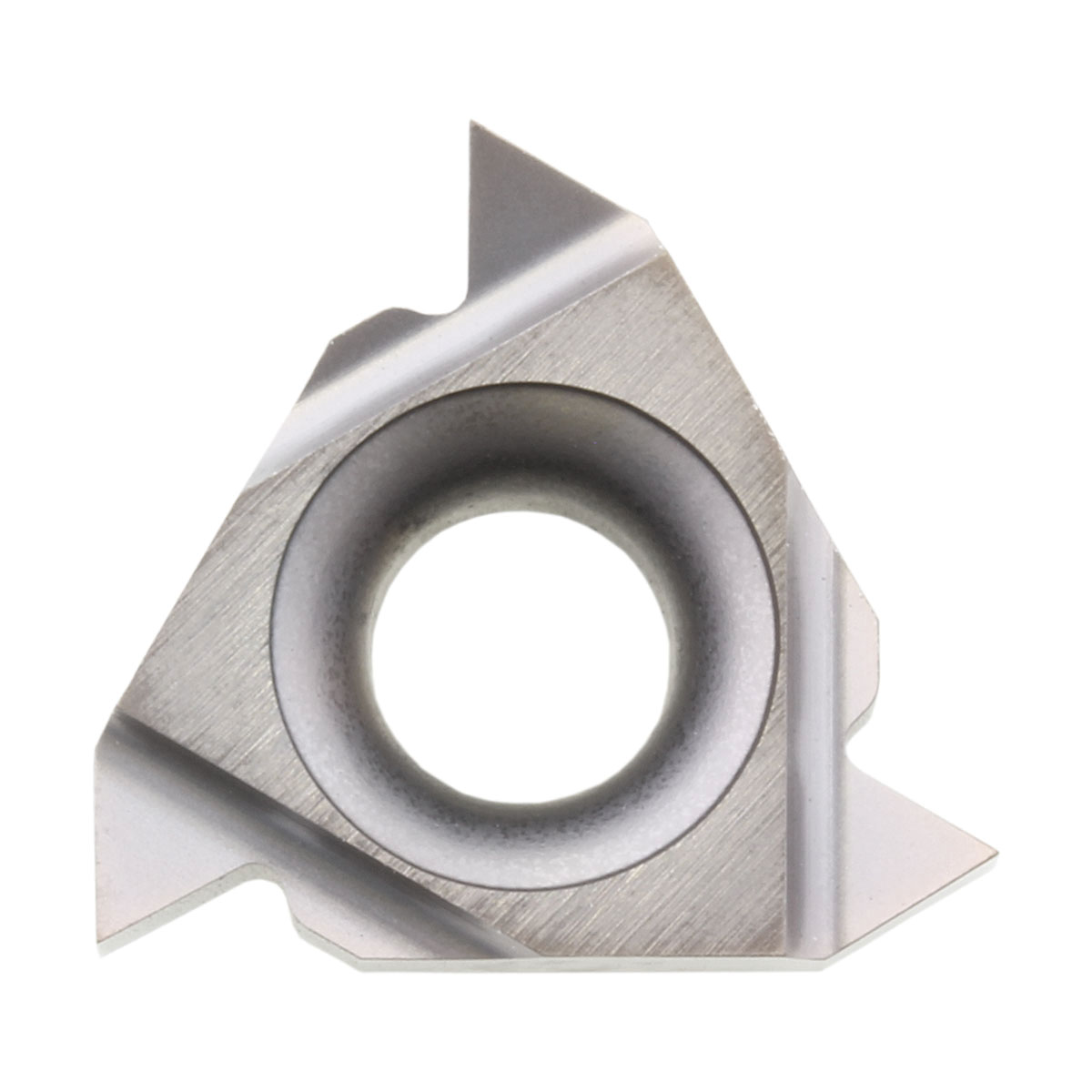

22IRN60GW15 THREADING INSERT
22IRN60GW15 THREADING INSERT
KYOCTWF18242
TWF18242
0.00
/ EA
http://schema.org/OutOfStock
/Product/KYOCTWF18242
- Corner Radius: 0.0091in
- Hand Direction: Right Hand
- Included Angle: 60°
- Inscribed Circle: 1/2in
- Insert Size: #22
- Insert Style: 22IR
- Material: Carbide
- Material Grade: K
- Pitch: 3.5 to 5mm
- Series: LDT
- Surface Treatment: Uncoated/WC/Co Coated
- Thread Standard: Metric, Unified, UNF
- Thread Type: Internal
- Threads Per Inch: 7 to 5
- Type: 3-Cutting Edge
- ANSI Code: 22IRN60GW15
- Country of Origin: US|JP|CN|KR
- Has Attributes: Yes
- Has Image: Yes
- ISO Code: 22IRN60
- Manufacturer Grade: GW15
- Manufacturer Name: KYOCERA Precision Tools
- Thickness: 0.193in
- Application
- Item Features
- Standards
Internal Threading Applications
- Insert for internal threading with 3-cutting edges
- 60 deg partial profile for metric, unified threads
- ISO identification symbol K carbide (equivalent to K10), tough micro-grain carbide
- High wear resistance and toughness for non-ferrous materials and non-metals and titanium alloy
