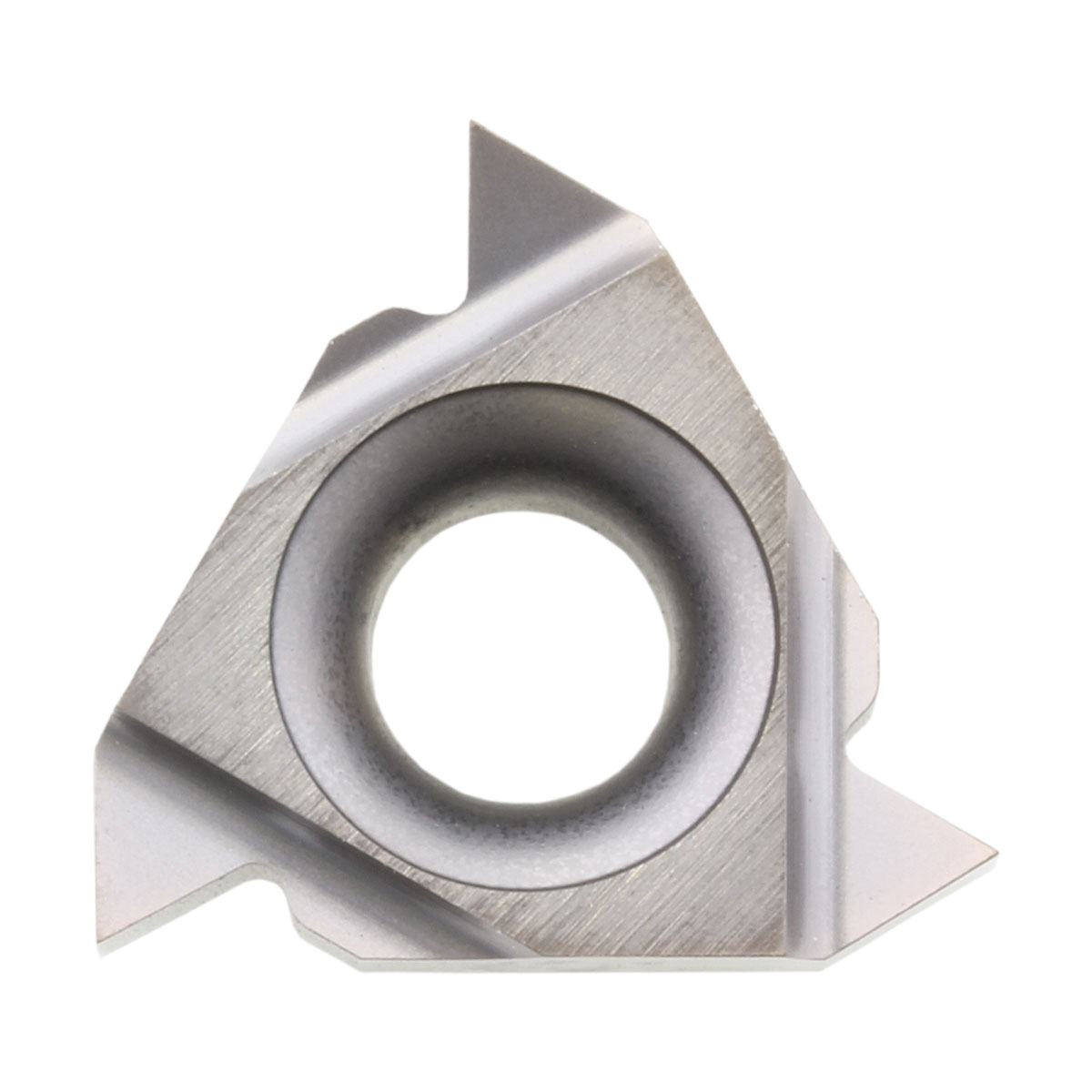

16IRA60GW15 THREADING INSERT
16IRA60GW15 THREADING INSERT
KYOCTWF18236
TWF18236
27.00
/ EA
http://schema.org/OutOfStock
/Product/KYOCTWF18236
- ANSI Code: 16IRA60GW15
- Corner Radius: 0.0012in
- Country of Origin: US|JP|CN|KR
- Hand Direction: Right Hand
- Included Angle: 60°
- Inscribed Circle: 3/8in
- Insert Size: #16
- Insert Style: 16IR
- ISO Code: 16IRA60
- Manufacturer Name: KYOCERA Precision Tools
- Material: Carbide
- Material Grade: K
- Pitch: 0.5 to 1.5mm
- Series: LDT
- Surface Treatment: Uncoated/WC/Co Coated
- Thread Standard: Metric, Unified, UNF
- Thread Type: Internal
- Threads Per Inch: 48 to 16
- Type: 3-Cutting Edge
- Manufacturer Grade: GW15
- Thickness: 0.145in
- Has Attributes: Yes
- Has Image: Yes
- Application
- Item Features
- Standards
Internal Threading Applications
- Insert for internal threading with 3-cutting edges
- 60 deg partial profile for metric, unified threads
- ISO identification symbol K carbide (equivalent to K10), tough micro-grain carbide
- High wear resistance and toughness for non-ferrous materials and non-metals and titanium alloy
