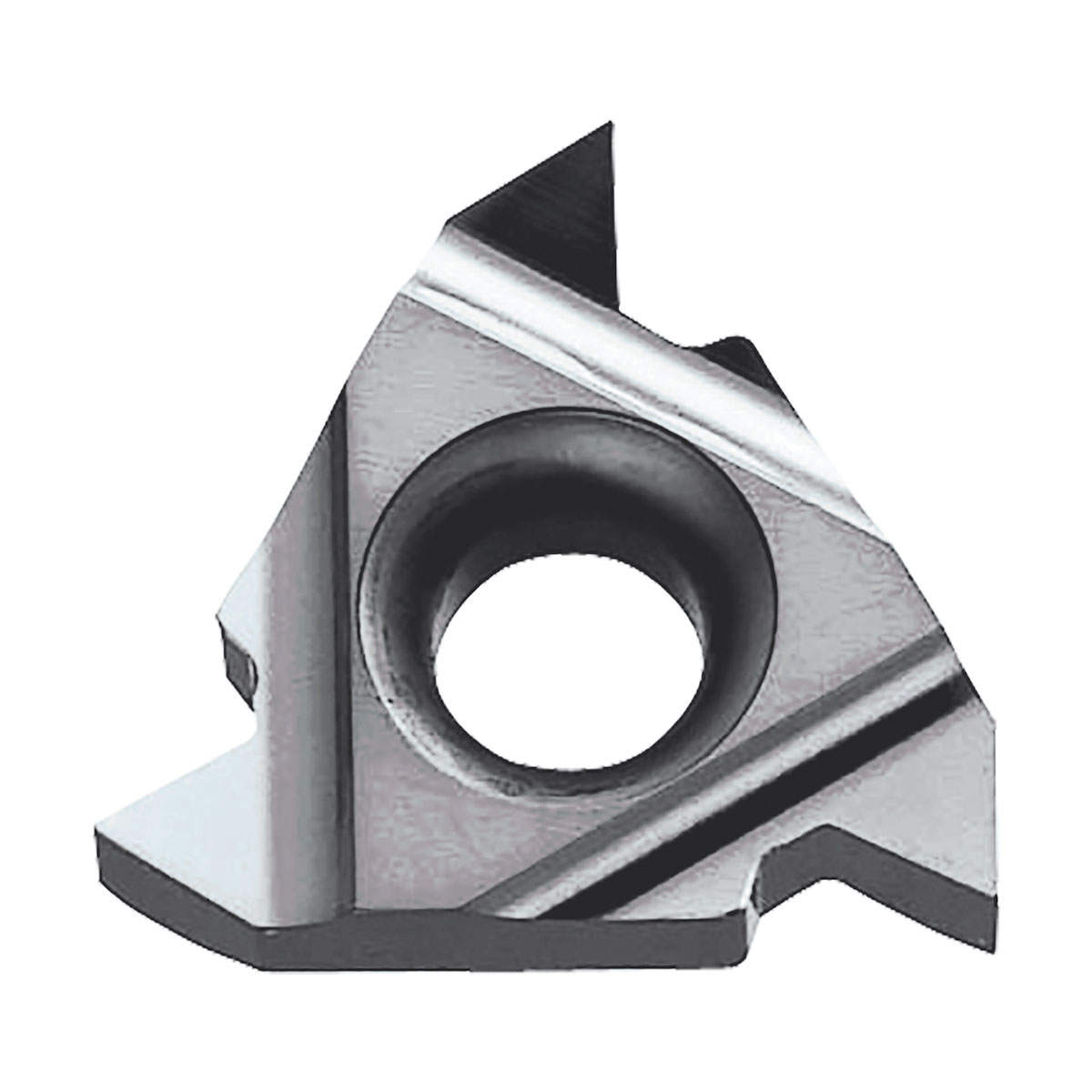

22ERN60GW15 THREADING INSERT
22ERN60GW15 THREADING INSERT
KYOCTWF18229
TWF18229
0.00
/ EA
http://schema.org/OutOfStock
/Product/KYOCTWF18229
- Corner Radius: 0.0189in
- Hand Direction: Right Hand
- Included Angle: 60°
- Inscribed Circle: 1/2in
- Insert Size: #22
- Insert Style: 22ER
- Material: Carbide
- Material Grade: K
- Pitch: 3.5 to 5mm
- Series: LDT
- Surface Treatment: Uncoated/WC/Co Coated
- Thread Standard: Metric, Unified, UNF
- Thread Type: External
- Threads Per Inch: 7 to 5
- Type: 3-Cutting Edge
- ANSI Code: 22ERN60GW15
- Country of Origin: US|JP|CN|KR
- Has Attributes: Yes
- Has Image: Yes
- ISO Code: 22ERN60
- Manufacturer Grade: GW15
- Manufacturer Name: KYOCERA Precision Tools
- Thickness: 0.193in
- Application
- Item Features
- Standards
External Threading Applications
- Insert for external threading with 3-cutting edges
- 60 deg partial profile for metric, unified threads
- ISO identification symbol K carbide (equivalent to K10), tough micro-grain carbide
- High wear resistance and toughness for non-ferrous materials and non-metals and titanium alloy
