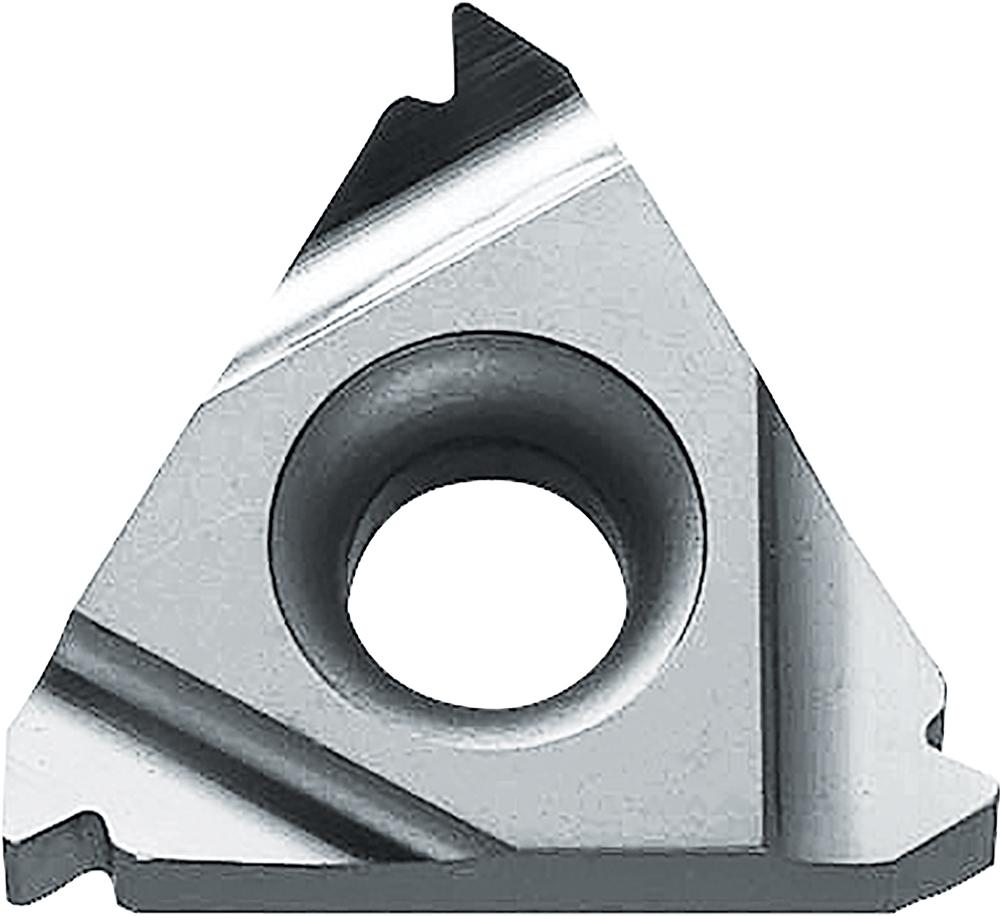

16IR 14PT TC60 THREADING INSERT
16IR 14PT TC60 THREADING INSERT
KYOCTSB01328
TSB01328
19.56
/ EA
http://schema.org/OutOfStock
/Product/KYOCTSB01328
- ANSI Code: 16IR14BSPTTC60
- Corner Radius: 0.002 in
- Country of Origin: US|JP|CN|KR
- Hand Direction: Right Hand
- Included Angle: 55 deg
- Inscribed Circle: 3/8 in
- Insert Size: 14PT
- Insert Style: 16IR
- ISO Code: 16IR14BSPT
- Manufacturer Name: KYOCERA Precision Tools
- Material: Cermet
- Material Grade: TC60
- Series: LDT
- Surface Treatment: UNCOATED
- Thread Standard: Tapered
- Thread Type: Internal
- Thickness: 0.145 in
- Has Attributes: Yes
- Has Image: Yes
- Application
- Item Features
- Standards
For Internal Threading
- Insert for Internal Threading with 3 Cutting Edges
- 55 deg Full Profile for Tapered Pipe R(PT), (BSPT) threads
- Excellent surface finish cermet grade for stable machining
ANSI
