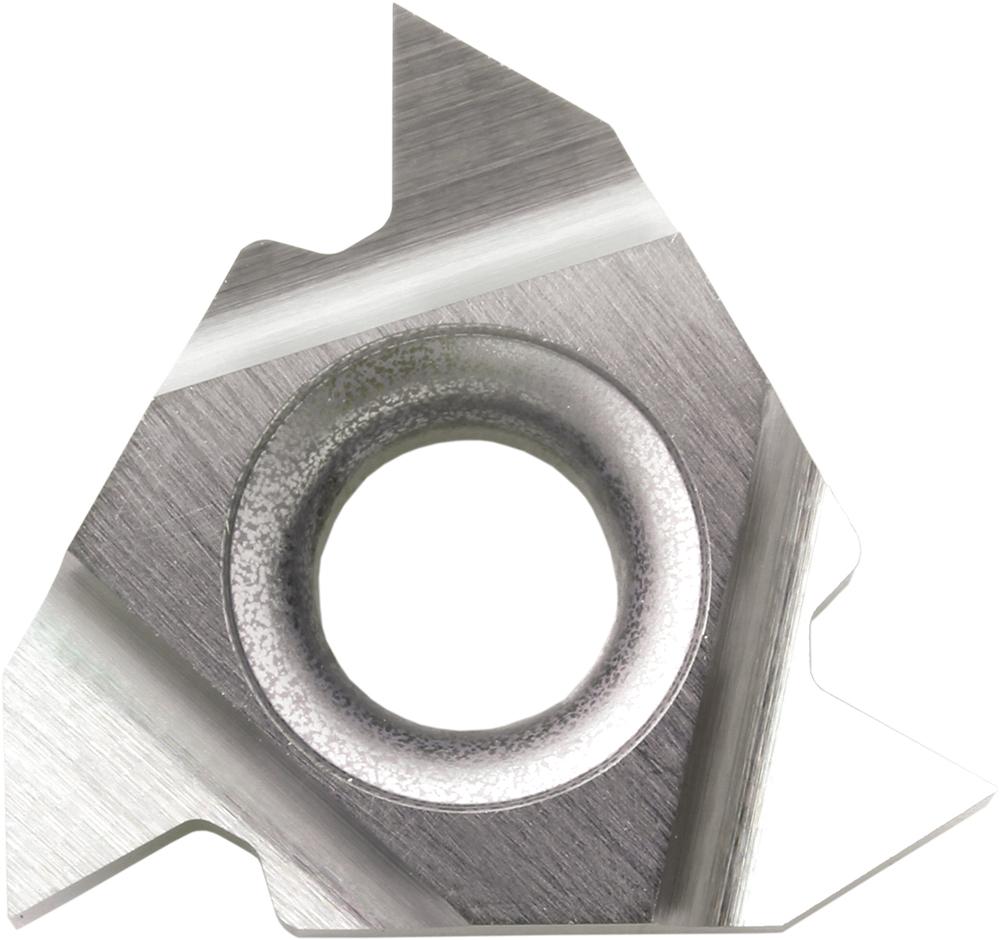

16IR 5501 TC60 THREADING INSERT

16IR 5501 TC60 THREADING INSERT

KYOCTSB01192 TSB01192
19.56 / EA
http://schema.org/OutOfStock
16IR 5501 TC60 THREADING INSERT
  • ANSI Code: 16IR5501TC60
  • Corner Radius: 0.004 in
  • Country of Origin: US|JP|CN|KR
  • Hand Direction: Right Hand
  • Included Angle: 55 deg
  • Inscribed Circle: 3/8 in
  • Insert Size: 5501
  • Insert Style: 16IR
  • ISO Code: 16IR5501
  • Manufacturer Name: KYOCERA Precision Tools
  • Material: Cermet
  • Material Grade: TC60
  • Series: LDT
  • Surface Treatment: UNCOATED
  • Thread Standard: Parallel Pipe, Tapered Pipe, Whitworth
  • Thread Type: Internal
  • Thickness: 0.145 in
  • Has Attributes: Yes
  • Has Image: Yes
QTY
Add to List
  • Application
  • Item Features
  • Standards
For Internal Threading
  • Insert for Internal Threading with 3 Cutting Edges
  • 55 deg Partial Profile for Parallel Pipe G(PF), Tapered Pipe Rc(PT), (BSPT), Whitworth (W) threads
  • Excellent surface finish cermet grade for stable machining
ANSI
