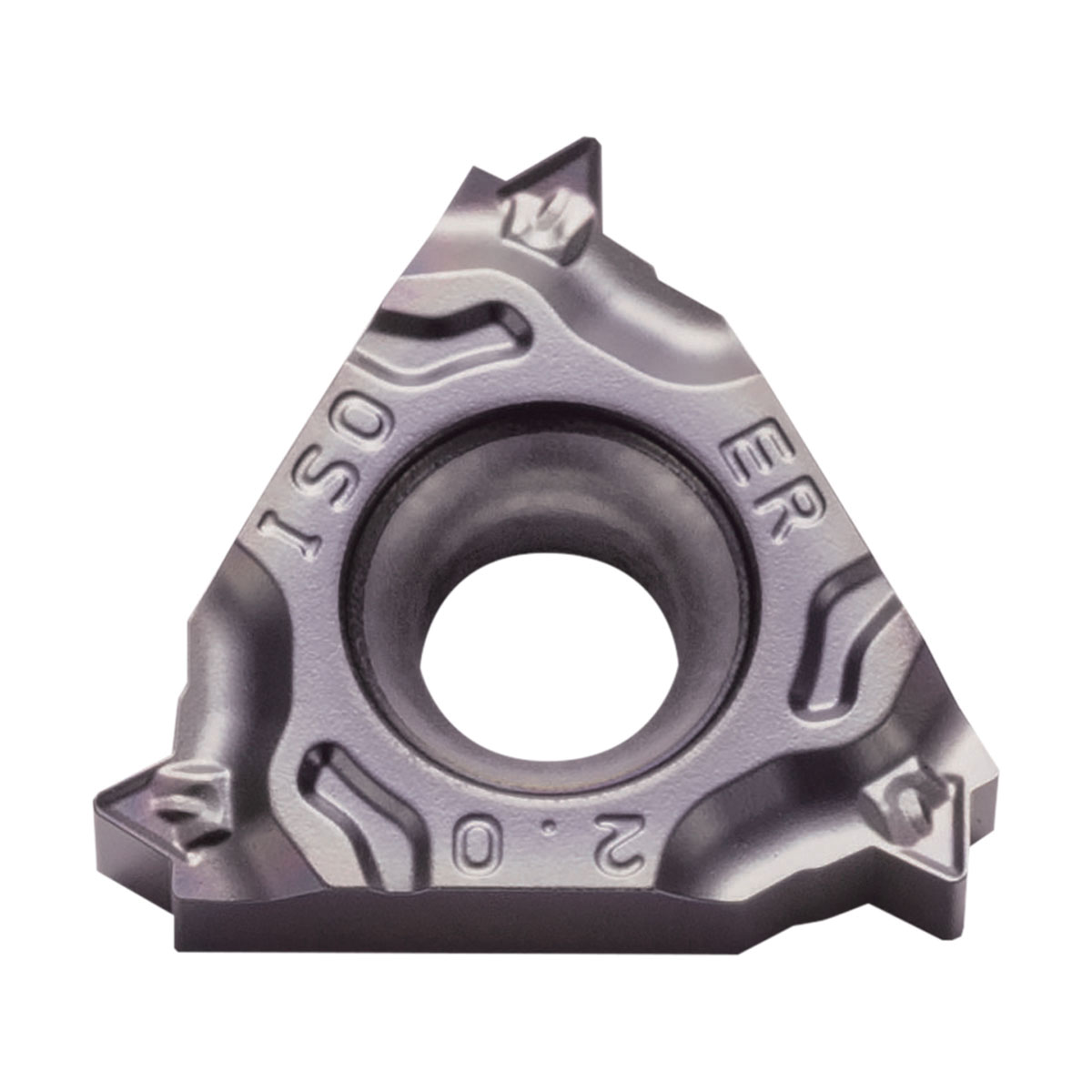

16ER100ISOTQPR1515 THREADING INSERT

16ER100ISOTQPR1515 THREADING INSERT

KYOCTLG19700 TLG19700
15.15 / EA
http://schema.org/OutOfStock
16ER100ISOTQPR1515 THREADING INSERT
  • ANSI Code: 16ER100ISOTQPR1515
  • Chipbreaker: TQ
  • Corner Radius: 0.0047in
  • Country of Origin: US|JP|CN|KR
  • Hand Direction: Right Hand
  • Included Angle: 60°
  • Inscribed Circle: 3/8in
  • Insert Size: #16
  • Insert Style: 16ER
  • ISO Code: 16ER100ISO-TQ
  • Manufacturer Name: KYOCERA Precision Tools
  • Material: Carbide
  • Material Grade: M
  • Pitch: 1mm
  • Series: LDT
  • Surface Treatment: PVD-MEGACOAT NANO
  • Thread Standard: Metric
  • Thread Type: External
  • Type: 3-Cutting Edge
  • Manufacturer Grade: PR1515
  • Thickness: 0.145in
  • Has Attributes: Yes
  • Has Image: Yes
QTY
Add to List
  • Application
  • Item Features
  • Standards
External Threading Applications
  • Insert for external threading with 3-cutting edges
  • 60 deg full profile for metric threads
  • MEGACOAT NANO PVD insert grade for stainless steel
ECCN: EAR99|PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov
