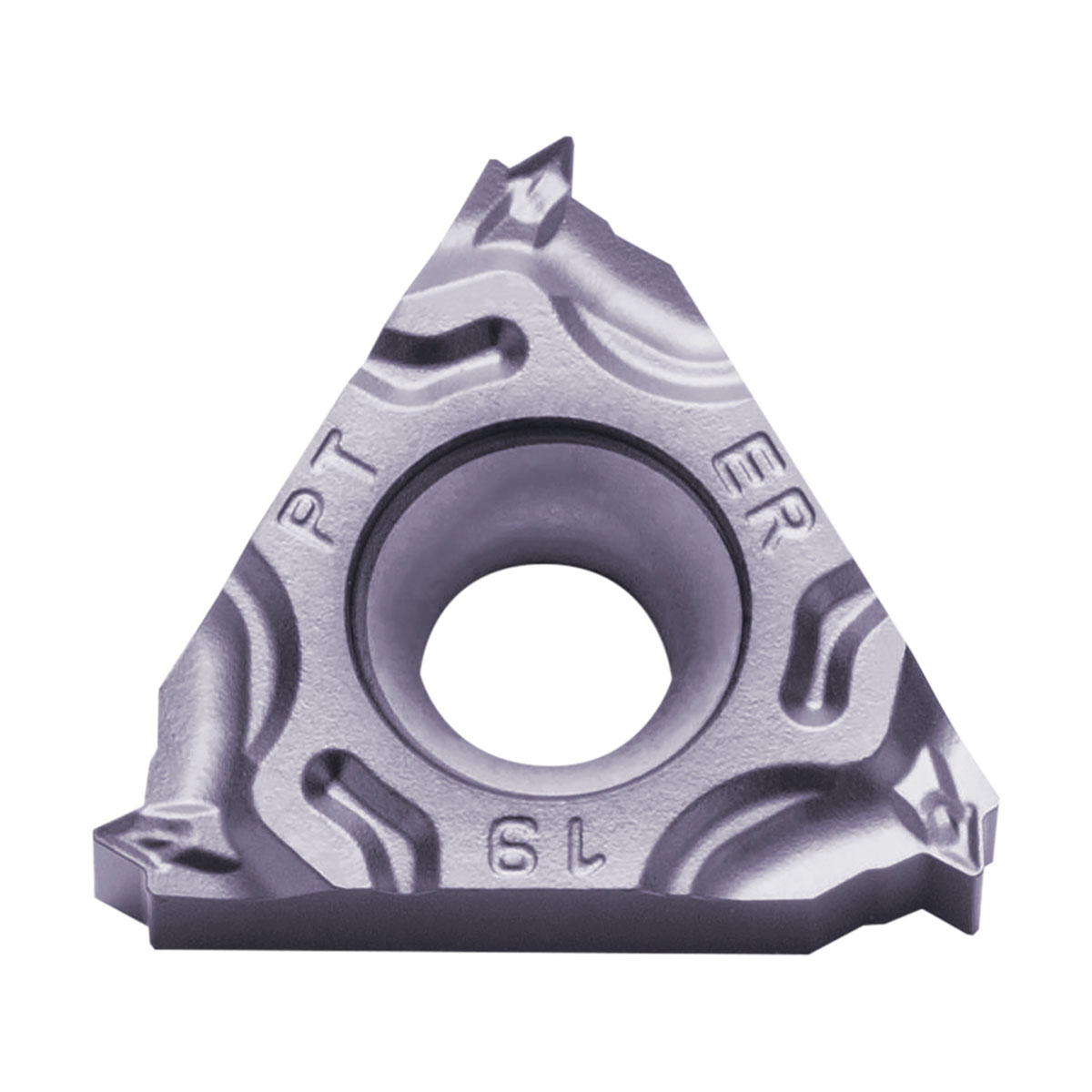

16ER11BSPTTQPR1215 THREADING INSERT

16ER11BSPTTQPR1215 THREADING INSERT

KYOCTKH19718 TKH19718
15.15 / EA
http://schema.org/OutOfStock
16ER11BSPTTQPR1215 THREADING INSERT
  • ANSI Code: 16ER11BSPTTQPR1215
  • Chipbreaker: TQ
  • Corner Radius: 0.0114in
  • Country of Origin: US|JP|CN|KR
  • Hand Direction: Right Hand
  • Included Angle: 55°
  • Inscribed Circle: 3/8in
  • Insert Size: #16
  • Insert Style: 16ER
  • ISO Code: 16ER11BSPT-TQ
  • Manufacturer Name: KYOCERA Precision Tools
  • Material: Carbide
  • Material Grade: P
  • Series: LDT
  • Surface Treatment: PVD-MEGACOAT
  • Thread Standard: Tapered Pipe
  • Thread Type: External
  • Threads Per Inch: 11
  • Type: 3-Cutting Edge
  • Manufacturer Grade: PR1215
  • Thickness: 0.145in
  • Has Attributes: Yes
  • Has Image: Yes
QTY
Add to List
  • Application
  • Item Features
  • Standards
External Threading Applications
  • Insert for external threading with 3-cutting edges
  • 60 deg full profile for tapered pipe threads
  • Superior wear and oxidation-resistant MEGACOAT on micro-grain carbide substrate
  • Superior adhesion-resistant and long tool life for steel and stainless steel cutting
ECCN: EAR99|PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov
