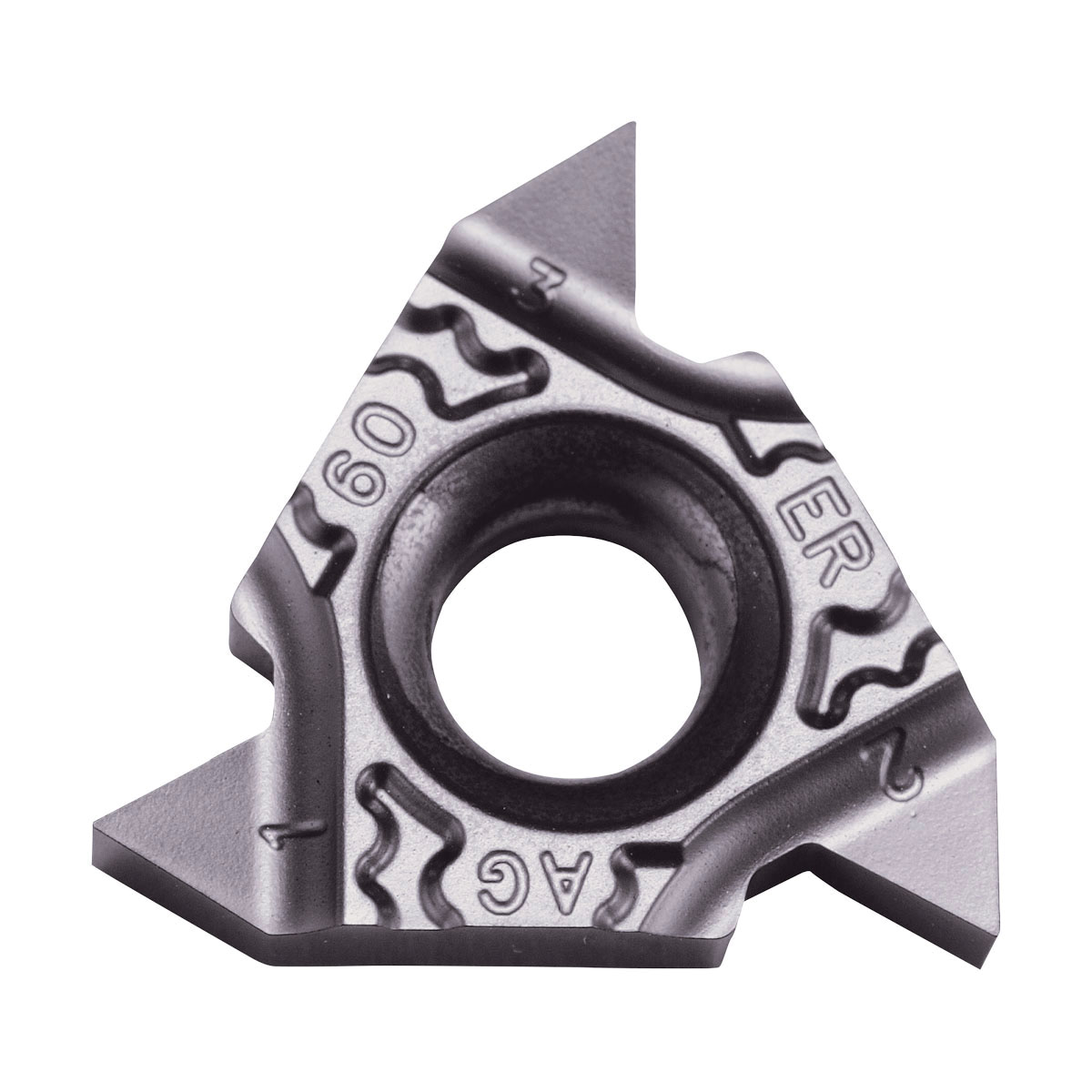

16ERAG60TFPR1215 THREADING INSERT
16ERAG60TFPR1215 THREADING INSERT
KYOCTKH18198
TKH18198
15.15
/ EA
http://schema.org/OutOfStock
/Product/KYOCTKH18198
- ANSI Code: 16ERAG60TFPR1215
- Chipbreaker: TF
- Corner Radius: 0.0024in
- Country of Origin: US|JP|CN|KR
- Hand Direction: Right Hand
- Included Angle: 60°
- Inscribed Circle: 3/8in
- Insert Size: #16
- Insert Style: 16ER
- ISO Code: 16ERAG60-TF
- Manufacturer Name: KYOCERA Precision Tools
- Material: Carbide
- Material Grade: P
- Pitch: 0.5 to 3mm
- Series: LDT
- Surface Treatment: PVD-MEGACOAT
- Thread Standard: Metric, Unified, UNF
- Thread Type: External
- Threads Per Inch: 48 to 8
- Type: 3-Cutting Edge
- Manufacturer Grade: PR1215
- Thickness: 0.145in
- Has Attributes: Yes
- Has Image: Yes
- Application
- Item Features
- Standards
External Threading Applications
- Insert for external threading with 3-cutting edges
- 60 deg partial profile for metric, unified threads
- Superior wear and oxidation-resistant MEGACOAT on micro-grain carbide substrate
- Superior adhesion-resistant and long tool life for steel and stainless steel cutting
ECCN: EAR99|PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov
