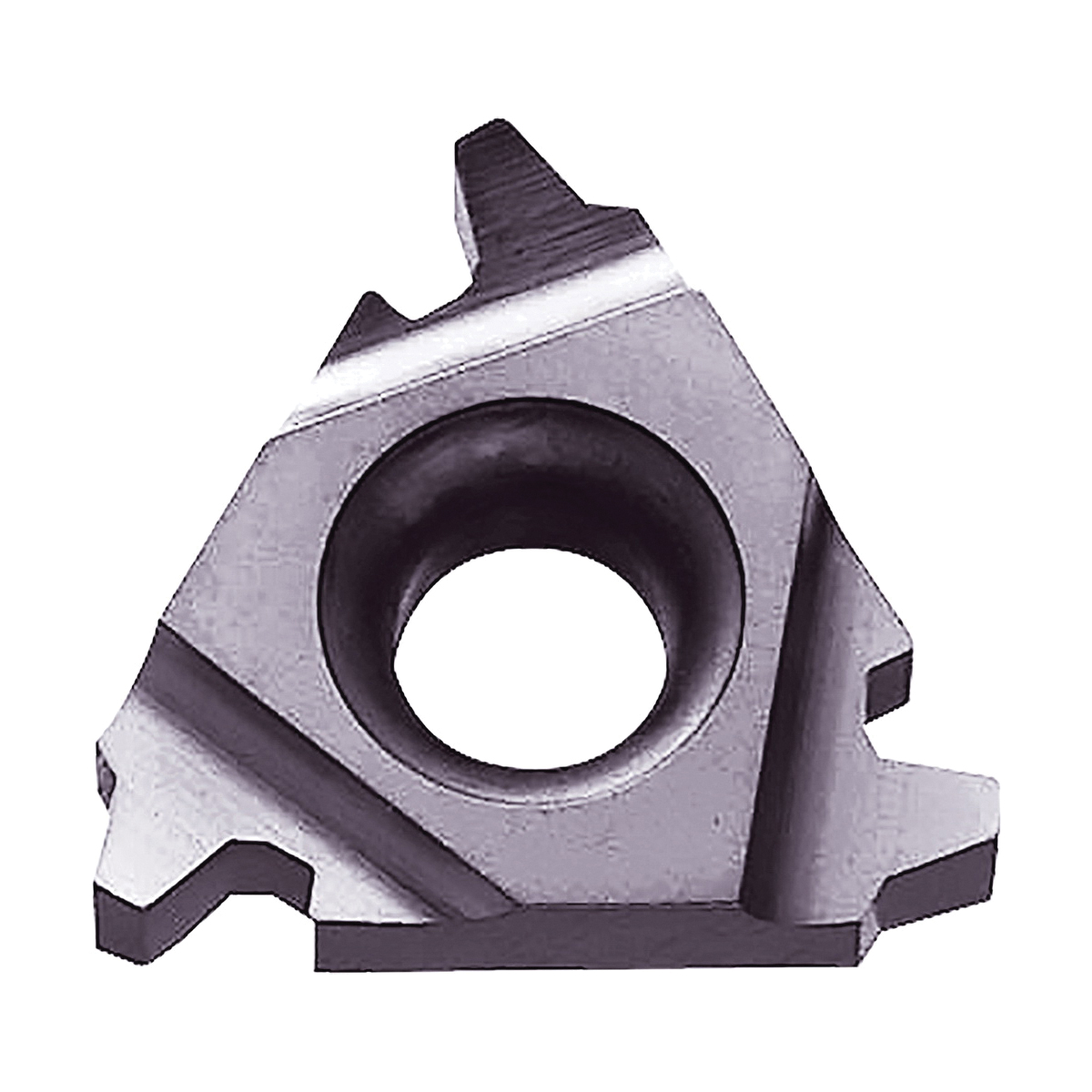

22IR400TRPR1115 THREADING INSERT
22IR400TRPR1115 THREADING INSERT
KYOCTJY18778
TJY18778
0.00
/ EA
http://schema.org/OutOfStock
/Product/KYOCTJY18778
- Corner Radius: 0.0079in
- Hand Direction: Right Hand
- Included Angle: 30°
- Inscribed Circle: 1/2in
- Insert Size: #22
- Insert Style: 22IR
- Material: Carbide
- Material Grade: P, M
- Pitch: 4mm
- Surface Treatment: PVD-TiAlN Coated
- Thread Standard: Trapezoidal
- Thread Type: Internal
- Type: 3-Cutting Edge
- ANSI Code: 22IR400TRPR1115
- Country of Origin: US|JP|CN|KR
- Has Attributes: Yes
- Has Image: Yes
- ISO Code: 22IR400TR
- Manufacturer Grade: PR1115
- Manufacturer Name: KYOCERA Precision Tools
- Thickness: 0.193in
- Application
- Item Features
- Standards
For superior anti-oxidation performance with well balanced wear resistance and toughness in steel and stainless steel and internal threading
- 30 deg partial profile for trapezoidal threads
- Hard TiAlN base PVD coated super micro-grain carbide
ECCN: EAR99
