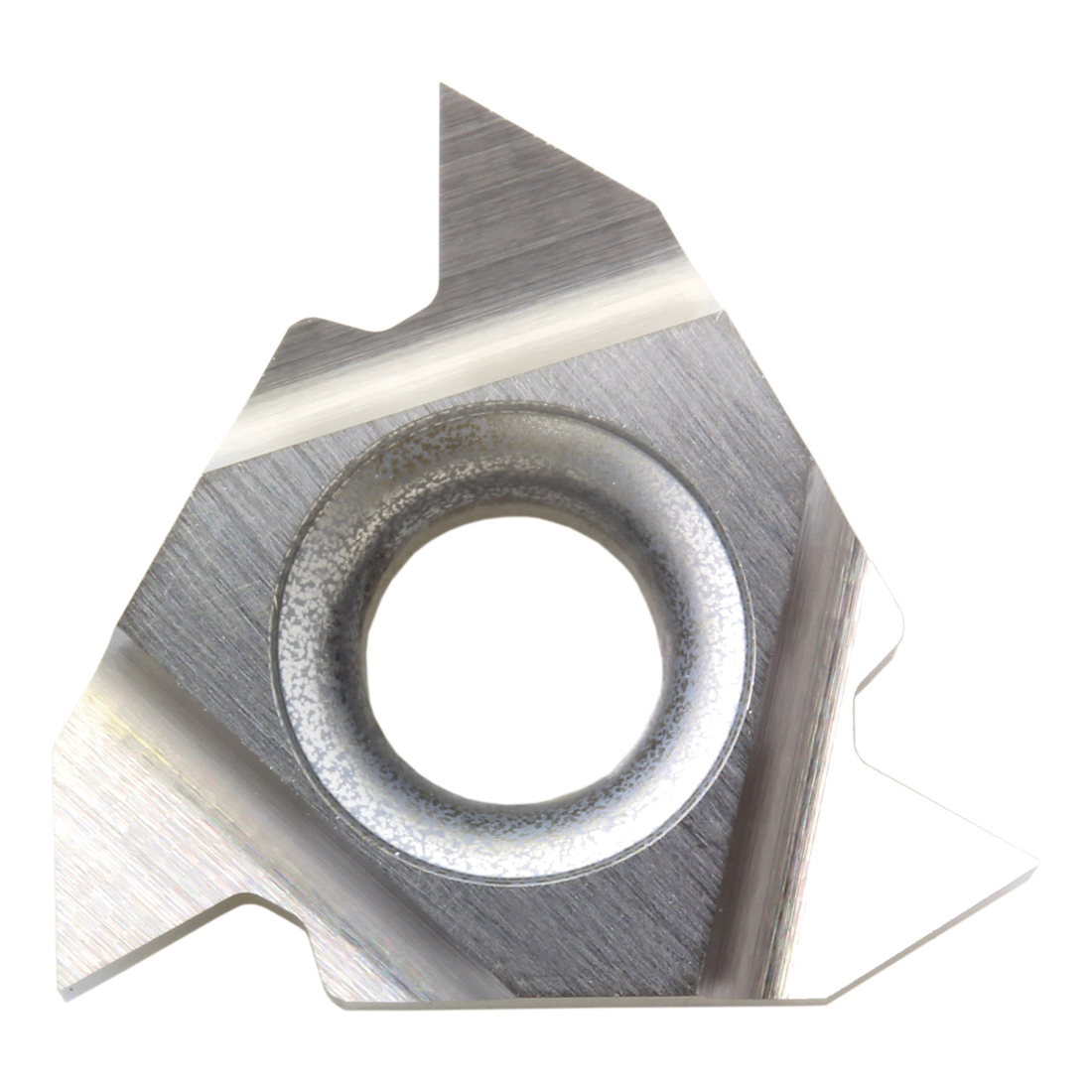

16IRAG60PR1115 THREADING INSERT
16IRAG60PR1115 THREADING INSERT
KYOCTJY18240
TJY18240
27.86
/ EA
http://schema.org/OutOfStock
/Product/KYOCTJY18240
- ANSI Code: 16IRAG60PR1115
- Corner Radius: 0.0008in
- Country of Origin: JP
- Hand Direction: Right Hand
- Included Angle: 60°
- Inscribed Circle: 9.525mm
- Insert Size: 16
- ISO Code: 16IRAG60 PR1115
- Manufacturer Name: KYOCERA Precision Tools
- Material: Carbide
- Material Grade: K, M, N, P
- Pitch: 0.5 to 3mm
- Surface Treatment: PVD-TiAlN Coated
- Thread Standard: Metric/UN
- Thread Type: Internal
- Threads Per Inch: 8 to 48
- Type: Laydown Partial Profile
- Manufacturer Grade: PR1115
- Thickness: 3.68mm
- Has Attributes: Yes
- Has Image: Yes
- Application
- Item Features
Superior Anti-Oxidation Performance with Well Balanced Wear Resistance and Toughness in Steel and Stainless Steel
- Insert for Internal Threading with 3 cutting edges
- 60 deg partial profile for metric (M), unified (UN) threads
- Hard TiAlN base PVD coated super micro-grain carbide
