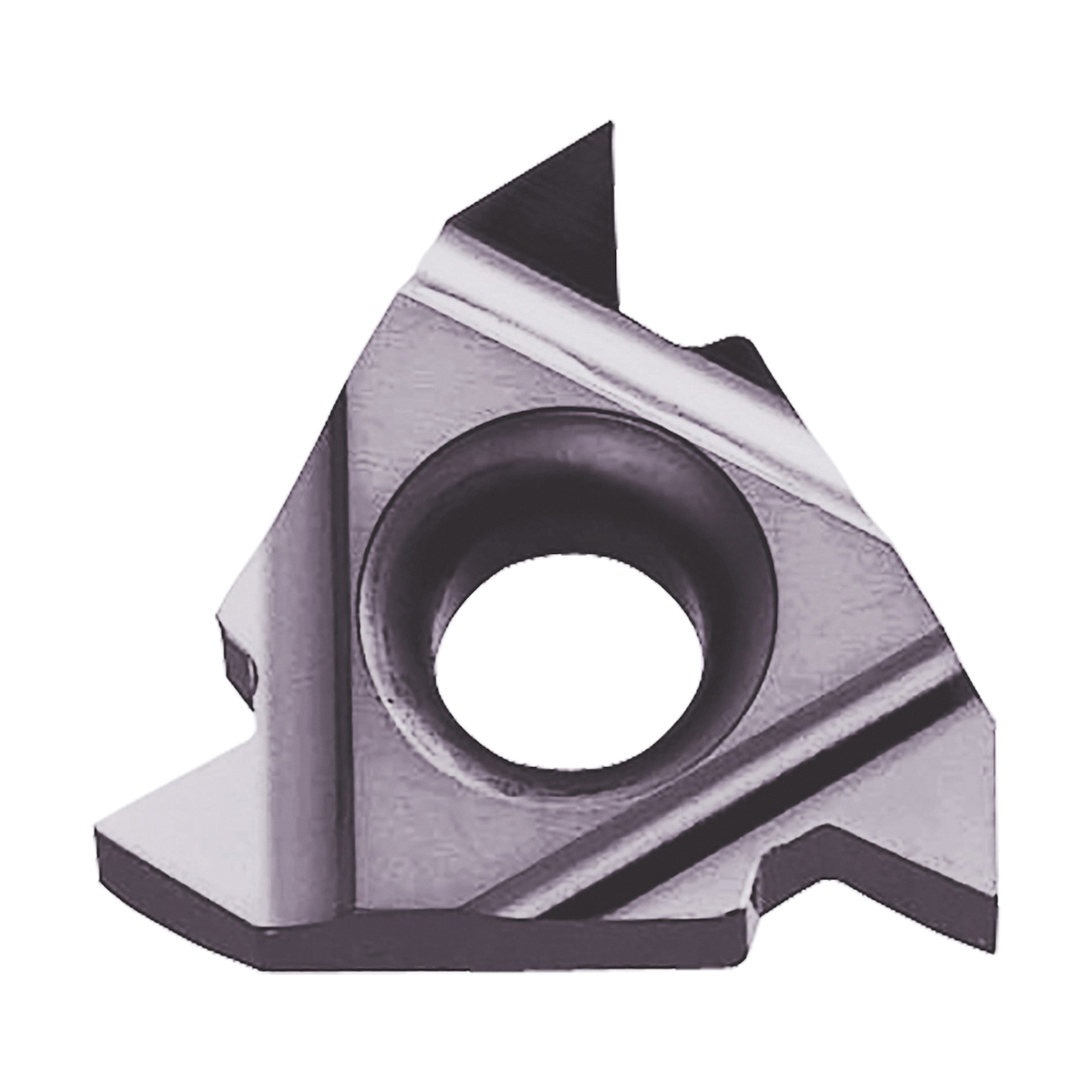

22ERN60PR1115 THREADING INSERT
22ERN60PR1115 THREADING INSERT
KYOCTJY18229
TJY18229
0.00
/ EA
http://schema.org/OutOfStock
/Product/KYOCTJY18229
- Corner Radius: 0.019in
- Hand Direction: Right Hand
- Included Angle: 60°
- Inscribed Circle: 1/2in
- Insert Size: #22
- Insert Style: 22ER
- Material: Carbide
- Material Grade: P, M
- Pitch: 3.5 to 5mm
- Surface Treatment: PVD-TiAlN Coated
- Thread Standard: Metric, Unified, UNF
- Thread Type: External
- Threads Per Inch: 7 to 5
- Type: 3-Cutting Edge
- ANSI Code: 22ERN60PR1115
- Country of Origin: US|JP|CN|KR
- Has Attributes: Yes
- Has Image: Yes
- ISO Code: 22ERN60
- Manufacturer Grade: PR1115
- Manufacturer Name: KYOCERA Precision Tools
- Thickness: 0.193in
- Application
- Item Features
- Standards
For superior anti-oxidation performance with well balanced wear resistance and toughness in steel and stainless steel and external threading
- 60 deg partial profile for metric, unified threads
- Hard TiAlN base PVD coated super micro-grain carbide
