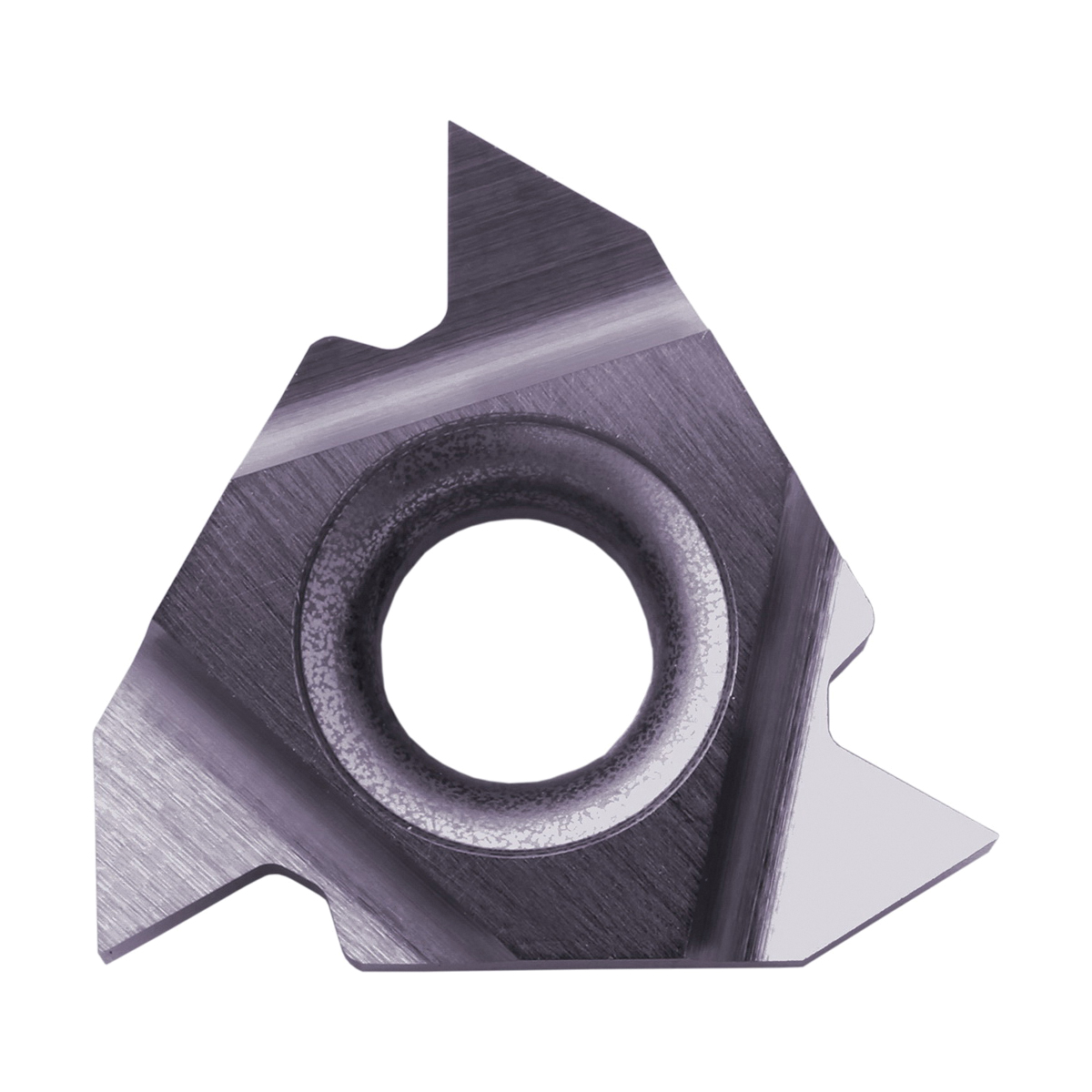

16IRA55PR1115 THREADING INSERT
16IRA55PR1115 THREADING INSERT
KYOCTJY18214
TJY18214
27.86
/ EA
http://schema.org/OutOfStock
/Product/KYOCTJY18214
- ANSI Code: 16IRA55PR1115
- Corner Radius: 0.002in
- Country of Origin: US|JP|CN|KR
- Hand Direction: Right Hand
- Included Angle: 55°
- Inscribed Circle: 3/8in
- Insert Size: #16
- Insert Style: 16IR
- ISO Code: 16IRA55
- Manufacturer Name: KYOCERA Precision Tools
- Material: Carbide
- Material Grade: P, M
- Surface Treatment: PVD-TiAlN Coated
- Thread Standard: Parallel Pipe, Tapered Pipe, Whitworth
- Thread Type: Internal
- Threads Per Inch: 28, 19, 40 to 16
- Type: 3-Cutting Edge
- Manufacturer Grade: PR1115
- Thickness: 0.145in
- Has Attributes: Yes
- Has Image: Yes
- Application
- Item Features
- Standards
For superior anti-oxidation performance with well balanced wear resistance and toughness in steel and stainless steel and internal threading
- 55 deg partial profile for parallel pipe [g(pf)], tapered pipe [RC(PT), (BSPT)], whitworth threads
- Hard TiAlN base PVD coated super micro-grain carbide
ECCN: EAR99
