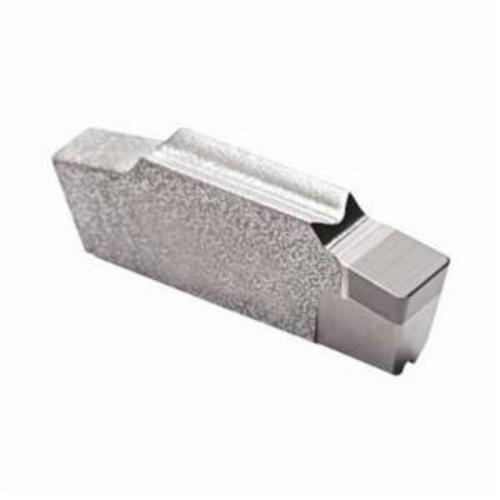

LCGN 160304-0300S-00425-LF CBN010 INSERT

LCGN 160304-0300S-00425-LF CBN010 INSERT

SEC02848184 02848184
157.68 / EA
http://schema.org/OutOfStock
  • Corner Radius: 0.4 mm, 0.4mm
  • Hand Direction: Neutral
  • Insert Size: 1603
  • Insert Style: LCGN
  • Length: 15.9 mm, 15.9mm
  • Material: PCBN
  • Series: MDT
  • Shape: Rectangle
  • Surface Treatment: UNCOATED
  • Type: Single End
  • ANSI Code: LCGN160304-0300S-00 CBN010
  • Applicable Materials: Other Materials
  • Chipbreaker: LF
  • Country of Origin: SE
  • Has Attributes: Yes
  • Has Image: Yes
  • ISO Code: LCGN160304-0300S01025LF CBN010
  • Manufacturer Grade: CBN010
  • Manufacturer Name: Seco Tools
  • Material Grade: H
  • Seat Size: 16
  • Single or Double End: Single
  • Thickness: 4.5 mm, 4.5mm
Polycrystalline cubic boron nitride (PCBN) is a material which is sintered at extremely high pressure and high temperature into a wear-resistant material with properties close to those of diamond. Due to the hot hardness, oxidation resistance and fracture toughness of the material, inserts made of PCBN have excellent edge strength and long tool life when machining hard ferrous materials and pearlitic grey cast iron.
Pack: 1/PK
QTY
