KYOCERA PRECISION TOOLS

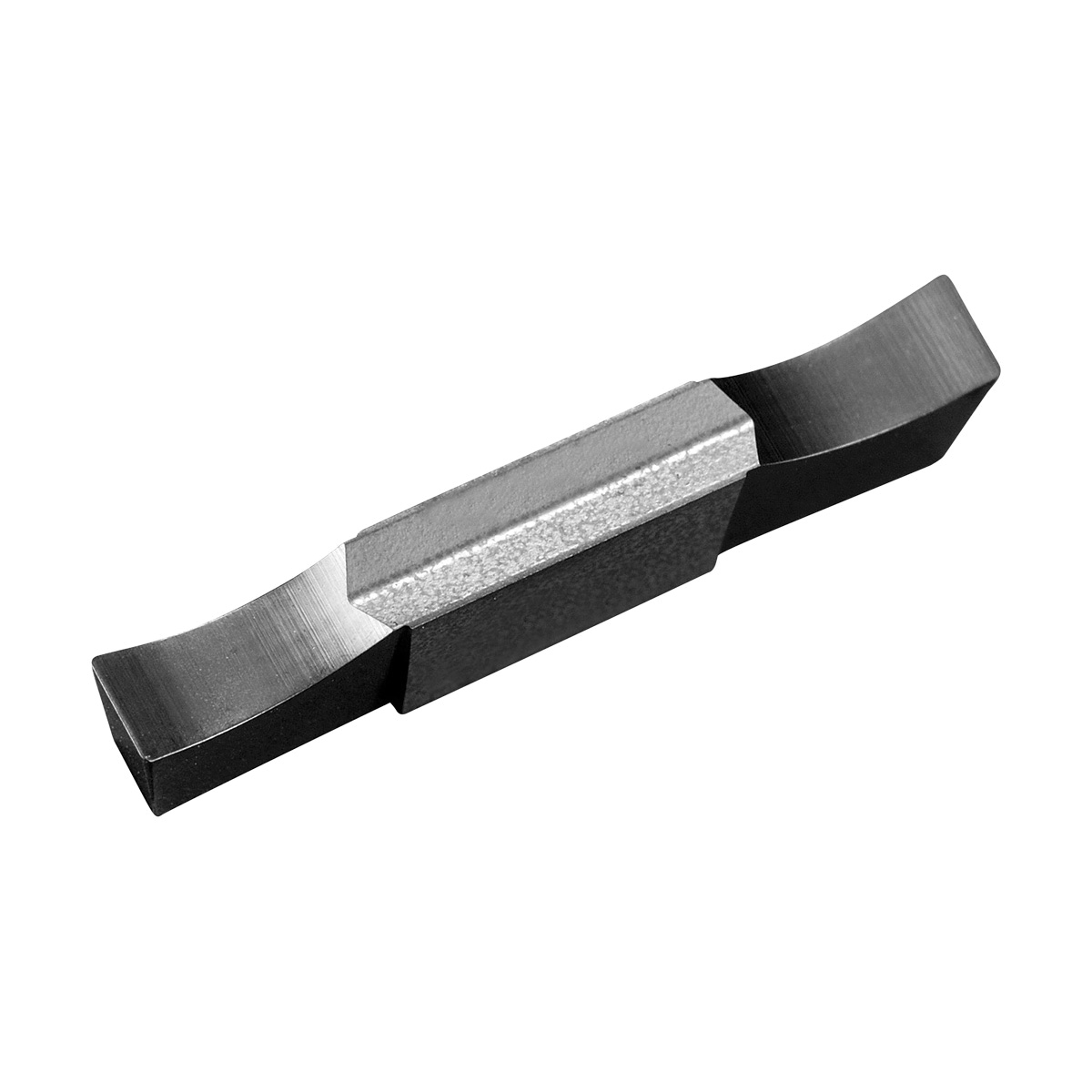

GDG3015N020GSGW15 GROOVING INSERT

GDG3015N020GSGW15 GROOVING INSERT

KYOCTWG40010 TWG40010
27.95 / EA
http://schema.org/OutOfStock
GDG3015N020GSGW15 GROOVING INSERT
  • Corner Radius: 0.15mm
  • Cutting Width: 3mm
  • Hand Direction: Neutral
  • Insert Size: #3015
  • Insert Style: GDG
  • Length: 20mm
  • Material: Carbide
  • Maximum Depth of Cut Decimal Inch: 1.004
  • Maximum Depth of Cut Metric: 25.5
  • Series: KGD
  • Surface Treatment: Co-Coated/Uncoated/WC
  • Type: 2-Cutting Edge
  • ANSI Code: GDG3015N020GSGW15
  • Chipbreaker: GS
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • ISO Code: GDG3015N-020GS
  • Manufacturer Grade: GW15
  • Manufacturer Name: KYOCERA Precision Tools
  • Material Grade: N, S
  • Rake: Positive
  • Thickness: 4.3mm
QTY
Add to List
  • Application
  • Item Features
  • Standards
External Grooving Applications
  • Insert for external grooving
  • Low cutting force/two edge
  • ISO identification symbol K carbide (equivalent to K10), tough micro-grain carbide
  • High wear resistance and toughness for non-ferrous materials and non-metals and titanium alloy
  • Without hole and full radius
