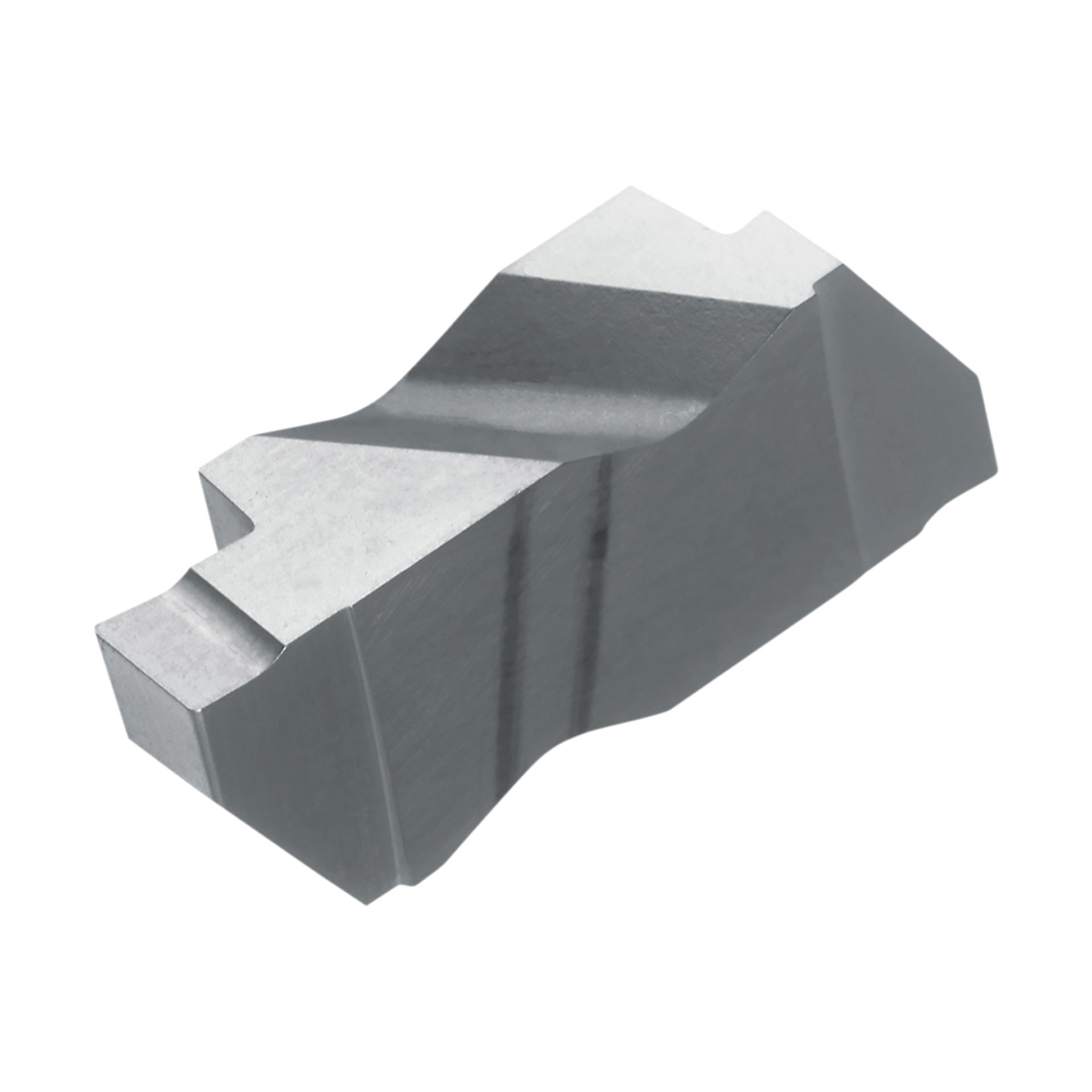

KCGP2047RKW10 GROOVING INSERT

KCGP2047RKW10 GROOVING INSERT

KYOCTWE89050 TWE89050
27.28 / EA
http://schema.org/OutOfStock
KCGP2047RKW10 GROOVING INSERT
  • Corner Radius: 0.0031in
  • Cutting Width: 0.0469in
  • Hand Direction: Right Hand
  • Insert Size: #2047
  • Insert Style: KCGP
  • Length: 0.5402in
  • Material: Carbide
  • Maximum Depth of Cut Decimal Inch: 0.05
  • Series: CERA
  • Surface Treatment: Co-Coated/Uncoated/WC
  • Type: 2-Cutting Edge
  • ANSI Code: KCGP2047RKW10
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • ISO Code: KCGP2047RKW10
  • Lead Angle: 3°
  • Manufacturer Grade: KW10
  • Manufacturer Name: KYOCERA Precision Tools
  • Material Grade: N
  • Rake: Positive
  • Thickness: 0.2188in
QTY
Add to List
  • Application
  • Item Features
  • Standards
External Grooving and Internal Large Diameter Shallow Grooving Applications
  • Insert for external grooving, internal large diameter shallow grooving
  • ISO identification symbol K carbide (K10 relevant)
  • Stable cutting of cast iron, non-ferrous materials, non-metals and titanium alloy
  • Without hole and full radius
