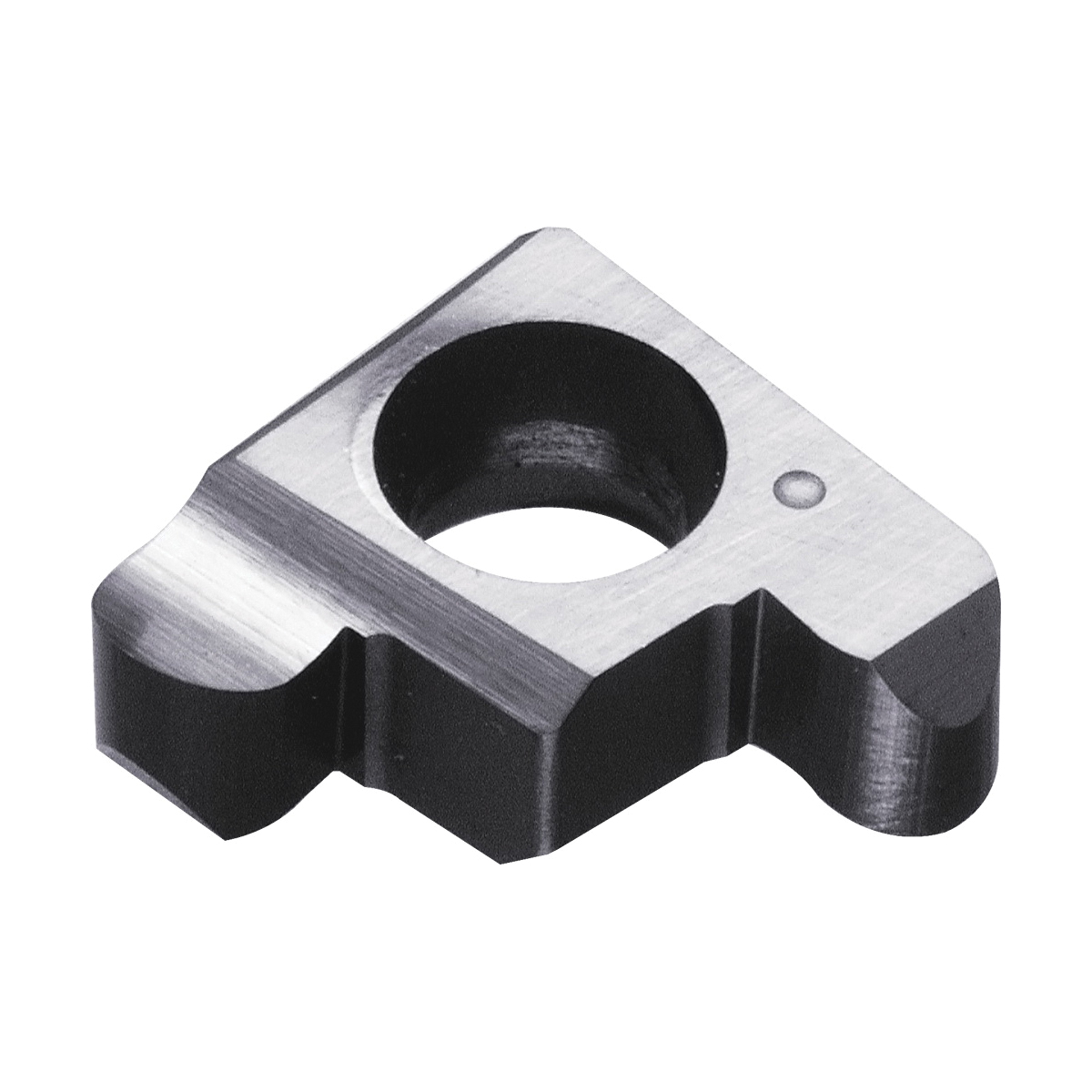

GER100050BRKW10 GROOVING INSERT

GER100050BRKW10 GROOVING INSERT

KYOCTWE16802 TWE16802
37.61 / EA
http://schema.org/OutOfStock
GER100050BRKW10 GROOVING INSERT
  • Corner Radius: 0.5mm
  • Cutting Width: 1mm
  • Hand Direction: Right Hand
  • Insert Size: #100050
  • Insert Style: GE
  • Length: 8.2mm
  • Material: Carbide
  • Maximum Depth of Cut Decimal Inch: 0.087
  • Maximum Depth of Cut Metric: 2.2
  • Series: SIGE
  • Surface Treatment: UNCOATED
  • Type: 2-Cutting Edge Metric
  • ANSI Code: GER100050BRKW10
  • Chipbreaker: BR
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • Hole Diameter: 2.7mm
  • ISO Code: GER100-050BR
  • Manufacturer Grade: KW10
  • Manufacturer Name: KYOCERA Precision Tools
  • Material Grade: N
  • Rake: Positive
  • Thickness: 3.18mm
  • Width: 8.46mm
QTY
Add to List
  • Application
  • Item Features
  • Standards
For stable cutting of cast iron, non-ferrous materials, non-metals and titanium alloys and internal grooving
  • Full radius
ECCN: EAR99
