GMM 3020150R KW10 GROOVING INSERT

GMM 3020150R KW10 GROOVING INSERT

KYOCTWE13010 TWE13010
28.90 / EA
http://schema.org/OutOfStock

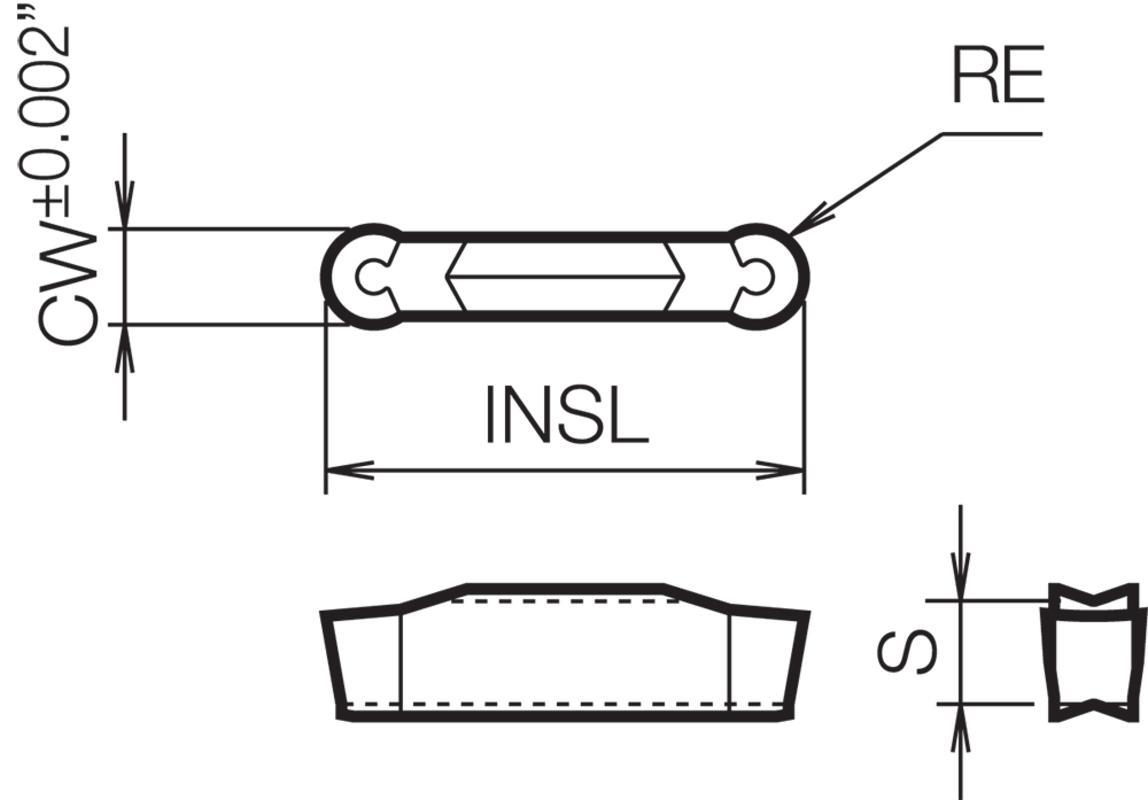

GMM 3020150R KW10 GROOVING INSERT
  • Corner Radius: 1.5 mm
  • Cutting Width: 3 mm
  • Hand Direction: Neutral
  • Insert Size: #3020150
  • Insert Style: GMM
  • Length: 20 mm
  • Material: Carbide
  • Maximum Depth of Cut Decimal Inch: 0.787
  • Maximum Depth of Cut Metric: 20.0
  • Series: KGM
  • Surface Treatment: Co-Coated/Uncoated/WC
  • Type: 2-Cutting Edge
  • ANSI Code: GMM3020150RKW10
  • Chipbreaker: R
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • ISO Code: GMM3020-150R
  • Manufacturer Grade: KW10
  • Manufacturer Name: KYOCERA Precision Tools
  • Material Grade: N
  • Rake: Positive
  • Thickness: 4.3 mm
QTY
Add to List
  • Application
  • Item Features
  • Standards
Copying Applications
  • Insert for full-R, copying
  • Sharp-cutting oriented/precision class/full-R/copying
  • ISO identification symbol K carbide (K10 relevant)
  • Stable cutting of cast iron, non-ferrous materials, non-metals and titanium alloy
  • Without hole
