GMM1520MTKW10 GROOVING INSERT

GMM1520MTKW10 GROOVING INSERT

KYOCTWE12710 TWE12710
18.67 / EA
http://schema.org/OutOfStock

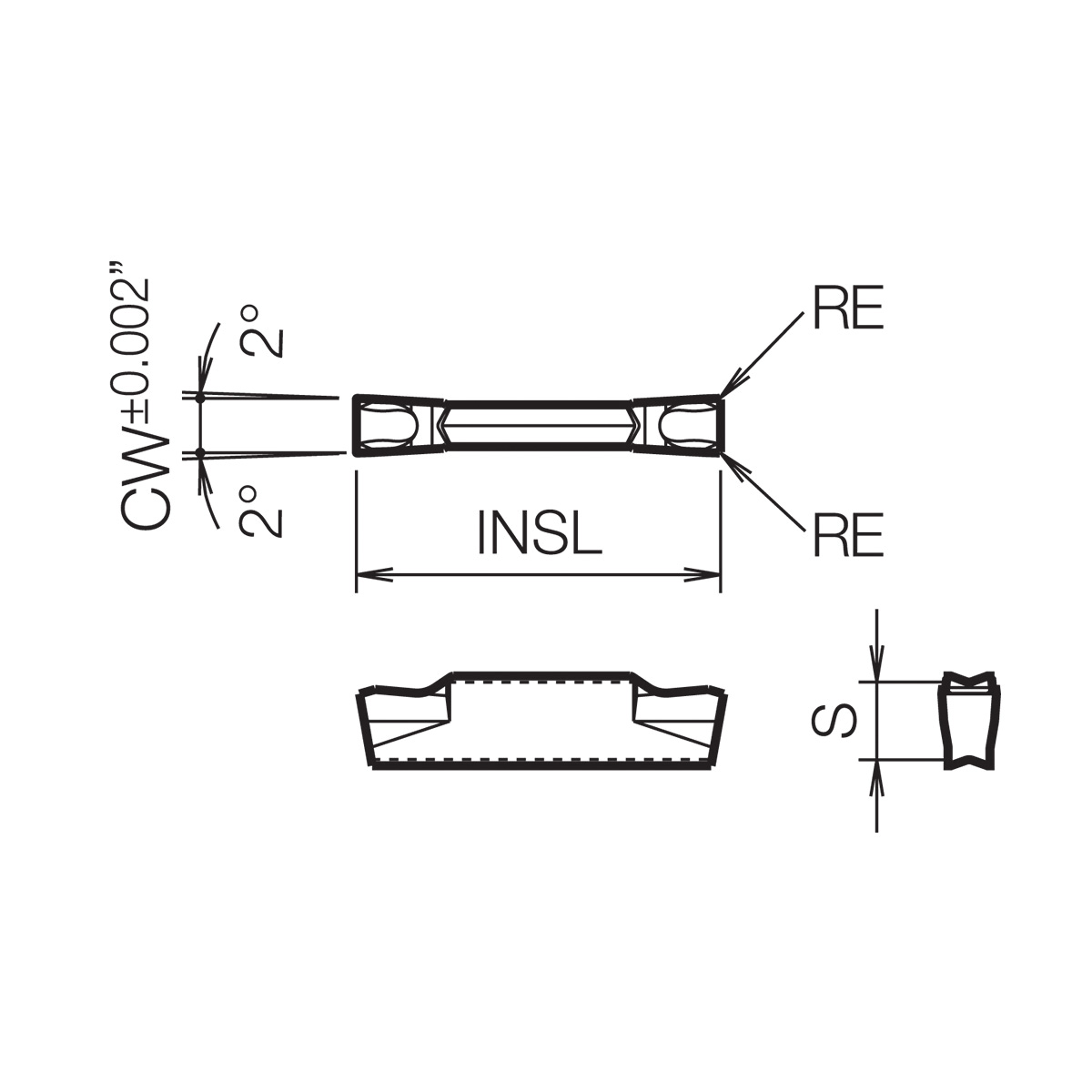

GMM1520MTKW10 GROOVING INSERT
  • Cutting Width: 1.5mm
  • Hand Direction: Neutral
  • Insert Size: #1520
  • Insert Style: GMM
  • Length: 20mm
  • Material: Carbide
  • Maximum Depth of Cut Decimal Inch: 0.453
  • Maximum Depth of Cut Fractional Inch: 29/64
  • Maximum Depth of Cut Metric: 11.5
  • Series: KGM
  • Surface Treatment: Co-Coated/Uncoated/WC
  • Type: 2-Cutting Edge
  • ANSI Code: GMM1520MTKW10
  • Chipbreaker: MT
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • ISO Code: GMM1520-MT
  • Manufacturer Grade: KW10
  • Manufacturer Name: KYOCERA Precision Tools
  • Material Grade: N
  • Rake: Positive
  • Thickness: 4.3mm
QTY
Add to List
  • Application
  • Item Features
  • Standards
Cut-Off, External Deep Grooving and External Grooving Applications
  • Insert for deep grooving, cut-off
  • Deep grooving/cut-off/sharp cutting oriented
  • ISO identification symbol K carbide (K10 relevant)
  • Stable cutting of cast iron, non-ferrous materials, non-metals and titanium alloy
  • Without hole and full radius
