KYOCERA PRECISION TOOLS

GMN22KW10 GROOVING INSERT

GMN22KW10 GROOVING INSERT

KYOCTWE12500 TWE12500
14.93 / EA
http://schema.org/OutOfStock

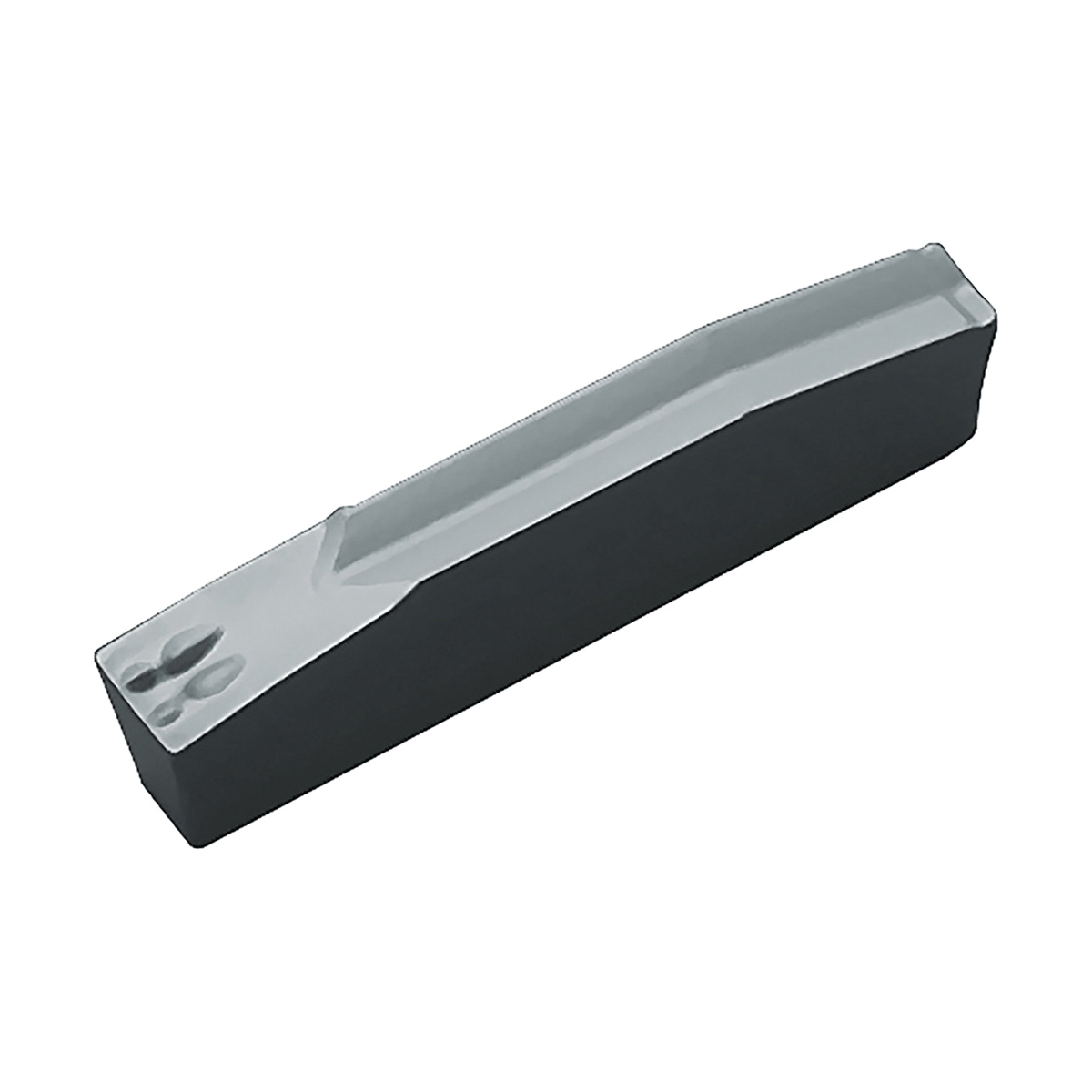

GMN22KW10 GROOVING INSERT
  • Corner Radius: 0.17mm
  • Cutting Width: 2.2mm
  • Hand Direction: Neutral
  • Insert Size: #22
  • Insert Style: GMN
  • Length: 20mm
  • Material: Carbide
  • Series: KGM
  • Surface Treatment: UNCOATED
  • Type: 1-Cutting Metric
  • ANSI Code: GMN22KW10
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • ISO Code: GMN2.2
  • Manufacturer Grade: KW10
  • Manufacturer Name: KYOCERA Precision Tools
  • Material Grade: N
  • Rake: Positive
  • Thickness: 4.3mm
QTY
Add to List
  • Application
  • Item Features
  • Standards
For stable cutting of cast iron, non-ferrous materials, non-metals and titanium alloys, deep grooving and cut-off
  • Without hole and full radius
ECCN: EAR99
