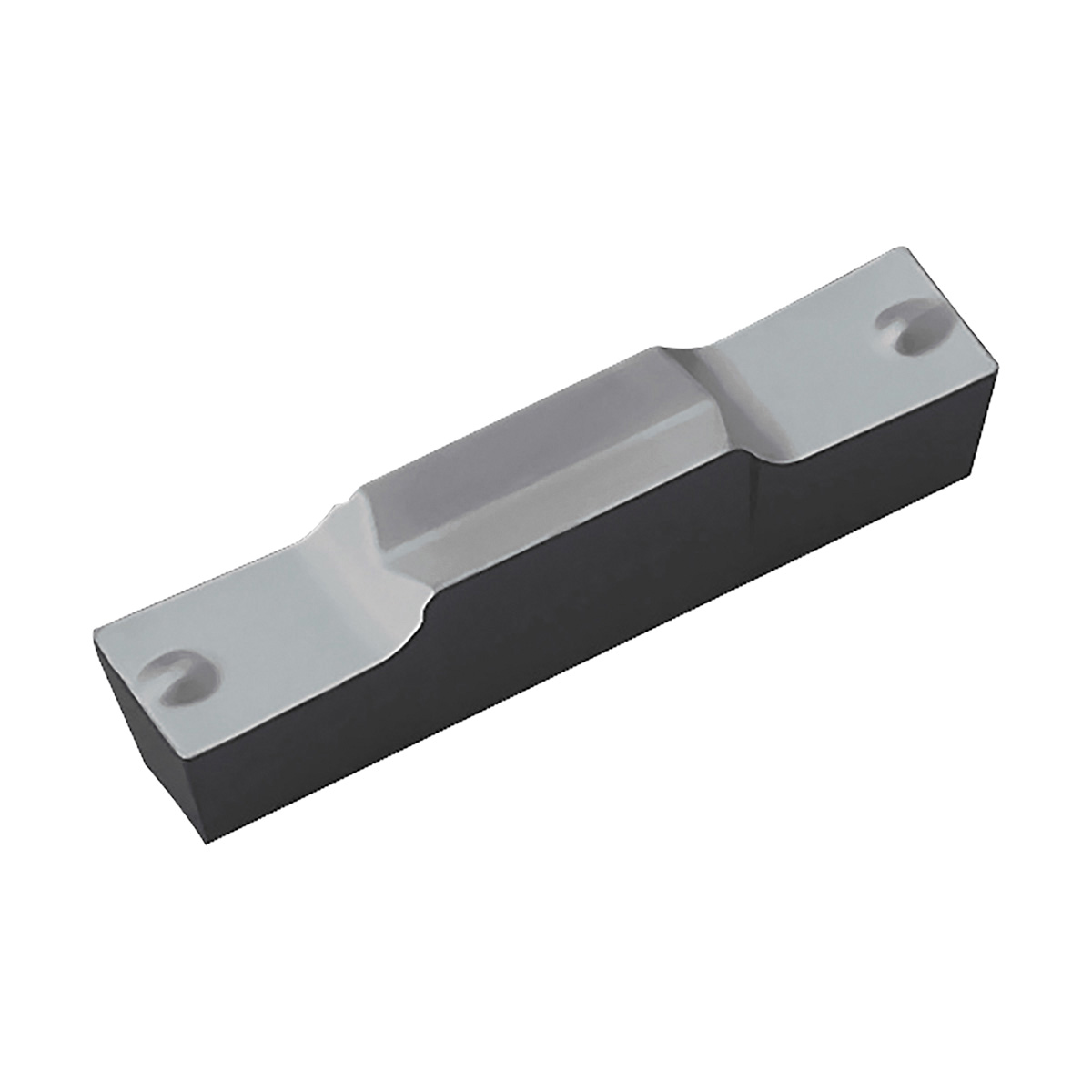

GMG3020020MSKW10 GROOVING INSERT

GMG3020020MSKW10 GROOVING INSERT

KYOCTWE12001 TWE12001
32.39 / EA
http://schema.org/OutOfStock
GMG3020020MSKW10 GROOVING INSERT
  • Corner Radius: 0.2mm
  • Cutting Width: 3mm
  • Hand Direction: Neutral
  • Insert Size: #3020020
  • Insert Style: GMG
  • Length: 20mm
  • Material: Carbide
  • Maximum Depth of Cut Decimal Inch: 0.787
  • Maximum Depth of Cut Metric: 20.0
  • Series: KGM
  • Surface Treatment: Co-Coated/Uncoated/WC
  • Type: 2-Cutting Edge
  • ANSI Code: GMG3020020MSKW10
  • Chipbreaker: MS
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • ISO Code: GMG3020-020MS
  • Manufacturer Grade: KW10
  • Manufacturer Name: KYOCERA Precision Tools
  • Material Grade: N
  • Rake: Positive
  • Thickness: 4.3mm
QTY
Add to List
  • Application
  • Item Features
  • Standards
External Grooving and Traversing Applications
  • Insert for external grooving, traversing
  • Sharp cutting oriented/precision class
  • ISO identification symbol K carbide (K10 relevant)
  • Stable cutting of cast iron, non-ferrous materials, non-metals and titanium alloy
  • Without hole and full radius
